Pro Comp 4″ Lift Kit with PRO-X Shocks – K5079T

Pro Comp Suspension

Shop Toyota Tundra Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 2007 to 2021 Toyota Tundra 2WD and 4WD models
  • 4-inch stage 1 lift with PRO-X front and rear shocks
  • Clearance for 35-inch tires
  • Extended steering knuckles that keep factory steering geometry

Description

Overview

The Pro Comp 4-inch Lift Kit with PRO-X Shocks, part number EXPK5079T (kit K5079T), is a stage 1 suspension lift for 2007 to 2021 Toyota Tundra trucks in 2WD and 4WD. It fits the 1794 Edition, Base, Limited, Nightshade, Platinum, SR, SR5, TRD Pro and Trail versions.

The kit installs without cutting the factory cross members and gives clearance for 35-inch tires. Extended steering knuckles keep the rack and pinion steering unit in its factory location, which preserves the factory steering geometry. It provides 4 inches of stage 1 lift, with a lift height range of 4 to 5.5 inches.

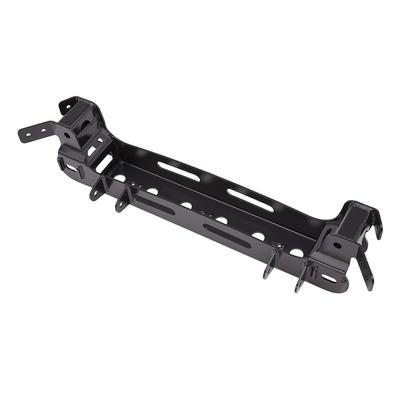

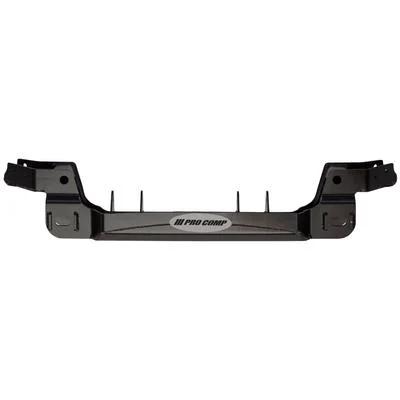

The front lower crossmembers are one-piece and CNC laser cut. The knuckles and crossmembers work together for durability and easier installation. The suspension keeps CV axle angles in range and allows full compression and extension without binding ball joints.

The system is fully compatible with the factory VSC electronic stability control. The rear uses a block or spacer with a block and U-bolt component and add-a-leafs, and PRO-X shocks are included at the front and the rear.

Key features

  • 4-inch stage 1 suspension lift
  • Extended steering knuckles that keep the rack and pinion in the factory location
  • One-piece laser-cut lower crossmembers
  • Clearance for 35-inch tires
  • Compatible with the factory VSC stability control

Checking steering and tire clearance

Steering geometry changes whenever the ride height rises, which is why a lift with extended knuckles is designed to keep the steering components in their factory positions. Even so, any lift changes the way the front end moves, so a tie rod, drag link and steering damper are worth inspecting once the truck is driving normally again.

Tire size matters more than many buyers expect. Larger tires add weight and rotating mass, which can strain the front axle, wheel bearings and the steering gear. Wheel offset and backspacing decide whether a wheel rubs at full lock, so test the turn radius on a level surface before loading the truck for a trip.

Stability control and braking systems are sensitive to changes in wheel and tire size. If warning lights come on or the truck feels unsettled in corners, check the tire pressure and the alignment first, then look at the wheel speed sensors.

  • Check alignment after the first week of driving
  • Inspect ball joints and tie rods for play
  • Test turning at full lock for rubbing
  • Keep tire pressures matched on all four corners

Specifications

Brand Pro Comp Suspension
Part number EXPK5079T
Kit code K5079T
Suspension type Lift kit, stage 1
Lift height 4 inches stage 1; range 4 to 5.5 inches
Tire size 35 inches
Rear lift method Block or spacer
Rear lift component Block and U-bolt with add-a-leafs
Shocks included Yes
Front shocks PRO-X
Rear shocks PRO-X
Fit type Direct fit

Vehicle fitment

It fits the 2007 to 2021 Toyota Tundra across the 1794 Edition, Base, Limited, Nightshade, Platinum, SR, SR5, TRD Pro and Trail versions.

The list does not include the 2006 and earlier Tundra or the 2022 and newer models. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because the kit uses extended steering knuckles and keeps the factory rack and pinion in place, the alignment should be checked after installation.

What’s included

The 4-inch stage 1 lift kit with PRO-X front and rear shocks, the extended steering knuckles, and the one-piece lower crossmembers.

SKU: EXPK5079T Categories: ,

Fitment

VehicleYearsTrims
Toyota Tundra2007–20211794 Edition, Base, Limited, Nightshade, Platinum, SR, SR5, TRD Pro, Trail

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Pro Comp EXPK5079T fit a 2012 Toyota Tundra?

Yes. It fits the 2007 to 2021 Toyota Tundra, and 2012 falls within that range. Verify the cab size and 2WD or 4WD drive before ordering.

Will it work with the factory stability control?

Yes. It is fully compatible with the factory VSC electronic stability control system. Keep the stability control working normally after the install by checking that its warning lights stay off during a test drive.

What tire size does it allow?

It provides clearance for 35-inch tires. The stage 1 lift range is 4 to 5.5 inches, and the kit is set up for the 35-inch tire size. Confirm tire fit against your wheel offset and fender trim before ordering.

How often should steering parts be checked after a lift?

Check them at the first alignment and again every time the tires are rotated. Look for play in the tie rods and ball joints, and for uneven tire wear, which can show that the front end needs attention.
