Overview

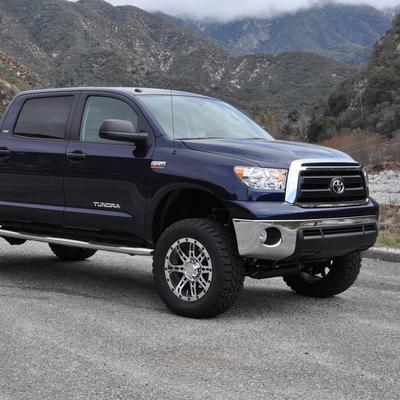

The Pro Comp EXPK5085BX, also written K5085BX, is a 7-inch Stage 2 suspension lift kit with PRO-VST front coilovers and PRO-VST rear shocks for the 2007–2021 Toyota Tundra. It is a direct fit for those trucks, and the rear uses a block and U-bolt.
Stage 2 is the step up from the Stage 1 7-inch kit for the same truck, and this version swaps in PRO-VST coilovers at the front. The rear uses a block and U-bolt, and the lift height range is 6 to 7 inches.
Key features
- 7-inch Stage 2 lift
- PRO-VST front coilovers
- PRO-VST rear shocks
- Block and U-bolt rear lift
- Direct fit to the listed 2007–2021 Tundra trucks
Coilovers and alignment work
Coilovers combine the spring and the shock into one unit, which changes how the front suspension loads and rebounds compared with separate springs. That makes the front ride height and camber more sensitive to adjustment, so the alignment should be set after the install is complete. Plan on the steering geometry being checked as a separate step.
Rear shocks and the block and U-bolt rear set work together with the front, so inspect every mount after the first few trail runs. Check the coilover top mounts and lower bolts for torque, and watch for any shock that binds at full compression. Replace worn bushings before they change the ride.
- Check coilover top mount torque
- Inspect the steering damper if fitted
- Confirm steering stops clear the new geometry
- Recheck driveline angles at the new height
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | EXPK5085BX (K5085BX) |
| Kit type | Lift kit, complete suspension system |
| Kit stage | Stage 2 |
| Lift height | 7 inches, with a lift height range of 6–7 inches |
| Shock series | PRO-VST |
| Rear shocks | PRO-VST |
| Rear lift method | Block and spacer |
| Rear lift component | Block and U-bolt |
| Shocks included | Yes |
| Fitment type | Direct fit |
Vehicle fitment
Trims covered are 1794 Edition, Base, Limited, Nightshade, Platinum, SR, SR5, TRD Pro and Trail, all within the 2007–2021 Tundra run.
Only 2007–2021 Tundra trucks are listed. The 2022 and newer Tundra is not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Front coilovers change the spring and steering geometry, so an alignment is needed after the install. Check the driveline angles at the new height as well.
What’s included

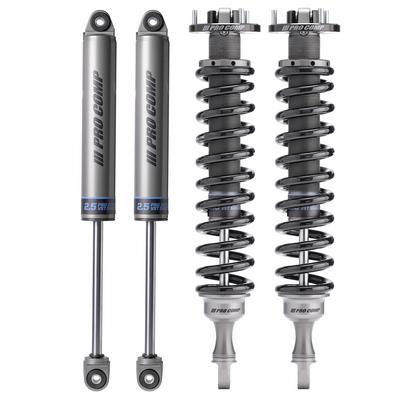

PRO-VST front coilovers and PRO-VST rear shocks come with the kit, along with the block and U-bolt rear set. Check the package contents against your installation before starting.
