Overview
The ReadyLift 69-5475 is a 4-inch SST lift kit for the Toyota Tundra. It covers 2007 to 2021 Tundra models in the 1794 Edition, Base, Limited, Nightshade, Platinum, SR, SR5 and Trail versions. It is designed as a full-size Toyota counterpart to ReadyLift’s other 4-inch kits, and it does not fit 2015 to 2017 Tundra TRD Pro trucks equipped with Bilstein TRD Pro shocks.
The kit uses DOM steel tube upper control arms with extended duty ball joints and TCT urethane bushings. The arms keep the factory ball joint angles and provide strut and coil-over clearance through droop. Powder coated steel top mount strut extensions give 4.0 inches of front lift. Differential drop spacers and skid plate spacers come with new hardware, and rear shock extensions and front bump stop extensions are included.
Key features
- 4.0 inches of front lift from powder coated steel top mount strut extensions
- DOM steel tube upper control arms
- Extended duty ball joints
- TCT urethane bushings
- Differential drop spacers and skid plate spacers with new hardware
- Rear shock extensions and front bump stop extensions
- OEM-style 2.0-inch rear lift blocks with U-bolts
Front lift on a full-size Toyota
Front lifts that use top mount strut extensions raise the body relative to the wheel, so the geometry at the top of the strut changes. Control arm angles, bump stop position and steering feel should be checked after installation. Many owners also rebalance headlight aim and check the steering stops after a front lift of this kind.
A skid plate spacer raises the skid plate, which keeps clearance from rocks but moves the lower mounting points. Check the bolts and fasteners at the first service and after rough trail use. Powder coated finishes resist surface damage, but nicks should be touched up so exposed steel does not corrode.
- Check bump stop extensions for clearance at full compression
- Inspect skid plate bolts after rough trail use
- Touch up powder coat nicks on exposed steel
Specifications
| Brand | ReadyLift |
|---|---|
| Part number | RDY69-5475 |
| Front lift | 4.0 inches |
| Rear lift | 2.0 inches, OEM-style block |
| Control arms | DOM steel tube, extended duty ball joints |
| Bushings | TCT urethane |
| Tire size | 35 inches |
| Fitment type | Direct fit |
Vehicle fitment
It is a direct fit for 2007 to 2021 Toyota Tundra models in the 1794 Edition, Base, Limited, Nightshade, Platinum, SR, SR5 and Trail versions.
The kit does not fit 2015 to 2017 Tundra TRD Pro trucks equipped with Bilstein TRD Pro shocks. Confirm your vehicle’s year, model, trim and shock type before ordering.
Installation notes
The upper control arms, the top mount strut extensions and the differential drop spacers change suspension geometry at the front, so a wheel alignment should be checked after installation. The rear shock extensions require the driveline angles to be checked.
What’s included

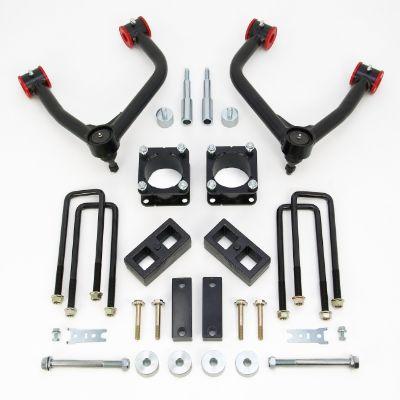

The kit includes the DOM steel tube upper control arms with extended duty ball joints and TCT urethane bushings, the powder coated steel top mount strut extensions, the differential drop spacers, the skid plate spacers, the rear shock extensions, the front bump stop extensions and the OEM-style 2.0-inch rear blocks with U-bolts.
