Overview
The ReadyLift 69-2524 is a 2.5-inch front and 2.0-inch rear SST Lift Kit for 2011 to 2016 Ford F-250 and F-350 Super Duty 4WD trucks in the King Ranch, Lariat, Platinum, XL and XLT versions. It gives a slight rake for towing or hauling and fits wheel and tire combinations up to 35 inches while keeping factory ride and drivability.
The rear uses ReadyLift’s OEM-style 4.0-inch cast iron block, which replaces the factory block and gives near-factory rake with the lifted stance. The kit is a step up from the F-250 leveling kit, and it contains the same leveling parts: 2.5-inch powder coated steel coil spring spacers, sound isolators, shock extensions, sway bar frame mount spacers, bump stop extensions, a carrier bearing spacer and a track bar relocation bracket.
Key features
- 2.5 inches of front lift and 2.0 inches of rear lift
- 4.0-inch OEM-style cast iron rear block
- Powder coated steel coil spring spacers with sound isolators
- Shock extensions that let the factory front shocks stay in use
- Sway bar mount spacers for the 2011 to 2016 front suspension
- Carrier bearing spacer for driveshaft angle adjustment
- Track bar relocation bracket
Towing with a raised rear
A rear block lift changes how the truck sits under load, so the rear springs and the driveline both need attention. A slight rake helps keep the front from feeling light, but heavier loads compress the springs, so the setup should be checked with the trailer or payload the truck normally carries. Tow ratings and hitch placement should also be reviewed after the height changes.
Because the rear is raised with a block, the driveshaft angle is the part most likely to need adjusting. A carrier bearing spacer can help set that angle, but the u-joints should be inspected for wear before tow season begins. Track bar geometry also changes, so a relocation bracket and a fresh alignment help keep the truck tracking straight.
- Check driveshaft u-joints for play and vibration
- Recheck driveline angles after the first tow trip
- Inspect shock mounts and bump stops for wear
- Confirm payload limits after the height change
Specifications
| Brand | ReadyLift |
|---|---|
| Part number | RDY69-2524 |
| Front lift | 2.5 inches |
| Rear lift | 2.0 inches |
| Rear block | 4.0-inch cast iron, OEM style |
| Tire clearance | Up to 35 inches |
| Driveshaft | Built for trucks with a one-piece driveshaft |
| Fitment type | Direct fit |
Vehicle fitment
It fits 2011 to 2016 Ford F-250 and F-350 Super Duty 4WD models in the King Ranch, Lariat, Platinum, XL and XLT versions.
Fitment covers F-250 trucks with a one-piece driveshaft and F-350 models. Confirm the model and driveshaft type before ordering, and confirm your year and trim as well.
Installation notes
The kit requires no cutting or drilling. The carrier bearing spacer sets the driveshaft angle, and the driveline should be checked after the rear block is installed. Get an alignment after installation as well.

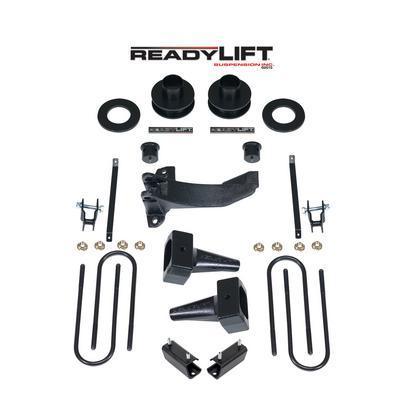

What’s included
The kit includes the 4.0-inch rear blocks, 2.5-inch coil spring spacers, sound isolators, shock extensions, sway bar frame mount spacers, bump stop extensions, the carrier bearing spacer and the track bar relocation bracket.
