ReadyLift 2” Front 2.5” Rear SST Lift – 69-21210

ReadyLift

$362.02In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 3:30 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 2-inch front and about 2.5-inch rear billet aluminum spacer lift for 2021–2026 Ford Bronco
  • Built for trucks without the Sasquatch package
  • Bolt-on with no cutting, with extra rear rake for cargo
  • Part number 69-21210

Description

Overview

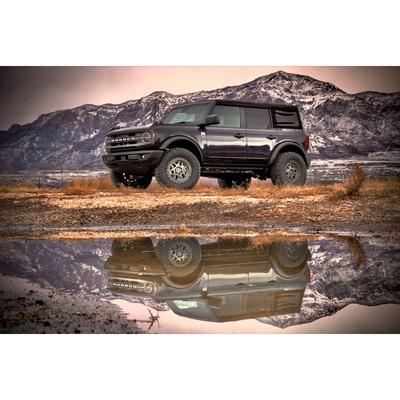

The ReadyLift 69-21210 is a 2-inch front and about 2.5-inch rear (when lightly loaded) spacer lift for the 2021–2026 Ford Bronco Base, Big Bend, Black Diamond and Outer Banks. It is designed for Broncos that carry heavy cargo, such as rooftop tents, tools, refrigerators, oversized spare tires and steel bumpers. The rear spacers add extra height and rake to make up for that weight.

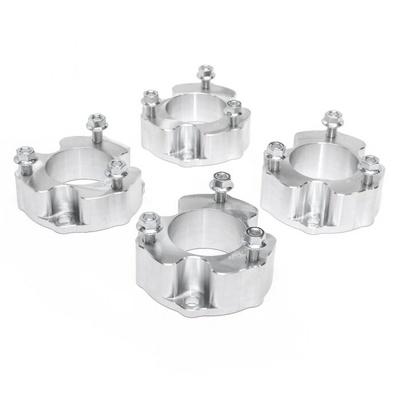

The kit uses CNC machined 6061-T6 billet aluminum top mount spacers at the front and rear. The spacers keep the factory ride and handling and avoid ball joint or tie rod bind, and the suspension geometry is designed to work through the full range of travel. The kit is not for Broncos with the Sasquatch package, including the Badlands, Wildtrak and First Edition models. It installs as a complete bolt-on with no cutting or modification.

Key features

  • 2 inches of front lift from billet aluminum top mount spacers
  • Extra rear lift and rake for heavy cargo
  • Designed to avoid ball joint and tie rod bind
  • Completely bolt-on, with no cutting or modification
  • Factory shocks reused

Heavy cargo and alignment

A spacer lift raises the body without changing the suspension links, so the factory geometry stays close to stock. Heavy loads such as rooftop tents, tools and spare tires add weight at the rear, which is why the rear spacers add extra height and rake. Loading the truck evenly across the bed and keeping heavy items low helps the front and rear settle at similar heights.

After installation, the front height change should be followed by an alignment, since spacers alter caster and camber settings. Check the top mount hardware after the first drives, because loaded trucks can settle the fasteners. Tires that rub during turns or at full compression usually point to a tire size or trimming issue.

  • Schedule an alignment after the lift is installed
  • Re-check spacer hardware torque after the first few drives
  • Confirm tire clearance at full steering lock before loading the truck

Specifications

Brand ReadyLift
Part number 69-21210
Type Suspension lift kit, spacer
Front lift 2 inches
Rear lift About 2.5 inches when lightly loaded
Lift height range 0 to 3.5 inches
Spacer material 6061-T6 billet aluminum, CNC machined
Shocks Factory shocks reused; no shocks included
Fitment type Direct fit

Vehicle fitment

The kit fits the 2021–2026 Ford Bronco Base, Big Bend, Black Diamond and Outer Banks.

The kit does not fit Broncos with the Sasquatch package, including the Badlands, Wildtrak and First Edition models. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

No cutting is required, but the front lift changes alignment, so have the alignment checked after installation. ReadyLift says 305/70R17 tires on 17-inch wheels with +18 offset fit without modification, and that 35×12.50 tires need minor trimming and possibly removal of the front crash bar.

What’s included

Front and rear billet aluminum top mount spacers and the bolt-on hardware for the front and rear spacers.

Not included: Shocks. The kit reuses the factory shocks.

SKU: RDY69-21210 Categories: ,

Fitment

VehicleYearsTrims
Ford Bronco2021–2026Base, Big Bend, Black Diamond, Outer Banks

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the 69-21210 fit a Bronco Badlands?

No. The kit does not fit Sasquatch package models, which include the Badlands, Wildtrak and First Edition. It fits the Base, Big Bend, Black Diamond and Outer Banks trims.

What is the biggest tire it takes without modifications?

305/70R17 tires on 17-inch wheels with +18 offset fit without modification. 35x12.50 tires need minor trimming, and the front crash bar may need to be removed.

Are shocks included?

No. Shocks are not included. The kit reuses the factory shocks, so the existing shock absorbers stay on the truck.

Should the wheel bearings and CV joints be checked after a spacer lift?

Yes. A higher ride height changes joint angles, so inspect the wheel bearings and CV joints during routine service after the lift is installed. Look for vibration, noise or clicking on turns and address any symptoms promptly.
