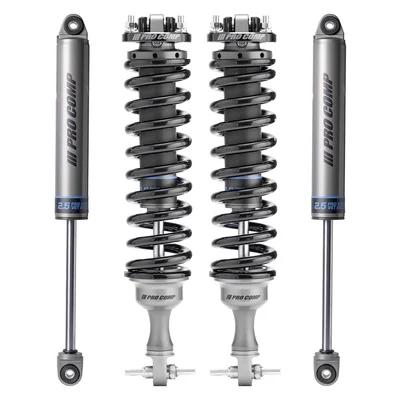

Pro Comp 1.5-2.5″ Performance System with PRO-VST Coilovers and Rear Shocks – K5100BX

Pro Comp Suspension

Shop Toyota Tundra Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Lift kit for late-model trucks, lift height range 0 to 3.5 inches
  • Includes PRO-VST front and rear shocks
  • Fits 2007–2021 Toyota Tundra in several trims
  • Listed tire size 35 inches
  • Explorer low center of gravity suspension system

Description

Overview

The Pro Comp K5100BX is a 1.5–2.5 inch performance suspension system for the 2007–2021 Toyota Tundra in several trims. It is an Explorer low center of gravity suspension system with a lift height range of 0 to 3.5 inches and a 35-inch tire size.

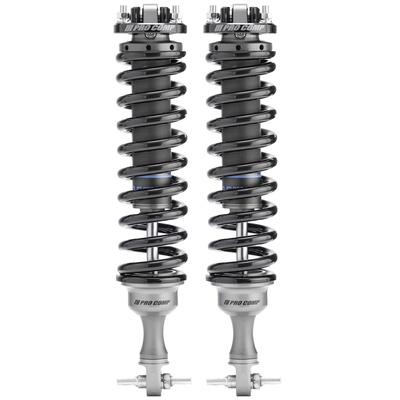

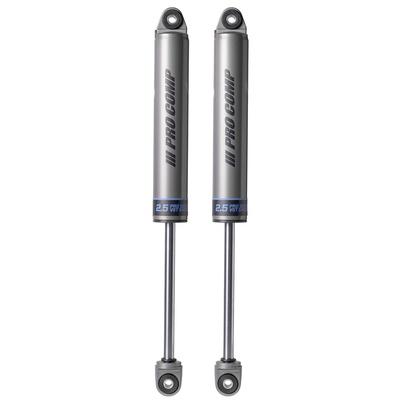

The kit is built for owners who want to run 35-inch tires while keeping OE ride quality for everyday driving. It includes PRO-VST coilovers at the front and PRO-VST rear shocks.

It suits a truck driven on the road during the week and off-road on weekends. Confirm coilover and shock lengths against your truck before ordering, since the shocks carry only the PRO-VST series name.

Key features

  • Lift height range 0 to 3.5 inches
  • PRO-VST front and rear shocks included
  • Listed tire size 35 inches
  • Lift kit suspension type
  • Direct fit to the listed Tundra trims

Choosing a lift height

A lift height choice shapes how the truck handles, how much room the tires have, and how much work goes into the install. Start by measuring the current height at each corner so you know where the truck sits in the range before you buy. Trucks that carry gear or tow often settle lower under load, so measure with the bed as you normally use it.

Coilover and shock length matter just as much as the lift itself. Shocks that are too short can bind at full droop, while long ones can be overextended on rebound. Brake lines, sway bar links and driveshaft angle are often affected by a height change, so inspect them after the first drive. Pair the new suspension with an alignment and a check of the steering components, and keep the first drives gentle while you recheck the fasteners after the first few trips.

  • Measure ride height at all four corners
  • Check brake lines and sway bar links after the first drive
  • Recheck torque on fasteners after the first few trips

Specifications

Brand Pro Comp Suspension
Part number K5100BX
Suspension type Lift kit
Shock series PRO-VST
Front shocks PRO-VST
Rear shocks PRO-VST
Shocks included Yes
Lift height range 0 to 3.5 in
Tire size 35 in

Vehicle fitment

It is a direct fit for the 2007–2021 Toyota Tundra in the 1794 Edition, Base, Limited, Nightshade, Platinum, SR, SR5 and Trail trims.

Tundra model years before 2007 and after 2021 are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A lift kit changes suspension geometry, so plan a wheel alignment after installation and check the driveline angles. Measure the installed lift height against the 0 to 3.5 inch range in the specifications before ordering.

What’s included

Front and rear PRO-VST shocks are included. Check the other kit components, such as springs, brackets and hardware, against your installation before starting.

Not included: tires and wheels.

SKU: EXPK5100BX Categories: ,

Fitment

VehicleYearsTrims
Toyota Tundra2007–20211794 Edition, Base, Limited, Nightshade, Platinum, SR, SR5, Trail

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What lift height does the K5100BX kit cover?

The kit covers a lift height range of 0 to 3.5 inches. Measure your truck's current height before ordering so you know where it falls in that range.

Are shocks included with the K5100BX?

Yes. The specifications list PRO-VST front and rear shocks as included with the kit, so separate shocks are not needed for the install.

Does the K5100BX fit a 2010 Toyota Tundra?

Yes. The 2007–2021 Toyota Tundra in several trims is covered, so a 2010 model year is within the fitment range. Confirm fit for your vehicle's year, model and trim before ordering.

How do I know when shocks need replacing?

Look for oil residue on the shock body, a bouncy ride after bumps, or uneven tire wear. A shock that knocks at the mounts or leaks should be replaced rather than repaired. Replace shocks in pairs on the same axle so the truck handles evenly.
