ReadyLift 7 Inch Lift Kit with Rear Bilstein Shocks – 44-2576

ReadyLift

Shop Ford F-150 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 7-inch front and 5-inch rear lift for 2015–2020 Ford F-150 4WD trucks
  • Patent-pending offset steel strut extensions and 5-inch OEM-style rear blocks
  • Cast nodular iron steering knuckles and integrated differential drop bracket
  • Rear Bilstein shocks with factory front shocks reused

Description

Overview

The ReadyLift 44-2576 is a 7-inch front and 5.0-inch rear lift kit with Bilstein rear shocks for Ford F-150 4WD trucks. It covers 2015 to 2020 trucks in the King Ranch, Lariat, Limited, Platinum, Police Responder, Raptor, SSV, XL and XLT versions. The kit is designed to give lift while keeping the factory ride and steering geometry.

The front uses precision laser cut and CNC formed sub frame assemblies, heavy duty cast nodular iron steering knuckles, and an integrated differential drop bracket for correct CV axle angles. The 7-inch front lift comes from offset steel strut extensions that ReadyLift describes as patent pending. The rear uses 5-inch tall OEM-style blocks, which ReadyLift says give 4.0 inches of total rear lift once installed. A steering extension and a rack correction system are included to keep steering working as the factory design intends.

Key features

  • 7.0 inches of front lift
  • 5.0-inch OEM-style rear blocks
  • Laser cut and CNC formed sub frame assemblies
  • Cast nodular iron steering knuckles
  • Integrated differential drop bracket
  • Offset steel strut extensions
  • Steering extension and rack correction system
  • Rear Bilstein 5100 Series shocks

Before you buy

A sub frame lift with offset strut extensions changes the front geometry, so the wheels, tie rods and steering shaft all need a fresh look after installation. The steering extension and rack correction system are there to keep steering working as intended, but tie rod ends and the steering stabilizer should still be inspected for play before the first drive. Good steering feel depends on a clean alignment.

If the frame attachment section requires welding, plan that step before the kit goes on the truck. Welding near fuel and brake lines needs care, and the work is best done by someone experienced with frame welding. Check the differential drop bracket bolts, the CV axle angles and the rear blocks after the first few drives, since new angles can settle under load.

  • Inspect tie rod ends and steering play after the first drive

Specifications

Brand ReadyLift
Part number RDY44-2576
Front lift 7.0 inches
Rear lift 4.0 inches total, with 5-inch blocks
Lift height range 6 to 7 inches
Rear shocks Bilstein 5100 Series
Front shocks Factory, reused
Steering knuckles Cast nodular iron
Drive type 4WD
Fitment type Direct fit

Vehicle fitment

It fits 2015 to 2020 Ford F-150 models in the King Ranch, Lariat, Limited, Platinum, Police Responder, Raptor, SSV, XL and XLT versions.

One subframe section attaches to the frame and requires welding, so plan for that step. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

One subframe section requires welding to the frame. The steering extension and rack correction system change steering geometry, so an alignment should be checked after installation. The differential drop bracket sets the CV axle angles, which should be checked on the truck.

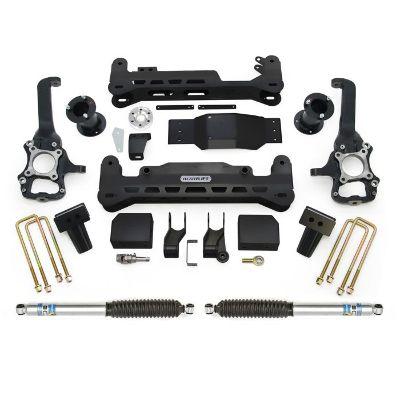

What’s included

The kit includes the sub frame assemblies, the cast nodular iron knuckles, the integrated differential drop bracket, the offset steel strut extensions, the steering extension, the rack correction system, the 5-inch OEM-style rear blocks and the rear Bilstein shocks.

SKU: RDY44-2576 Categories: ,

Fitment

VehicleYearsTrims
Ford F-1502015–2020King Ranch, Lariat, Limited, Platinum, Police Responder, Raptor, SSV, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does this kit need welding?

Welding is required for one section that attaches to the frame. Confirm the welding step and your vehicle's fitment before ordering, since the install plan depends on it.

How much lift does the F-150 kit give?

The offset steel strut extensions provide the 7-inch front lift. The 5-inch OEM-style rear blocks give a total of 4.0 inches of rear lift once installed.

Does the kit fit a 2020 F-150?

The fitment covers 2015 to 2020 F-150 models, so a 2020 truck is included. Confirm the 2020 fit against the year, trim and configuration of your truck before ordering.

Do the factory front shocks need replacing with this kit?

The factory front shocks are reused with this kit, so their condition matters. Inspect them for leaks and worn mounts, and replace any that are worn, since a new lift can expose weak shocks.

Why is a steering check needed after a lift?

Lifting changes the steering linkage angles, and the steering extension and rack correction system are designed to keep steering working as intended. Inspect tie rod ends, the steering stabilizer and play in the steering wheel after installation.
