Overview
The ReadyLift 69-3416 is a 4-inch SST lift kit for 2014 to 2018 Chevrolet Silverado 1500 and GMC Sierra 1500 4WD trucks. It fits the Silverado 1500 Custom, High Country, LS, LT, LTZ, SSV and WT versions, and the Sierra 1500 Base, Denali, SLE and SLT versions. The kit combines features of the 4-inch design for 2007 to 2013 trucks with changes made for the 2014 suspension.
ReadyLift bought one of the first 2014 Silverado and Sierra 4WD trucks so it could engineer the kit against the new suspension. The 2014 4WD suspension has an electric steering rack, a different differential mounting system and an aluminum control arm design with a different spindle. The kit uses machined billet circular spacers for the differential drop, which ReadyLift says gives the right amount of drop without interfering with the rear-mounted components.
Key features
- 4 inches of lift for the 2014 to 2018 4WD 1500 trucks
- Machined billet circular differential drop spacers
- Designed for the electric steering rack and aluminum control arm design
- Built for the 2014 4WD suspension geometry
- Tires listed at 33 inches
Differential drop and driveline
A differential drop lowers the differential housing so the driveshaft angle stays within its normal range after a lift. Without it, the pinion angle can drift and the U-joints take extra strain. Billet spacers are a solid way to hold that geometry, since they do not compress or sag the way some rubber parts can.
Driveline work often goes with the lift itself. Check the driveshaft length, the U-joint condition and the carrier bearing after installation, and make sure the rear brake lines have enough slack at full droop. Vibration at highway speed is usually the first sign that the angles need another look.
- Measure pinion and driveshaft angles after installation
- Inspect U-joints for play at each service
- Check brake line slack at full droop
- Look for leaks at the differential after the first drives
Specifications
| Brand | ReadyLift |
|---|---|
| Part number | RDY69-3416 |
| Lift kit size | 4 inches |
| Differential drop | Billet circular spacers |
| Rear lift method | Block and spacer |
| Tire size | 33 inches |
| Shocks | None included |
| Fitment type | Direct fit |
Vehicle fitment
It fits 2014 to 2018 Chevrolet Silverado 1500 models in the Custom, High Country, LS, LT, LTZ, SSV and WT versions, and GMC Sierra 1500 models in the Base, Denali, SLE and SLT versions.
It does not fit 2007 to 2013 trucks or 2019 and later trucks. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The differential drop spacers and the lift change the driveline angles, so the driveline should be checked after installation. The aluminum control arm design and the lift change front geometry, so a wheel alignment belongs after installation.

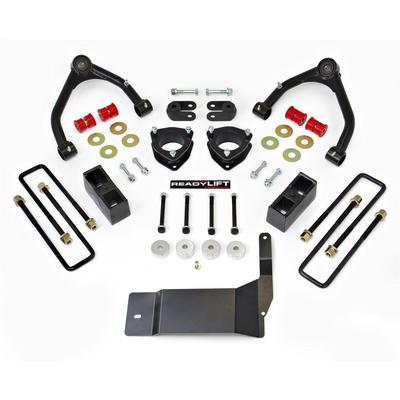

What’s included
Billet circular differential drop spacers and the lift components are included. Compare the parts received against your installation steps before starting.
