G2 Dana 30 YJ/XJ/TJ 27 Spline Front Chromoly Axle Kit – 98-2031-001

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Dana 30 front chromoly axle kit, 27 spline, uses 5-760X joint
  • For 1987-1995 Wrangler (YJ) with disconnect eliminator, 1997 and newer TJ, 1984-2001 XJ
  • 4340 chrome/nickel alloy; does not include a differential

Description

Overview

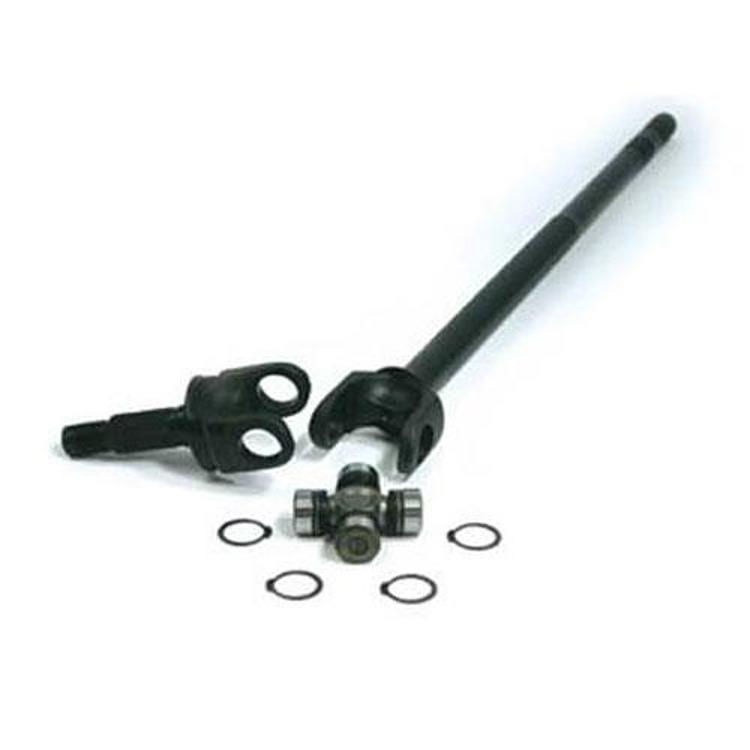

The G2 Axle and Gear 98-2031-001 is a Dana 30 front chromoly axle kit with 27 splines for 1987-1995 Jeep Wrangler (YJ) with a disconnect eliminator, 1997 and newer Wrangler (TJ) and 1984-2001 Cherokee (XJ).

The axles are forged from 4340 chrome/nickel alloy, also called chromoly, with extra material around the yoke area of the u-joint cap to help prevent distortion that can damage bearings. They are built for off-road driving, oversized tires and high torque from low-geared setups. The 27 spline count must match the differential or carrier it works with.

Key features

  • Front axle kit for the Jeep Dana 30
  • 27 spline
  • Forged from 4340 chrome/nickel alloy (chromoly)
  • Extra material around the yoke area of the u-joint cap
  • Uses the 5-760X joint
  • Fits YJ with disconnect eliminator, TJ and XJ

Gearing and driveline matching

An axle shaft is only one part of the front driveline. Its spline count has to match the differential or carrier, and the joint, yoke and pinion should be checked as a set when the shaft is replaced. Larger tires and lower gearing put more strain on the shafts and joints, so the drivetrain may be stressed sooner than it would be on stock tires.

When upgrading, check the u-joint and the yoke condition at the same time. Worn u-joints can cause vibration and speed up wear on the new shaft. Replacing the axle seals and checking the lubricant level gives the new parts a clean start, and bearings should be checked for play after the first trail trips.

  • Confirm the spline count on both ends before ordering
  • Replace u-joints when the shaft is replaced
  • Check the fluid level after installation

Specifications

The 98-2031-001 is a chromoly front axle kit for the Dana 30 front axle, with 27 splines.

Brand G2 Axle and Gear
Part number 98-2031-001
UPC 631410097429
Part type Chromoly front axle kit
Axle Dana 30 Reverse front
Spline 27 spline
Material 4340 chrome/nickel alloy (chromoly)
U-joint Uses 5-760X joint
Includes differential None
Application stated 87-96 YJ with disconnect eliminator, 97-Up TJ, 84-01 XJ

Vehicle fitment

The kit fits 1987-1995 Wrangler (YJ) with a disconnect eliminator, 1997-2006 Wrangler (TJ) and 1984-2001 Cherokee (XJ). The YJ fit applies to Jeeps with a disconnect eliminator.

It fits 87-96 YJ with disconnect eliminator, 97-Up TJ and 84-01 XJ.

Before ordering the 98-2031-001, compare its spline count, side and overall length with the shaft being replaced.

Confirm your vehicle’s year, model and trim before ordering, including whether it is an LJ, JK or JL.

Installation notes

The kit uses the 5-760X joint, and the YJ application is stated only for Jeeps with a disconnect eliminator. The kit does not include a differential.

What’s included

One axle shaft.

Not included: Differential (the kit includes none).

SKU: G/298-2031-001 Category:

Specification

Shipping weight 32.00 lbs
Package dimensions 37.00 × 7.50 × 7.30 in
brands

Fitment

VehicleYearsTrims
Jeep Cherokee (XJ) likely fits1984–2001All
Jeep Wrangler (TJ) likely fits1997–2006All
Jeep Wrangler (YJ) likely fits1987–1995All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What Jeeps does the G2 98-2031-001 axle kit fit?

The kit fits 87-96 YJ with a disconnect eliminator, 97-Up TJ and 84-01 XJ. That covers the Wrangler (YJ), Wrangler (TJ) and Cherokee (XJ) within those years, with the YJ limited to a disconnect eliminator.

How many splines is the 98-2031-001 kit?

The 98-2031-001 is a 27 spline Dana 30 front axle kit. It uses the 5-760X joint and is made from 4340 chrome/nickel alloy, also called chromoly.

Does the 98-2031-001 include a differential?

No. The kit includes no differential. It is a set of front axle shafts for the Dana 30 and uses the 5-760X joint.

Do I need to replace the u-joints when I install new axle shafts?

It is a good idea to inspect them at the same time, since replacing worn joints avoids vibration and early wear on the new shaft. Look for play, rust and dry bearings, and replace any joint that feels loose or rough when turned.
