Overview

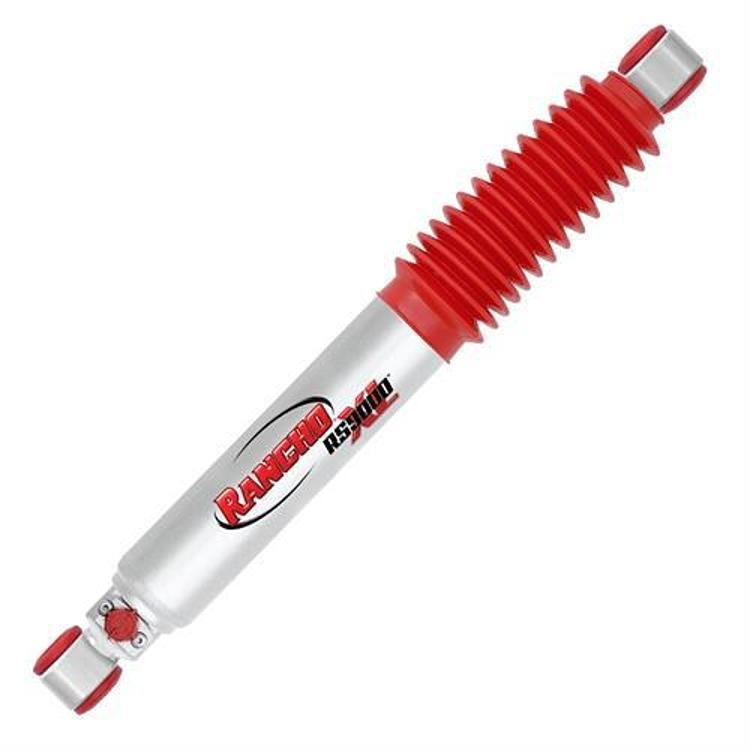

The RS999114 is a front shock in the RS9000XL Series that covers a 0 to 2 in. lift range, with a Direct Fit fitment. It pairs a 2.75-in. body with an 18mm Nitro Carb rod and a nitrogen gas charge.
It offers 9-position manual or remote adjustment, polyurethane bushings and a protective boot. Confirm fit for your year, model and trim before ordering.
Key features
- Front position
- Lift range of 0 to 2 in.
- 2.75-in. body with liquid metallic finish
- Large 18mm Nitro Carb rod
- 9-position tuning with manual or remote control
- Polyurethane bushings and protective boot
Lift range and setup
A lift range tells you how far a front shock can be matched to a given suspension height, so it should be compared with the height your suspension is set to. Shocks covering a range can suit a moderate setup or a taller one. Measure the current front height and note any spacers or leveling parts before choosing a unit.
The 9-position tuner gives room to adjust between comfort and control. A firmer setting helps when carrying gear or running rough trails, while a softer one improves road ride. Change one step at a time and test the same route after each change.
Polyurethane bushings and the protective boot both wear with use. Check the bushings for cracking at service and inspect the boot after mud or water crossings. Rinse the rod area and look for oil on the body, which can point to a seal issue.
Specifications
| Brand | Rancho |
|---|---|
| Part number | RS999114 |
| UPC | 10039703091142 |
| Series | RS9000XL Series |
| Position | Front |
| Lift range | 0 to 2 in. |
| Body diameter | 2.75-in. |
| Piston rod | 18mm Nitro Carb |
| Charge type | Nitrogen gas |
| Finish | Liquid metallic |
| Bushings | Polyurethane |
| Tuning | 9-position manual/remote |
| Fitment label | Direct Fit |
Vehicle fitment
The shock carries a Direct Fit label, yet no make, model, year or chassis code is named. Fitment is therefore unconfirmed for any particular vehicle.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
Includes a protective boot. Check the package contents against your installation before starting.
