Prothane Motion Control 1 Inch Polyurethane Body Lift – 1-113-BL

Prothane Motion Control

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Prothane 1 inch polyurethane body lift, part number 1-113-BL
  • Body mounts are 1 inch taller than stock
  • Kit includes 2-piece body mounts, new bolts, washers and sleeves
  • Also includes grille mount bushings

Description

Overview

The Prothane 1-113-BL is a 1 inch polyurethane body lift from Prothane Motion Control. It raises the body without spacers, using body mounts that are 1 inch taller than stock while keeping the stock bushing design. Confirm fit for your vehicle’s year, model and trim before choosing it.

Key features

  • Body mounts 1 inch taller than stock
  • Stock bushing design retained
  • Black polyurethane construction
  • Two-piece body mounts
  • New bolts, washers and sleeves included
  • Grille mount bushings included

Before you lift the body

A body lift raises the cab and bed off the frame without changing the suspension or the axle position. That creates space for larger tires, though the tires themselves usually make the bigger difference. Because the body sits higher, the center of gravity rises slightly, so handling and braking can feel different, especially on side slopes or when loaded.

Before choosing a body lift, consider what else connects the cab to the frame. Lines, wiring harnesses, the throttle linkage and the exhaust may need more slack or new hardware. Check the driveshaft angles and, with a significant lift, the steering geometry. Polyurethane mounts are firmer than rubber, so expect more vibration to reach the cab.

After installation, recheck the body bolts after the first few drives and inspect the mounts every few months. Look for cracking or splitting in the polyurethane and for gaps that open at the cab corners. Keep an eye on fuel and brake lines where they pass near the body gap.

  • Check hood and grille clearance
  • Adjust throttle and shifter linkage if needed
  • Re-tighten body bolts after the first drives

Specifications

Brand Prothane Motion Control
Part number 1-113-BL
UPC 63616913843
Lift height 1 inch
Spacer material Polyurethane
Color Black
Body mounts 2-piece
Hardware New bolts, washers and sleeves

Vehicle fitment

Confirm the make, model, year and trim that this body lift covers before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because the body sits higher on the frame, check brake lines, wiring, hoses and driveline angles after installation.

What’s included

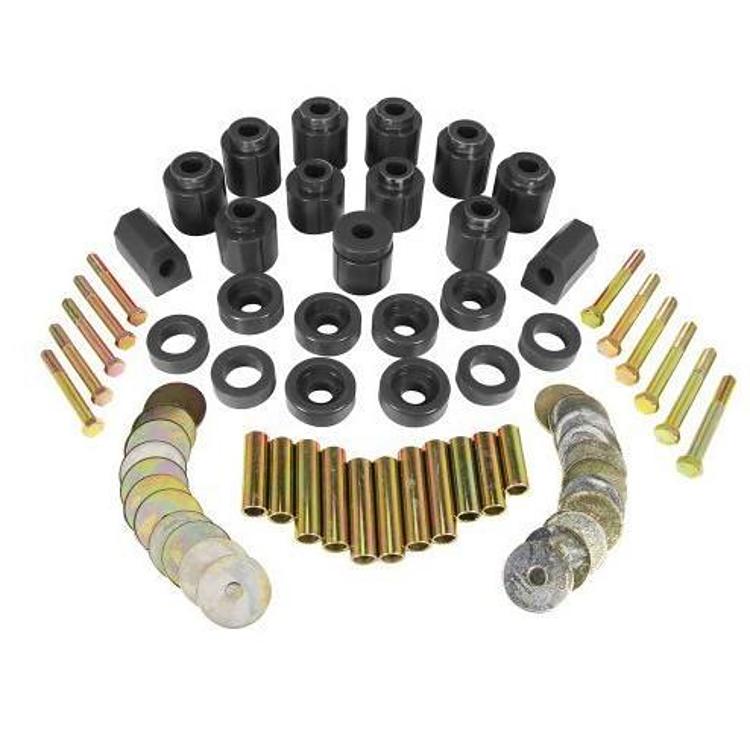

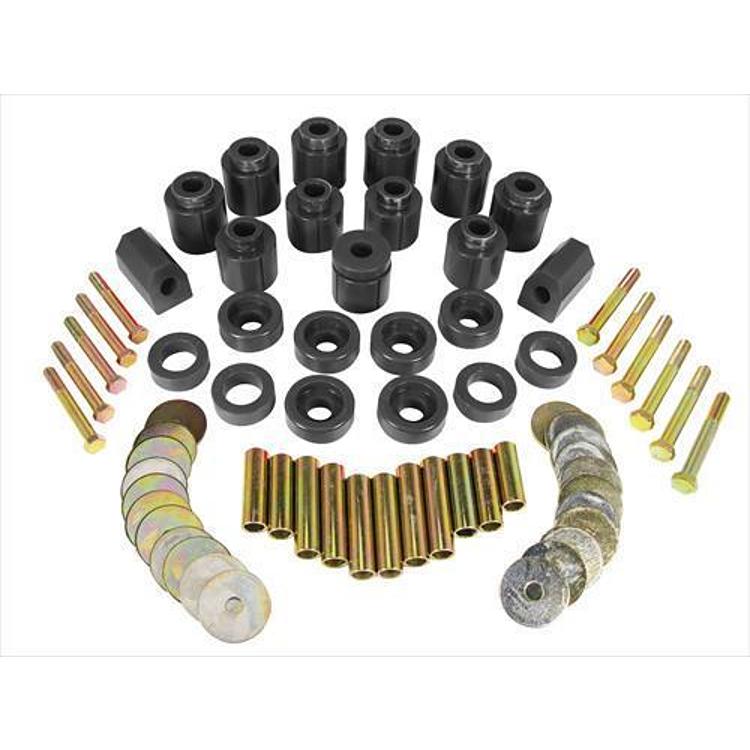

The kit includes 2-piece body mounts, new bolts, washers and sleeves, other necessary hardware, and grille mount bushings.

SKU: D/I1-113-BL Category:

Specification

Shipping weight 10.80 lbs
Package dimensions 10.10 × 6.30 × 4.10 in
brands

Questions & Answers

Does the Prothane 1-113-BL fit my vehicle?

No vehicle, year or trim is named for this body lift. Confirm that it covers your make, model, year and trim before ordering, since a body lift changes how the body sits over the frame.

How much lift does this kit give?

The kit gives 1 inch of lift. Its body mounts are 1 inch taller than stock, so the body sits higher while the factory bushing design is kept. Check brake lines, wiring, hoses and driveline angles after installation.

What is included in the kit?

The kit includes 2-piece body mounts, new bolts, washers and sleeves, other necessary hardware, and grille mount bushings. Check the package contents against your installation before starting.

Will a body lift affect steering or handling?

It can. Raising the body moves the center of gravity higher and can change how the vehicle feels on slopes and under load. Check driveshaft angles and steering linkage after installation to confirm everything still operates correctly.

How often should body mounts be inspected?

Inspect them every few months and after rough trail use. Look for cracks in the polyurethane, gaps at the cab corners, and bolts that have backed off.
