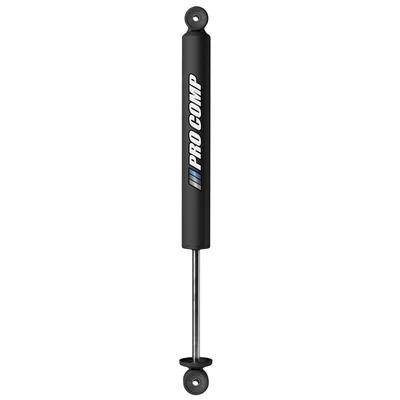

Pro Comp PRO-X Twin Tube Shock Absorber – 930001B

Pro Comp Suspension

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 2011–2018 Ram 1500 and 2014–2018 Ram ProMaster 1500 Base
  • 30.08-inch extended length, 18.0-inch collapsed length
  • 12.08-inch travel length
  • Loop upper and lower mounts
  • Twin tube design with 10-stage velocity sensitive valving

Description

Overview

The Pro Comp 930001B is a PRO-X twin tube rear shock absorber for the 2011–2018 Ram 1500 in many trims and the 2014–2018 Ram ProMaster 1500 Base. It has a 30.08-inch extended length, an 18.0-inch collapsed length and a 12.08-inch travel length.

The PRO-X is a general-purpose twin tube design for pickups and vans that see mostly pavement, with occasional off-road use. It uses 10-stage velocity sensitive valving to handle varied road conditions, and a 1-3/8-inch nylon banded piston with a 5/8-inch chrome hardened shaft form the working core of the shock.

Both mounts are loop eyes, and the 2.0-inch body is finished in black powder coat. The gas charge is nitrogen stabilized. The optional shock boot is sold as a separate item, so it is not included with the shock.

Key features

  • Twin tube design for general-purpose use
  • 10-stage velocity sensitive valving
  • 1-3/8-inch nylon banded piston
  • 5/8-inch chrome hardened shaft
  • Loop eyes at both ends
  • Black powder-coated finish

Pickups and vans in daily use

Ram 1500 pickups and ProMaster vans see a mix of pavement, parking lots and light cargo work, which asks a rear shock to damp both empty and loaded conditions. A general-purpose twin tube keeps the ride controlled through those changes without feeling firm on every bump. Choosing a shock for your typical load is more useful than chasing a single number.

Inspect the loop eyes for cracks at each service, and check for fluid on the body after heavy use. A rear shock that is fading often feels like the back end floats after dips or leans more in turns. Replace shocks in matched pairs on the same axle, and confirm the bushings and hardware are in good shape first.

Specifications

Brand Pro Comp Suspension
Part number 930001B
Shock series PRO-X
Shock type Twin tube, gas charged (nitrogen stabilized)
Position Rear
Extended length 30.08 in
Collapsed length 18.0 in
Travel length 12.08 in
Body diameter 2.0 in
Piston 1-3/8 in nylon banded
Shaft 5/8 in chrome hardened
Upper mount Loop
Lower mount Loop
Finish Black powder coat
Boot Optional, not included

Vehicle fitment

It fits the 2011–2018 Ram 1500 in the Big Horn, Express, HFE, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, Outdoorsman, R/T, Rebel, SLT, ST, Special Service, Sport, Tradesman and Tradesman HD trims, and the 2014–2018 Ram ProMaster 1500 in the Base trim.

Ram 2500 and Ram 3500 models are not on this list, and Ram 1500 model years from 2019 onward are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Check the loop eyes against the existing rear bracket, and compare the 30.08-inch extended length with the installed suspension. Check clearance at full compression before driving.

What’s included

One rear twin tube shock with loop eyes at both ends. The boot is not part of this item.

Not included: the optional boot.

Fitment

VehicleYearsTrims
Ram 15002011–2018Big Horn, Express, HFE, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, Outdoorsman, R/T, Rebel, SLT, ST, Special Service, Sport, Tradesman, Tradesman HD
Ram ProMaster 15002014–2018Base

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the 930001B fit a 2016 Ram 1500?

Yes. The 2011–2018 Ram 1500 is covered in many trims, so a 2016 model year falls within the covered years for this shock.

Does the 930001B fit a 2019 Ram 1500?

No. Ram 1500 model years from 2019 onward are not covered, and the 2018 model year is the last one included. Confirm your vehicle's year, model and trim before ordering.

What is the collapsed length of the 930001B?

The collapsed length is 18.0 inches and the extended length is 30.08 inches. The travel length is 12.08 inches, so compare these with your installed suspension.

Is it worth replacing the rear bushings during a shock swap?

Often yes. Worn bushings let the shock move off its intended line, which causes uneven wear and noise. Replacing them while the shock is out is usually simpler than doing it later, especially on a truck used for work.
