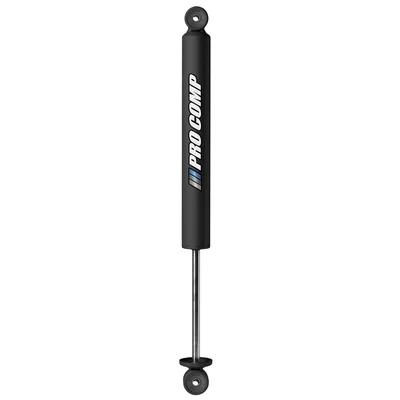

Pro Comp PRO-X Twin Tube Shock Absorber – 929543B

Pro Comp Suspension

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 2013–2021 Ram 3500 in Big Horn, Laramie, Limited, SLT, ST and Tradesman trims
  • 29.98-inch extended length, 18.24-inch collapsed length
  • 11.74-inch travel length
  • Loop upper and lower mounts
  • Twin tube design with 10-stage velocity sensitive valving

Description

Overview

The Pro Comp 929543B is a PRO-X twin tube rear shock absorber for the 2013–2021 Ram 3500 in several trims. It has a 29.98-inch extended length, an 18.24-inch collapsed length and an 11.74-inch travel length, and it is designed for the rear of the truck.

The PRO-X is a general-purpose twin tube design for heavy-duty pickups that see mostly paved roads, with occasional off-road driving. The 10-stage velocity sensitive valving is meant to adjust to different road surfaces, and the 1-3/8-inch nylon banded piston and 5/8-inch chrome hardened shaft are the main working parts.

Both mounts are loop eyes, and the body is finished in black powder coat with a 2.0-inch diameter. The gas charge is nitrogen stabilized. The shock boot is an optional item and is not included with this shock.

Key features

  • Twin tube design for general-purpose use
  • 10-stage velocity sensitive valving
  • 1-3/8-inch nylon banded piston
  • 5/8-inch chrome hardened shaft
  • Loop eyes at both ends
  • Black powder-coated finish

Shock tuning and ride

A twin tube shock uses a working cylinder and a reserve chamber filled with gas, which helps keep damping steady during repeated bumps. Valving controls how quickly the shock resists movement, and velocity sensitive valving changes that resistance with the speed of the suspension. This suits a heavy-duty pickup that moves between paved roads and occasional trails, since the shock responds differently to small and large movements.

Rear shock performance depends on the mounts, bushings and spring condition around it. Worn bushings or a sagging spring can make a new shock feel harsh or loose, so check them when the shock is replaced. Keep the mounts clean and free of rust, and check for leaks or cracked welds during routine service.

Specifications

Brand Pro Comp Suspension
Part number 929543B
Shock series PRO-X
Shock type Twin tube, gas charged (nitrogen stabilized)
Position Rear
Extended length 29.98 in
Collapsed length 18.24 in
Travel length 11.74 in
Body diameter 2.0 in
Piston 1-3/8 in nylon banded
Shaft 5/8 in chrome hardened
Upper mount Loop
Lower mount Loop
Finish Black powder coat
Boot Optional, not included

Vehicle fitment

It fits the 2013–2021 Ram 3500 in the Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Limited Longhorn, Lone Star, SLT, ST and Tradesman trims.

Ram 2500 and Ram 1500 models are not on this list, and Ram 3500 years after 2021 are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Check the loop eyes and the 29.98-inch extended length against the existing rear suspension before installation. Confirm clearance at full compression, since the shock is listed with an 18.24-inch collapsed length.

What’s included

One rear shock with loop eyes at both ends. The optional boot is not included in this item.

Not included: the optional boot.

Fitment

VehicleYearsTrims
Ram 35002013–2021Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Limited Longhorn, Lone Star, SLT, ST, Tradesman

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the 929543B fit a 2015 Ram 3500?

Yes. The 2013–2021 Ram 3500 is covered in several trims, and 2015 models fall within that year range. Confirm the trim on your truck before ordering.

Does the 929543B fit a Ram 2500?

No. This shock is designed for the Ram 3500 only, so Ram 2500 models are not covered. Confirm fit for your vehicle's year, model and trim before ordering.

What is the extended length of the 929543B?

The extended length is 29.98 inches and the collapsed length is 18.24 inches. The travel length is 11.74 inches, so compare these with the installed suspension.

How can I tell when rear shocks need replacing?

Look for oil on the shock body, a leaking or cracked boot, and rear bounce that continues after bumps. Uneven tire wear, a sagging rear end, and clunking at the mounts can also point to worn shocks. Inspect them at routine service and replace them as a pair for even handling.
