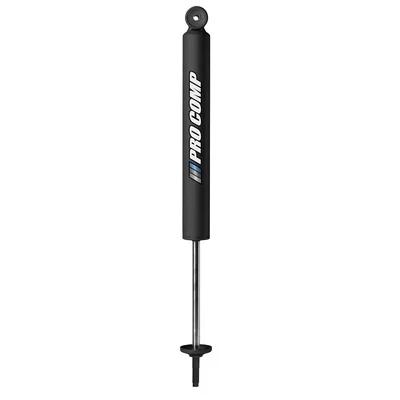

Pro Comp PRO-X Twin Tube Shock Absorber – 926510B

Pro Comp Suspension

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp PRO-X twin tube shock, part number 926510B
  • Extended length 26.8 inches, collapsed length 15.6 inches
  • 10-stage velocity sensitive valving
  • Nitrogen stabilized, black powder coat
  • Optional shock boot sold separately

Description

Overview

The Pro Comp PRO-X Twin Tube Shock Absorber, part number 926510B, is a twin tube shock with a 26.8-inch extended length and a 15.6-inch collapsed length. It is designed for vehicles that mostly see paved roads with occasional off-road use, and it comes in extended lengths for lifted trucks.

The shock uses 10-stage velocity sensitive valving, a 1-3/8-inch nylon banded piston and a 5/8-inch chrome hardened piston rod with a Teflon rebound stop. Pro Comp says these features give a comfortable highway ride and handle demanding driving conditions.

Pro Comp offers the PRO-X in extended lengths to fit lifted trucks. This version has a 26.8-inch extended length, a 15.6-inch collapsed length and 11.190 inches of travel, with a 2.0-inch body diameter and a nitrogen stabilized gas charge.

Key features

  • Twin tube design
  • 10-stage velocity sensitive valving
  • 1-3/8-inch nylon banded piston
  • 5/8-inch chrome hardened piston rod
  • Teflon rebound stop
  • Extended lengths for lifted trucks

Choosing a mount style

Mount style is one of the first things to confirm for a shock. Loop mounts and eyelet mounts both use a round bushing, but the bracket shape and hole size differ, so a shock may not sit squarely on a bracket made for the other type. Measure the bolt hole center to center and the bushing inside diameter on the old shock before choosing a replacement.

Length and travel matter as much as mount style. A shock works through its full stroke, and one that is too short can limit suspension travel while one that is too long can strain the mounts at full droop. Because this shock is not tied to one truck, check it against the existing shock on the vehicle and keep the old one until the new one is confirmed to fit.

  • Measure mount hole center to center
  • Compare bushing inside diameter
  • Keep the old shock until fit is confirmed

Specifications

Brand Pro Comp Suspension
Part number 926510B
Shock series PRO-X
Shock type Twin tube
Location Universal
Body diameter 2.0 inches
Extended length 26.8 inches
Collapsed length 15.6 inches
Travel length 11.190 inches
Upper mount Stem
Lower mount Loop in the short details; eyelet in the detailed specs
Gas charge Nitrogen stabilized
Finish Black powder coat
Piston 1-3/8-inch nylon banded
Piston rod 5/8-inch chrome hardened
Fitment label Direct Fit

Vehicle fitment

The shock is universal in location, and no specific vehicle is named for it.

Confirm fit for your vehicle’s year, model and trim before ordering. Measure your current shock’s extended and collapsed lengths before choosing this one.

Installation notes

The shock boot is optional and sold separately. The lower mount is a loop in the short details and an eyelet in the detailed specs, so check the mount style before installing.

What’s included

One shock. The shock boot is not included.

Fitment

VehicleYearsTrims
Ford F-1001975–1979Base, Custom, Northland, Ranger, Ranger Lariat, Ranger XLT, XLT
Ford F-1501975–1979Base, Custom, Northland, Ranger, Ranger Lariat, Ranger XLT, XLT
Ford F-2501975–1979Base, Custom, Northland, Ranger, Ranger Lariat, Ranger XLT, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Is this shock for paved roads or off-road use?

It is designed for vehicles that mostly see paved roads with occasional off-road use, and it gives a comfortable highway ride.

How long is the PRO-X 926510B?

It measures 26.8 inches extended and 15.6 inches collapsed, with 11.190 inches of travel. The body diameter is 2.0 inches.

Does it come with a shock boot?

No. The shock boot is optional and sold separately, so it is not included with the shock itself. Choose it separately if you want the boot.

Does the upper stem mount need a special bracket?

Stem mounts pass through a bracket and are secured with a nut, so the bracket hole must match the stem diameter. Check the stem and nut size against your upper bracket before installing, and replace any worn rubber isolators at the same time.
