Pro Comp PRO-X Twin Tube Shock Absorber – 924508B

Pro Comp Suspension

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 2000–2005 Ford Excursion, F-250 Super Duty and F-350 Super Duty
  • 24.8-inch extended length, 14.8-inch collapsed length
  • Loop upper and lower mounts
  • Twin tube design with 10-stage velocity sensitive valving
  • Nitrogen stabilized

Description

Overview

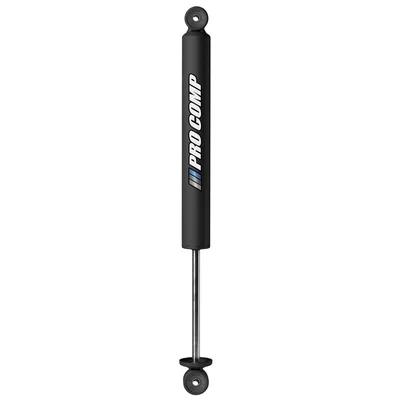

The Pro Comp 924508B is a PRO-X twin tube shock absorber for the 2000–2005 Ford Excursion and for the 2000–2005 F-250 and F-350 Super Duty. It has a 24.8-inch extended length, a 14.8-inch collapsed length and a 10.01-inch travel length.

The PRO-X is a general-purpose twin tube design for trucks and SUVs that spend most of their time on pavement, with occasional off-road driving. Pro Comp uses 10-stage velocity sensitive valving so the shock can handle different road conditions, and a 1-3/8-inch nylon banded piston and 5/8-inch chrome hardened shaft provide the working parts.

Both mounts are loop eyes, and the body is 2.0 inches in diameter with a black powder-coated finish. The gas charge is nitrogen stabilized, and the optional shock boot is not part of the shock.

Key features

  • Twin tube design for general-purpose use
  • 10-stage velocity sensitive valving
  • 1-3/8-inch nylon banded piston
  • 5/8-inch chrome hardened shaft
  • Loop eyes at both ends
  • Black powder-coated finish

Heavy-duty load and clearance

Heavy-duty trucks and large SUVs spend much of their life carrying trailers, bed loads and passengers, which makes the rear shocks work harder than light-duty counterparts. A shock with a long stroke can still bottom out if the spring is worn or the load is above what the suspension was built for. Trailer towing is a common cause of premature wear on rear shocks.

Watch for oil on the shock body, a rough or bouncy ride after dips, and wheel hop when accelerating from a stop. Inspect the loop eyes and their bushings whenever a shock is off the vehicle, and replace worn bushings with the new shock to avoid play. Replacing the front and rear shocks together helps keep the chassis balanced under load.

Specifications

Brand Pro Comp Suspension
Part number 924508B
Shock series PRO-X
Shock type Twin tube, gas charged (nitrogen stabilized)
Location Universal
Extended length 24.8 in
Collapsed length 14.8 in
Travel length 10.01 in
Body diameter 2.0 in
Piston 1-3/8 in nylon banded
Shaft 5/8 in chrome hardened
Upper mount Loop
Lower mount Loop
Finish Black powder coat
Boot Optional, not included

Vehicle fitment

It fits the 2000–2005 Ford Excursion in the Eddie Bauer, Limited, XLS and XLT trims, and the 2000–2005 F-250 and F-350 Super Duty in the Harley-Davidson Edition, King Ranch, Lariat, XL and XLT trims.

Excursion and Super Duty model years from 2006 onward are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

These are heavy-duty trucks and SUVs, so check the loop eyes against the existing hardware and make sure the 24.8-inch extended length fits the suspension height. Check clearance at full compression as well.

What’s included

Loop eyes at both ends make up this twin tube shock. The optional boot is listed separately.

Not included: the optional boot.

Fitment

VehicleYearsTrims
Ford Excursion2000–2005Eddie Bauer, Limited, XLS, XLT
Ford F-250 Super Duty2000–2005Harley-Davidson Edition, King Ranch, Lariat, XL, XLT
Ford F-350 Super Duty2000–2005Harley-Davidson Edition, King Ranch, Lariat, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the 924508B fit a 2004 Ford Excursion?

Yes. It fits the 2000–2005 Ford Excursion in several trims, and a 2004 model year is within those years. Confirm fit for your vehicle's year, model and trim before ordering.

Does the 924508B fit a 2008 Super Duty?

No. It fits the F-250 and F-350 Super Duty only from 2000 to 2005, so 2008 models are not covered. Confirm fit for your vehicle's year, model and trim before ordering.

What is the extended length of the 924508B?

The extended length is 24.8 inches and the collapsed length is 14.8 inches. The travel length is 10.01 inches. Compare these with your suspension before ordering.

What helps a shock last longer under heavy loads?

Keeping tire pressure correct, avoiding repeated hard bottoming over potholes, and replacing worn bump stops all reduce stress on the shock. Inspect the loop eyes and bushings regularly, since loose mounts speed up wear on the shock body.
