Overview

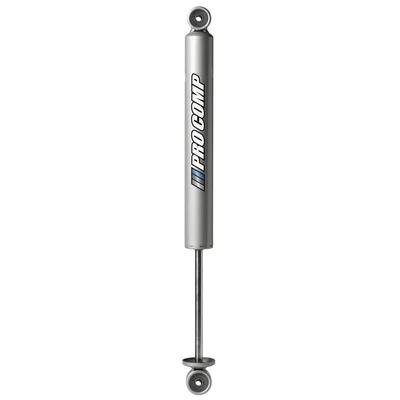

The Pro Comp Suspension PR2031 is a PRO-M rear monotube shock for a 6 inch lift on the 2011 to 2013 Chevrolet Silverado 2500 HD and GMC Sierra 2500 HD. It has an extended length of 29.8 inches and a collapsed length of 18.7 inches.
The shock uses a nitrogen gas charge, a floating piston and a vehicle specific multi-stage disc pack. It is finished in silver powder coat.
Key features
- Rear monotube design for a 6 inch lift
- Extended length 29.8 inches, collapsed length 18.7 inches
- Nitrogen gas charged with floating piston
- Multi-stage disc pack valving
- 14 mm chrome hardened shaft
- Polyurethane shock boot included
Driveline angles after a rear lift
A 6 inch lift on a heavy duty truck changes rear ride height and the driveline angles, which affects vibration and u-joint life. Measure the pinion angle after the lift is installed, and compare the extended and collapsed lengths with the rear shock being removed. The shock body should clear the axle at full compression, and the frame and leaf springs need the same check at full droop.
Rear shocks on heavy duty trucks handle heavy loads, trailers and rough roads, so bushings and mounts see more stress. Look for oil on the body, a knock when the axle moves, and worn bushings that let the shock shift. Replacing rear shocks in pairs keeps the axle controlled on both sides, which helps when the truck is loaded.
- Measure pinion angle after the lift
- Check u-joints for wear
- Inspect bushings before fitting
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | EXPPR2031 |
| Shock series | PRO-M |
| Position | Rear |
| Extended length | 29.8 in |
| Collapsed length | 18.7 in |
| Lift | 6 in |
| Finish | Silver powder coat |
Vehicle fitment
It fits the 2011 to 2013 Chevrolet Silverado 2500 HD in LT, LTZ and WT trims, and the 2011 to 2013 GMC Sierra 2500 HD in SLE, SLT and WT trims.
It is made for 2011 to 2013 2500 HD trucks. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
A 6 inch lift on a 2500 HD changes the rear ride height, so compare the 29.8 inch extended and 18.7 inch collapsed lengths with the rear shock being removed. Check the driveline angles after installation because a rear lift changes them. The loop mounts should be checked against the factory brackets, and the boot should clear the axle at full compression.
A 6 inch lift on a heavy duty Silverado or Sierra changes the rear ride height and the driveline angles, so check the pinion angle after installation. Confirm the loop mounts are secure and the shock body clears the axle at full compression.
Check the rear shock clears the frame and the leaf springs at full droop, and confirm the mounts are tight before the truck is loaded.
What’s included
One PRO-M rear monotube shock with polyurethane boot under part number EXPPR2031.
