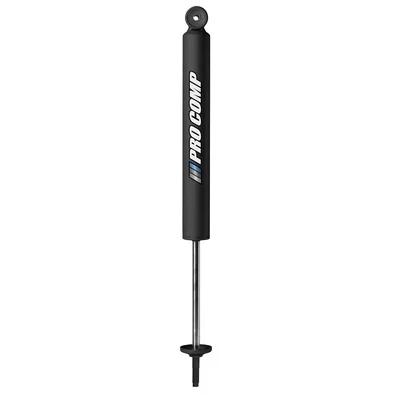

Pro Comp PRO-X Twin Tube Shock Absorber – 915551B

Pro Comp Suspension

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Front position for Chevrolet and GMC 2500 and 3500 models and 2002–2006 1500 trucks
  • Includes Avalanche, Suburban and Yukon XL entries
  • 15.7-inch extended length, 10.0-inch collapsed length
  • Stem upper mount, loop lower mount
  • Travel length 5.50 inches

Description

Overview

The Pro Comp 915551B is a PRO-X front twin tube shock absorber for Chevrolet and GMC trucks, with entries for the Silverado and Sierra 2500 and 3500 models, the 2002–2006 1500 pickups, the Avalanche, and the Suburban and Yukon XL 2500s. It has a 15.7-inch extended length, a 10.0-inch collapsed length and 5.50 inches of travel.

The PRO-X is a general-purpose twin tube shock built for trucks that see mainly paved roads with the occasional off-road trip. Its 10-stage velocity sensitive valving is designed to handle varied road conditions, and the 1-3/8-inch nylon banded piston and 5/8-inch chrome hardened shaft are the same as the rest of the PRO-X line.

The front shock has a stem upper mount and a loop lower mount, a 2.0-inch body and a black powder-coated finish. It is nitrogen stabilized, and the shock boot is sold as an optional extra that is not included.

Key features

  • Twin tube design for general-purpose use
  • 10-stage velocity sensitive valving
  • 1-3/8-inch nylon banded piston
  • 5/8-inch chrome hardened shaft
  • Nitrogen stabilized
  • Black powder-coated finish

Front shock considerations

Front shocks do real work beyond ride comfort. They help control the front end over bumps, limit dive under braking and keep the steering feeling settled at highway speed. On a 4×4 with a heavy front axle, the shock sees high loads each time a wheel drops into a rut, so wear shows up quickly as wandering or a loose feel.

Stem upper mounts and loop lower mounts put the shock under different stresses than all-loop setups, so check the bushings and studs before assuming the old hardware will transfer. Replacing one front shock without the other can leave the truck pulling to one side, so pairs are the safer choice. Inspect the ball joints and tie rod ends at the same time, since loose steering parts can make a new shock feel worse than expected.

  • Check the stem mount threads and nut tightness after installation
  • Inspect the loop lower bushing for cracks or flattening
  • Test damping by bouncing each front corner before driving

Specifications

Brand Pro Comp Suspension
Part number 915551B
Shock series PRO-X
Shock type Twin tube, gas charged (nitrogen stabilized)
Position Front
Extended length 15.7 in
Collapsed length 10.0 in
Travel length 5.50 in
Body diameter 2.0 in
Piston 1-3/8 in nylon banded
Shaft 5/8 in chrome hardened
Upper mount Stem
Lower mount Loop
Finish Black powder coat
Boot Optional, not included

Vehicle fitment

The shock fits the 2002–2006 Chevrolet Avalanche 2500, the 2002–2006 Silverado 1500, the 2001–2003 and 2005–2006 Silverado 1500 HD, the 1999–2004 Silverado 2500, the 2001–2010 Silverado 2500 HD, the 2001–2006 Silverado 3500 and the 2007–2010 Silverado 3500 HD. GMC Sierra models cover the same model ranges, along with the 2000–2013 Suburban and Yukon XL 2500.

Model years after 2013 and the 1500 pickups from 2007 onward are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The 15.7-inch extended and 10.0-inch collapsed lengths apply to the front position. Check the stem upper mount and the loop lower mount against the existing bracket before installing, because the shock is listed across many different trucks.

What’s included

One front twin tube shock with a stem upper mount and loop lower mount. The optional shock boot is not included.

Not included: the optional boot and mounting hardware.

Fitment

VehicleYearsTrims
Chevrolet Avalanche 25002002–2006Base, LS, LT
Chevrolet Silverado 15002002–2006Base, Hybrid, LS, LT, SS, WT, Z71
Chevrolet Silverado 1500 HD2001–2003, 2005–2006Base, LS, LT
Chevrolet Silverado 25001999–2004Base, LS, LT, WT
Chevrolet Silverado 2500 HD2001–2010Base, LS, LT, LTZ, WT
Chevrolet Silverado 2500 HD Classic2007LS, LT, WT
Chevrolet Silverado 35002001–2006Base, LS, LT, WT
Chevrolet Silverado 3500 Classic2007LS, LT, WT
Chevrolet Silverado 3500 HD2007–2010LT, LTZ, WT
Chevrolet Suburban 25002000–2013Base, LS, LT, LTZ
GMC Sierra 15002002–2006Base, Denali, HT, Hybrid, SL, SLE, SLT, WT
GMC Sierra 1500 HD2001–2003, 2005–2006SLE, SLT
GMC Sierra 25001999–2004Base, SL, SLE, SLT, WT
GMC Sierra 2500 HD2001–2010Base, SL, SLE, SLT, WT
GMC Sierra 2500 HD Classic2007SL, SLE, SLT, WT
GMC Sierra 35002001–2006Base, SL, SLE, SLT, WT
GMC Sierra 3500 Classic2007SL, SLE, SLT, WT
GMC Sierra 3500 HD2007–2010SLE, SLT, WT
GMC Yukon XL 25002000–2013SLE, SLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Is the 915551B a front shock?

Yes. It is a front shock, with a 15.7-inch extended length and a 10.0-inch collapsed length, so it is designed for the front suspension of the trucks it fits.

Will the 915551B fit a 2005 Silverado 1500 HD?

Yes. It fits the 2001–2003 and 2005–2006 Silverado 1500 HD models in several trims, so a 2005 or 2006 HD truck is covered.

Does the 915551B come with a shock boot?

No. The optional boot is not included, so it must be ordered separately if you want one fitted to the shock.

Do front shocks affect steering and braking?

Yes. Front shocks control how the front end settles over bumps and under braking, which affects steering feel and stability. Worn units can cause wandering, nose dive or a loose feel, so inspect them along with the ball joints and tie rod ends.
