Overview

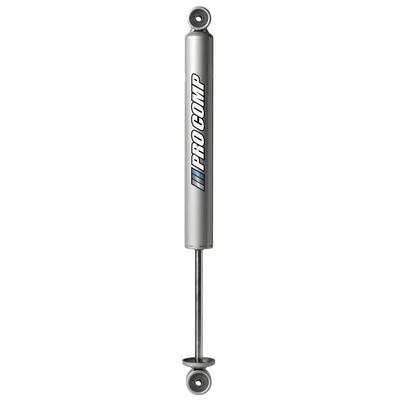

The Pro Comp Suspension PR2012 is a PRO-M rear monotube shock for the 2005 to 2023 Toyota Tacoma, with 0 to 2.5 inches of lift. It is sold individually and has a rear position.
The shock is nitrogen gas charged, with a floating piston and multi-stage disc pack valving. The larger body adds oil capacity for better heat dissipation.
Key features
- Rear monotube design for 0 to 2.5 inches of lift
- Extended length 22.6 inches, collapsed length 14.5 inches
- Nitrogen gas charged with floating piston
- Multi-stage disc pack valving, vehicle specific
- 14 mm chrome hardened shaft
- Polyurethane shock boot included
Tacoma rear suspension basics
A rear shock on a Tacoma carries the bed, cargo and the rear axle movement over bumps, so its length and mounts matter as much as its damping. Measure the installed length of the shock being replaced and confirm the truck sits within the lift range before ordering. Rear shocks also work with leaf or coil springs and bump stops, so the whole rear setup should be inspected together.
Rear dampers on a Tacoma see a lot of load on trail use and when hauling. Look for oil on the body, a knocking sound when the axle moves, or a rear end that keeps bouncing after a bump. Replacing rear shocks in pairs keeps the truck balanced when loaded, and fresh bushings keep the mounts from wearing unevenly.
- Check rear bump stops for wear
- Confirm the mounts line up before tightening
- Replace rear shocks in pairs
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | EXPPR2012 |
| Shock series | PRO-M |
| Position | Rear |
| Extended length | 22.6 in |
| Collapsed length | 14.5 in |
| Upper and lower mount | Loop |
| Lift | 0 to 2.5 in |
| Finish | Silver powder coat |
Vehicle fitment
It fits the 2005 to 2023 Toyota Tacoma, in several trims including Base, SR, SR5, TRD Off-Road, TRD Pro and X-Runner.
It is made for the Tacoma. Confirm fit for your vehicle’s year, model and trim before ordering, including 4Runner and Tundra applications.
Installation notes
Compare the 22.6 inch extended and 14.5 inch collapsed lengths with the Tacoma shock being replaced, since the length decides the ride height. Confirm the truck is within the 0 to 2.5 inch lift range before installing. The loop mounts at both ends should line up with the factory brackets, and the 2 inch body should be checked for clearance at full compression.
Confirm the truck is within the 0 to 2.5 inch lift range before installing, since the valving is tuned for that height. The loop mounts at both ends should line up with the factory brackets, and the shock should be checked for clearance at full compression. Test the damper by hand after installation.
Check the rear shock clears the spare tire carrier, if fitted, and the frame at full compression.
What’s included
One PRO-M rear monotube shock with polyurethane boot under part number EXPPR2012.
