Overview

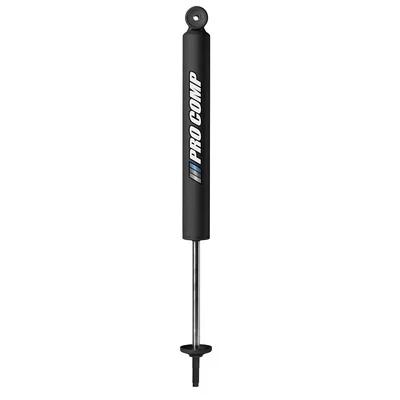

The Pro Comp PRO-X Twin Tube Shock, part number 921010B, is a nitrogen stabilized twin tube shock for the 2002–2008 Dodge Ram 1500. Pro Comp designed it for vehicles that see mostly paved roads with the occasional off-road trip.
The shock has 10-stage velocity sensitive valving, a 2.0-inch body, a 1-3/8 inch nylon banded piston and a 5/8-inch chrome hardened shaft. The unique Teflon rebound stop is part of the design. The extended length is 21.1 inches, the collapsed length is 12.7 inches and the travel length is 8.4 inches.
Key features
- Twin tube design with a Teflon rebound stop
- 10-stage velocity sensitive valving
- 5/8-inch chrome hardened shaft
- 1-3/8 inch nylon banded piston
- 2.0-inch body diameter
- Stem top mount with loop bottom mount
- Black powder coat finish
- Shock boot sold separately
Ride height and travel
The travel a shock uses depends on how the truck sits. Ride height, load and tire size all change how much of the stroke gets used, so a shock that looks right on paper can feel stiff or run short on a particular truck. Measuring the installed length on the vehicle gives a better picture than any figure taken off the bench.
Worn boots and bushings are common on trucks of this age. Look for splits in the boot, play at the mounts and fluid on the shock body. If the old shocks show any of these signs, replacing them is a reasonable step, and a pair keeps the ride even from side to side.
- Check boots for splits
- Feel for play at the mounts
- Measure installed length on the truck
- Replace shocks in pairs for an even ride
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | 921010B |
| Series | PRO-X |
| Shock type | Twin tube |
| Extended length | 21.1 inches |
| Collapsed length | 12.7 inches |
| Travel length | 8.4 inches |
| Body diameter | 2.0 inches |
| Upper mount | Stem |
| Lower mount | Loop |
| Piston | 1-3/8 inch nylon banded |
| Shaft | 5/8-inch chrome hardened |
| Gas charge | Nitrogen stabilized |
| Finish | Black powder coat |
| Shock boot | Optional, sold separately |
Vehicle fitment
It fits the 2002–2008 Dodge Ram 1500 across its trims.
The fitment data does not include other Ram models or the 2009 and later Ram 1500. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Measure the current shock’s collapsed and extended lengths before installing. The 12.7-inch collapsed length and 21.1-inch extended length are the figures to compare, along with the 8.4-inch travel length, since the truck’s ride height decides how much of that travel is used.
The shock is sold individually. The optional shock boot is a separate part, so plan on it if the old boots are worn. Pro Comp designed the valving for vehicles that see mostly paved roads with the occasional off-road trip.
What’s included
One shock absorber. Shock boots are sold separately.
