Overview

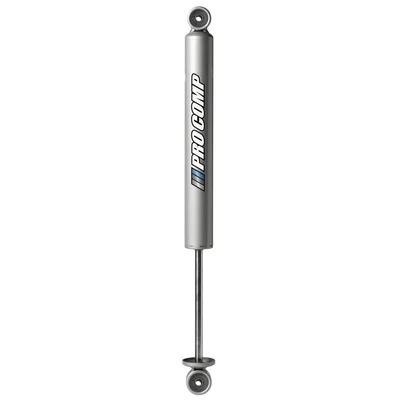

The Pro Comp Suspension PR2032 is a PRO-M front monotube shock for Ford Super Duty trucks from 2005 to 2016. It covers a lift range of 0 to 6 inches, and 6 inches is the top of that range.
Each shock is nitrogen gas charged, with a floating piston that separates oil and gas. Its wiper seal design helps keep the shock from leaking, and the valving is vehicle specific.
Key features
- Front monotube design for 0 to 6 inches of lift
- Extended length 25.8 inches, collapsed length 17 inches
- Nitrogen gas charged with floating piston
- Multi-stage disc pack valving
- 14 mm chrome hardened shaft
- Wiper seal design
- Polyurethane shock boot included
Wide lift range, careful fit
A shock rated across a broad lift range has to balance its length against both ends of that range, so the fit at the low end and high end of the lift can feel different. Measuring your truck’s current height and comparing it with the original front shock avoids surprises. A higher lift also moves the axle farther from the frame, which changes how much clearance the shock body needs at full extension.
Super Duty front ends are built to carry heavy loads, so the damper handles strong compression forces when the truck is towing or carrying a payload. Consistent damping depends on healthy bushings, tight fasteners, and clean seals. Trucks that see mud or water crossings should have the boot checked regularly, since debris can drive grit past the seal.
- Measure lift before choosing a shock
- Check loop bushings for play
- Wipe the shaft after water crossings
- Recheck steering clearance after the first drive
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | EXPPR2032 |
| Shock series | PRO-M |
| Position | Front |
| Extended length | 25.8 in |
| Collapsed length | 17 in |
| Upper mount | Loop |
| Lower mount | Loop |
| Lift | 0 to 6 in |
| Finish | Silver powder coat |
Vehicle fitment
It fits the 2005 to 2016 Ford F-250 Super Duty and F-350 Super Duty, in Cabela’s, FX4, Harley-Davidson Edition, King Ranch, Lariat, Platinum, XL and XLT trims.
Look at your truck’s year, model and trim before buying, including whether it is a 2017 or later Super Duty or an F-450 or F-550.
Installation notes
The lift range on this shock is wide, so confirm the lift on your Super Duty before ordering, and check the alignment afterward if the truck is raised. The 25.8 inch extended and 17 inch collapsed lengths should be compared with the original front shock. The loop mounts should be checked for fit and the boot inspected for clearance at full compression.
Measure the lift on your Super Duty before ordering, then check the loop mounts are seated and the shock clears the front spring and frame through full compression, and confirm the boot is seated correctly on the shaft.
Confirm the front shock clears the steering linkage and the brake hoses at full steering lock on both sides of the Super Duty.
What’s included
One PRO-M front monotube shock with polyurethane boot under part number EXPPR2032.
