Overview
The Bilstein 5160 Series 25-187786 is a rear reservoir shock absorber for the 2005–2016 Ford F-250 Super Duty and F-350 Super Duty. It is designed to fit in the stock shock mounting location on the truck, and Bilstein says no cutting or welding is required.
The unit uses a monotube design with digressive valving that provides full damping capability right away. The floating dividing piston sits in the remote reservoir rather than the shock body, allowing more shaft movement and wheel travel. The larger oil capacity in the reservoir helps heat dissipation and damping sensitivity.
The reservoir mount is designed for each vehicle application. The kit includes the mounting hardware and written instructions. The zinc-plated finish uses Bilstein’s Triple-C process.
Key features
- Installs in the stock shock mounting location
- Remote reservoir for more oil capacity and heat dissipation
- Floating dividing piston located in the reservoir for more shaft movement
- Digressive valving for full damping from the start
- Triple-C zinc finish
Reservoir placement and seal care
A reservoir shock on a heavy-duty pickup works under heavy loads, and the reservoir’s job is to hold extra oil that keeps the damping steady. Placement matters because the hose needs to flex with the axle without kinking. Route it up and away from road spray where possible, and keep it clear of the exhaust.
Seal and fitting care is simple. After washing the truck, look at the shock body and the hose for an oil film, since a weeping seal is easier to catch early. Touch up any chips in the zinc finish before rust spreads to the bracket and fasteners.
- Look for oil film after washing
- Touch up chips in the finish promptly
- Torque the reservoir bracket to the instructions
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 25-187786 |
| Shock series | 5160 Series |
| Position | Rear |
| Shock type | Reservoir, monotube |
| Mounting | Stock shock mounting location |
| Reservoir mount | Designed for each vehicle application |
| Finish | Triple-C zinc |
| Gas charge | Gas charged |
| Fitment type | Direct fit |
Vehicle fitment
This rear reservoir shock fits the 2005 through 2016 Ford F-250 Super Duty and the 2005 through 2016 Ford F-350 Super Duty.
Super Duty trucks from 2017 onward, the F-150 and the F-450 are not on this list. Confirm your vehicle’s year, model and trim before ordering.
What’s included

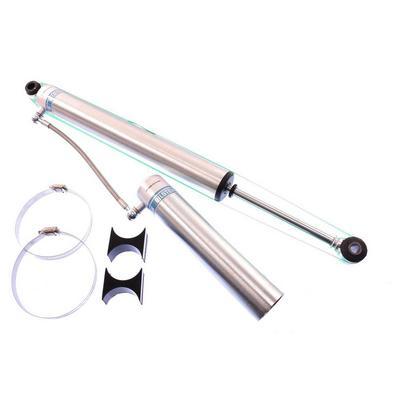

One rear reservoir shock, the reservoir mounting kit and detailed instructions.
Installation notes
The shock installs in the stock shock mounting location without cutting or welding. Follow the included instructions for the reservoir mount and route the hose clear of moving parts.
