Overview

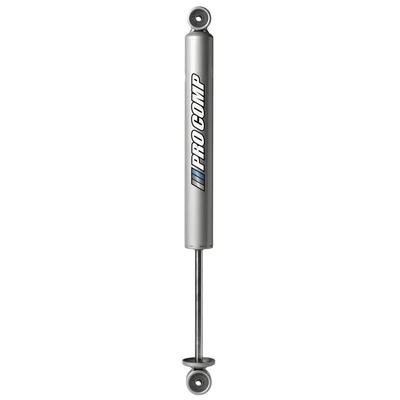

The Pro Comp Suspension PR2030 is a PRO-M front monotube shock designed for a 6 inch lift on Chevrolet and GMC heavy duty pickups. It fits the 2011 to 2026 Silverado 2500 HD and Sierra 2500 HD, along with several 3500 HD and 1500 models.
The shock uses a nitrogen gas charge, a floating piston and multi-stage disc pack valving. Its larger body helps with heat management during off-road use.
Key features
- Front monotube design for 6 inches of lift
- Extended length 24 inches, collapsed length 16.7 inches
- Nitrogen gas charged with floating piston
- Loop upper and lower mounts
- 14 mm chrome hardened shaft
Alignment after a big lift
A 6 inch lift changes the geometry of the front axle, which affects caster, camber and the angle of the front driveline. The shock is part of that system, and its length sets how much the axle can move before it reaches the end of its travel. After installation, a full alignment check and a look at the steering geometry help the truck track straight and keep tire wear even.
Heavier loads on a heavy duty truck make the front damper work harder over long distances, especially with a trailer or a loaded bed. Steady damping under those loads depends on sound mounts and a spring that is not worn out. When the truck is off-road, inspect the loop mounts after rough runs, since repeated impacts can loosen fasteners and cause early bushing wear.
- Check caster after lift work
- Inspect loop mount fasteners
- Verify driveline angles
- Recheck brake hose routing
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | EXPPR2030 |
| Shock series | PRO-M |
| Position | Front |
| Extended length | 24 in |
| Collapsed length | 16.7 in |
| Upper and lower mount | Loop |
| Lift | 6 in |
| Finish | Silver powder coat |
Vehicle fitment
It fits the 2011 to 2026 Chevrolet Silverado 2500 HD and 2011 to 2026 GMC Sierra 2500 HD, along with the 2011 to 2013 and 2019 Silverado and Sierra 3500 HD and the 2013 GMC Sierra 1500.
Confirm fit for the year, model and trim you own, since model years outside those named may differ.
Installation notes
A 6 inch lift on a heavy duty truck changes the front geometry, so check the alignment and the driveline angles after installation. The 24 inch extended and 16.7 inch collapsed lengths should be compared with the front shock being removed. Loop mounts at both ends need to line up with the factory brackets, and the shock should clear the frame and the front spring at full compression.
A 6 inch lift on a heavy duty truck affects caster and alignment, so have the front alignment checked after installation. Confirm the loop mounts are seated and the shock body clears the front spring and axle through full compression and droop.
Check the front shock clears the steering linkage and the brake hoses at full steering lock on both sides.
What’s included
One PRO-M front monotube shock with polyurethane boot under part number EXPPR2030.
