Pro Comp 6 Inch Stage 1 Suspension Lift Kit w/ ES9000 Rear Shocks – K006B

Pro Comp Suspension

Shop Nissan Titan Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch Stage 1 lift kit with ES9000 rear shocks for Nissan Titan

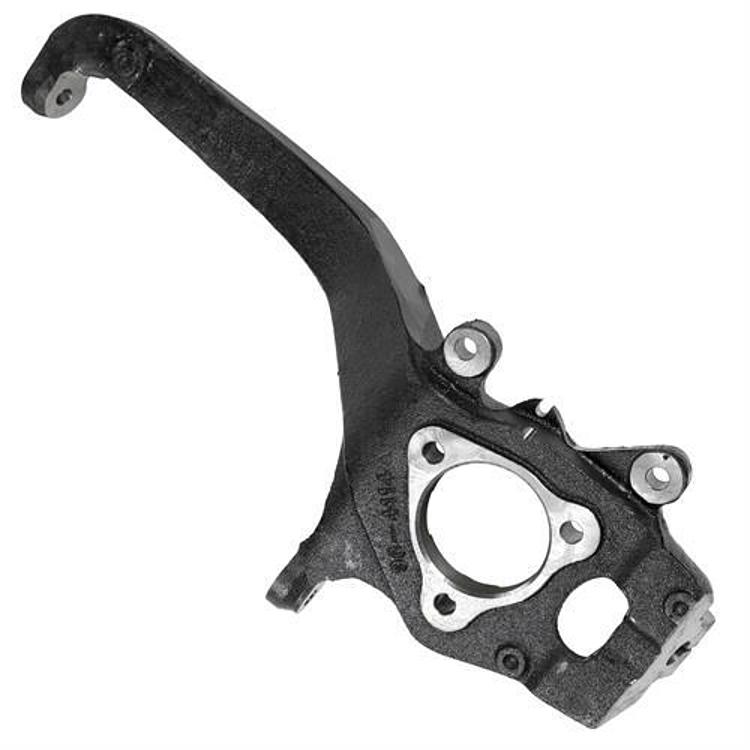

  • High strength extended steering knuckles that maintain OE geometry
  • Heavy duty one-piece front crossmembers with bump stop pads
  • 4-inch tapered lift blocks and 1-inch front bumper spacers for 35-inch tires

Description

Overview

The Pro Comp K6006B is a 6-inch Stage 1 suspension lift kit with ES9000 series rear shocks for the 2004–2015 and 2017–2018 Nissan Titan. The kit uses high strength extended steering knuckles that maintain OE geometry, and heavy duty one-piece front crossmembers with bump stop pads.

The rear is lifted with 4-inch tall tapered lift blocks. 1-inch front bumper spacers provide clearance for 35-inch tall tires on 18 to 20 inch rims with up to 5 inch back spacing. The kit is FMVSS126 compliant for use with factory stability control, and it does not fit XD models.

Key features

  • 6-inch lift height from a Stage 1 kit
  • High strength extended steering knuckles

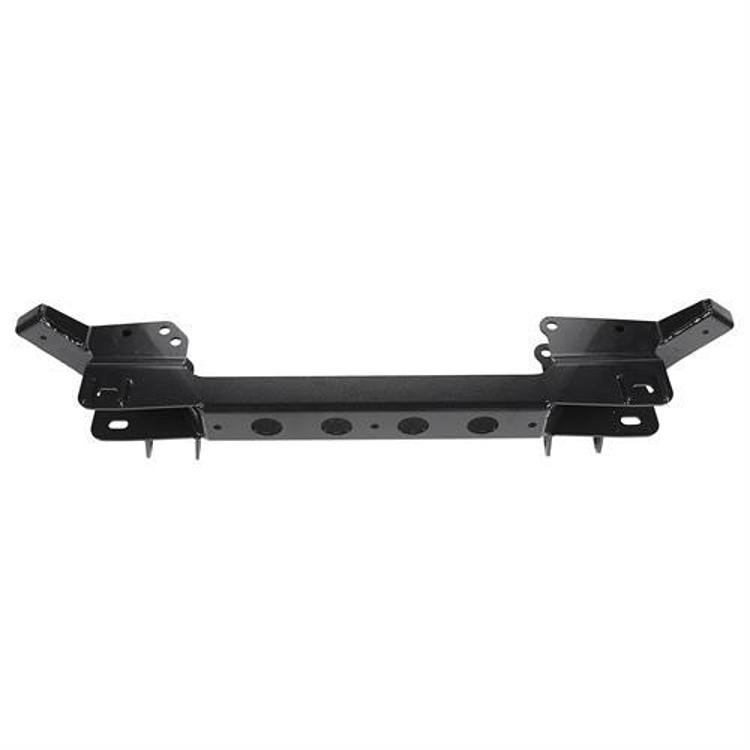

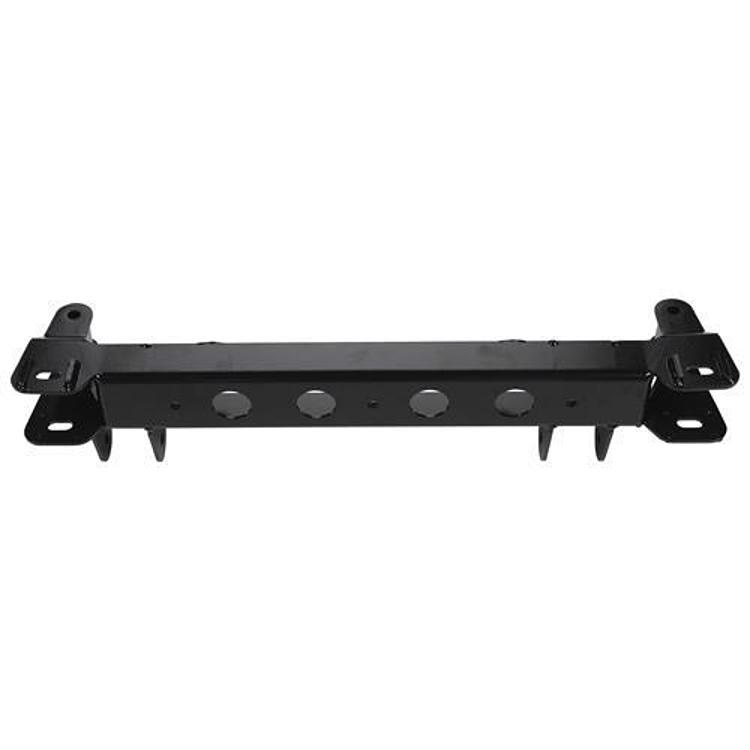

  • Heavy duty one-piece front crossmembers
  • Bump stop pads on the front crossmembers
  • 4-inch tall tapered lift blocks at the rear

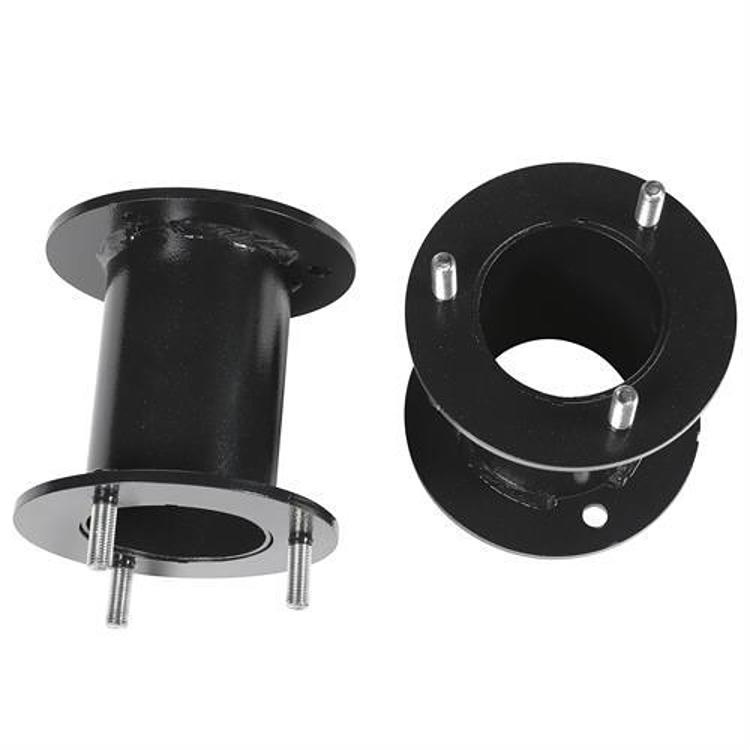

  • 1-inch front bumper spacers

Stage 1 lift considerations

Stage 1 kits are a common first step for a truck that sees mixed road and trail use. Extended knuckles and front crossmembers change the front geometry, so the steering and suspension angles need to be set after the work is finished. Plan on a shop visit for the alignment rather than trying to set it by feel.

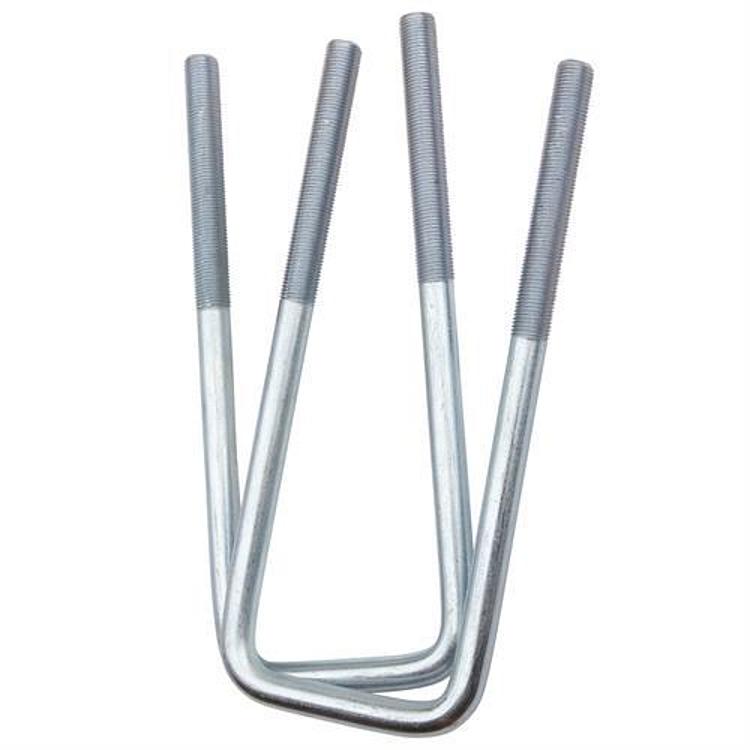

Rear blocks raise the axle without changing the leaf or coil arrangement. Over time the bolts and U-bolts can loosen, so re-torque them after the first few drives and recheck during regular service. Driveline angles can also change, so look for vibration at highway speed.

Check the brake lines and the ABS sensor wiring when the front geometry changes, since they can be stretched or pinched at full steering lock. Bump stops and crossmember bushings should be inspected for cracking and compression as the vehicle ages.

  • Re-torque rear block hardware after the first drives
  • Inspect brake hoses at full steering lock
  • Check bump stop pads for wear

Specifications

Brand Pro Comp Suspension
Part number K6006B
UPC 700008461961
Lift height 6 inch (lift height range 4 to 6 inches)
Lift kit stage Stage 1
Rear lift Block
Lift block height 4 inch tapered

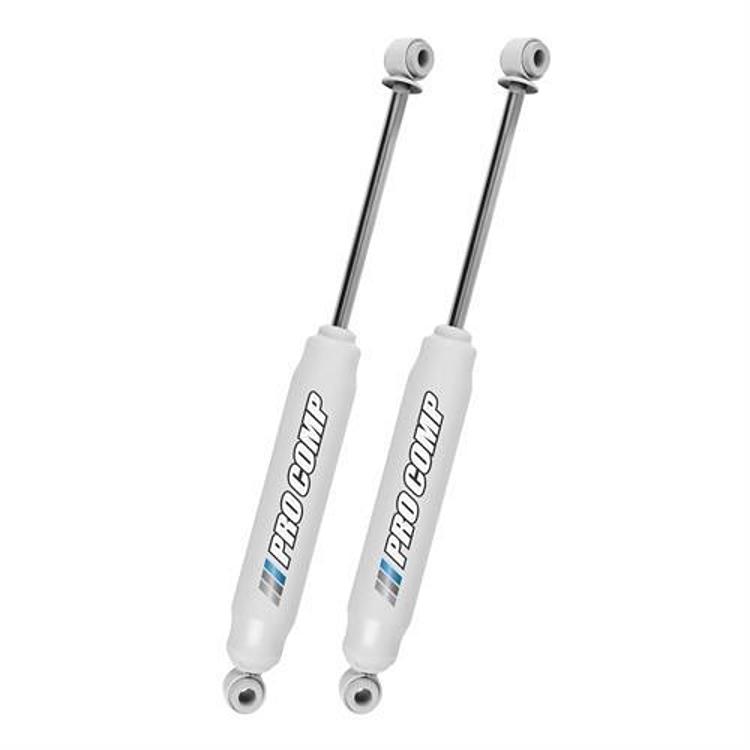

Rear shocks ES9000 series
Front bumper spacers 1 inch
Tire clearance 35-inch tall tires on 18 to 20 inch rims with up to 5 inch back spacing

Vehicle fitment

This kit covers the 2004–2015 and 2017–2018 Nissan Titan in the LE, PRO-4X, Platinum Reserve, S, SE, SL, SV and XE versions. The 2016 model year and XD models are not covered. Confirm your vehicle’s year, model and trim before ordering.

The list has a gap at the 2016 model year, and it does not cover XD models. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The extended knuckles and front crossmembers change the front geometry, so have the alignment checked and the brake lines inspected after installation.

What’s included

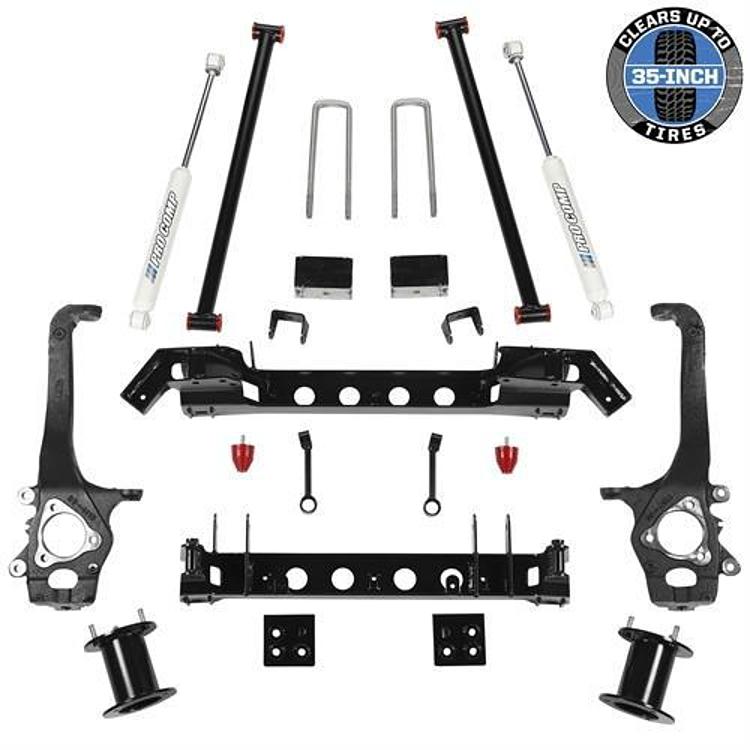

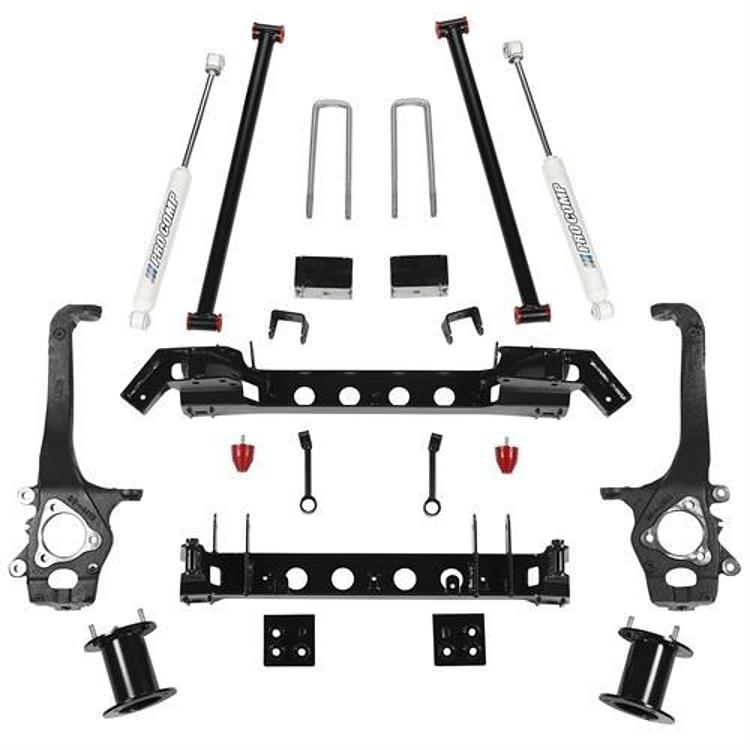

The kit includes the high strength extended steering knuckles, the one-piece front crossmembers with bump stop pads, the 4-inch tapered lift blocks, the 1-inch front bumper spacers, and ES9000 series rear shocks.

SKU: EXPK6006B Category:

Specification

Shipping weight 181.45 lbs
Package dimensions 48.00 × 24.00 × 23.00 in
brands

Fitment

VehicleYearsTrims
Nissan Titan2004–2015, 2017–2018LE, PRO-4X, Platinum Reserve, S, SE, SL, SV, XE

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K6006B fit a 2016 Titan?

No. The 2016 model year is not covered by this kit. It fits the 2004 through 2015 and 2017 through 2018 Nissan Titan, so confirm your truck's year before ordering.

Does it fit an XD model?

No. This kit does not fit XD models, so XD trucks should not be ordered for it. Confirm your model designation before ordering.

Can I upgrade the rear shocks?

A Pro Runner rear shock upgrade is available for this kit. The kit as supplied includes ES9000 series rear shocks, so an upgrade would be a separate purchase.

How often should lift hardware be re-checked?

Check it after the first few drives and then at each oil change or service interval. Look at the rear block bolts, the front crossmember fasteners and the knuckle hardware for looseness or witness marks. Tighten to the torque set for your vehicle.

Is a steering stabilizer or track bar check needed after a Stage 1 lift?

Often yes. A lift can change steering geometry, so inspect the tie rod ends, ball joints and steering stabilizer for play. Replace worn parts before the alignment so the new setup holds its settings.
