Overview
The Pro Comp K4071B is a 4-inch stage 1 coil spring lift for the 1981–1989 Ford F-150. The front uses coil springs with radius arm brackets, and the rear is raised with a block and U-bolt kit. The lift height range is 3 to 4.99 inches.
The kit includes bump stop extensions, a pitman arm for steering correction and extended length brake lines. ES3000 shocks are supplied at both ends. The shock boots are not included.
Key features
- 4-inch lift, stage 1
- Front coil springs with radius arm brackets
- Rear block and U-bolt lift
- Bump stop extensions
- Pitman arm steering correction
- Extended length brake lines
Block and U-bolt rear setup
A block and U-bolt rear lift relies on spacer blocks between the axle and the springs, which raises the body without changing the spring rates. Because the spacers are clamped with U-bolts, retighten the fasteners after the first drive and again after the first few trail outings, since clamp load can settle as the kit seats. Look for shifting blocks or elongated bolt holes during routine service.
The front radius arm brackets and coil springs change the front ride height, so the rear should be checked against the front before the vehicle is taken on rough ground. Extended length brake lines allow the wheels to move through the new travel, but they should be inspected for chafing where they pass near the frame. Pitman arm and tie rod adjustments often accompany this setup, so check steering centering after the lift is complete.
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4071B |
| UPC | 614901125160 |
| Lift | 4 inches, stage 1 |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Radius arm |
| Front lift | Coil springs with radius arm brackets |
| Rear lift | Block and U-bolt kit |
| Steering correction | Pitman arm |
| Front shocks | ES3000 |
| Rear shocks | ES3000 |
| Shock boots | Not included |
Vehicle fitment
It is designed for 1981–1989 Ford F-150 trucks. Verify year, model and trim against your truck before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A block and U-bolt rear lift with radius arm brackets changes the ride height at both ends, so check the alignment and the driveline angles after installation. Confirm the brake lines reach at the new height before the wheels are refitted.
What’s included

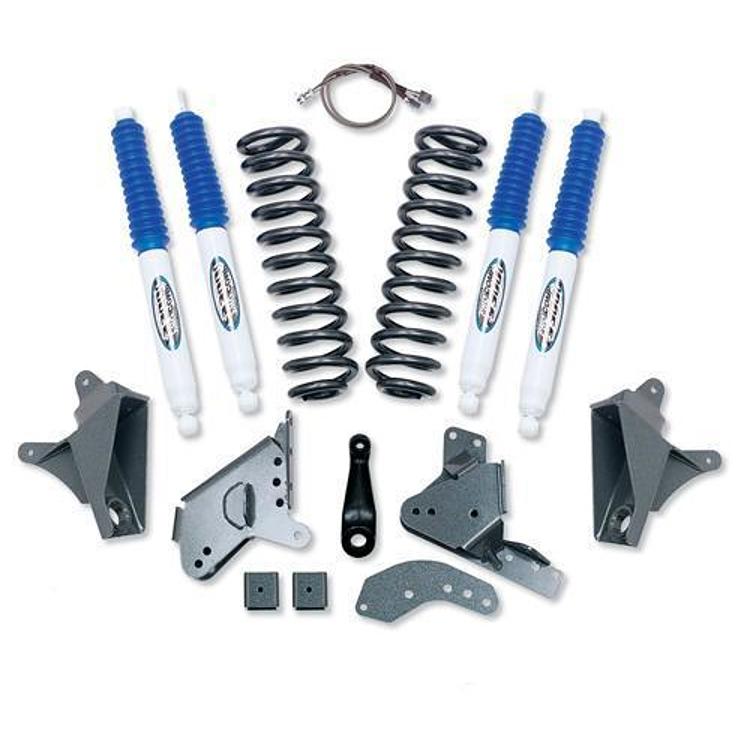

The kit includes front coil springs, radius arm brackets, bump stop extensions, a pitman arm, extended length brake lines, a rear block and U-bolt kit and ES3000 front and rear shocks. Shock boots are not included.
