Pro Comp 6 Inch Stage I Lift Kit with ES3000 Shocks – K1013

Pro Comp Suspension

Shop Chevrolet K10 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch stage I lift with leaf springs and U-bolts at the front
  • Steering arm correction and extended-length brake lines
  • Fits 1979-1986 Chevrolet and GMC K10, K5 Blazer and K1500 trucks
  • Part number K1013

Description

Overview

The Pro Comp 6 Inch Stage I Lift Kit with ES3000 Shocks, part number K1013, is a 6-inch lift for 1979-1986 Chevrolet K10 and K10 Suburban, Chevrolet K5 Blazer, GMC Jimmy, and GMC K1500 and K1500 Suburban trucks. It uses leaf springs and U-bolts at the front and a block and U-bolt kit with add-a-leaf components at the rear.

Steering correction is handled with a steering arm, and extended-length brake lines suit the higher ride height. ES3000 shocks are fitted at both ends, and the lift height range is 5 to 6.99 inches.

Key features

  • 6-inch stage I lift
  • Front leaf springs and U-bolts
  • Steering arm steering correction
  • Rear block and U-bolt kit with add-a-leafs
  • ES3000 front and rear shocks
  • Extended-length brake lines

Stage I lifts and drivetrain angles

A six-inch leaf spring lift changes the angles of the driveshaft and axle, and the steering arm changes the angle of the front linkage. Those changes can cause vibration if the driveshaft angle becomes too steep. Look at the driveshaft joints after installation and listen for new noises during the first few drives.

Extended-length brake lines help the hoses reach the raised axle, but they should be checked for chafing and tension once the truck is driven. Front and rear shocks work together with the springs to control the ride, so inspect them regularly. Replace worn bushings and loose U-bolts promptly to keep the lift steady and predictable on the road.

  • Check driveshaft angle and U-joints after installation
  • Inspect brake hoses for tension at full travel
  • Retighten U-bolts after the first few drives
  • Recheck the front alignment after the steering arm is set

Specifications

Brand Pro Comp Suspension
Part number K1013
UPC 614901122114
Lift height 6 inches, stage I
Lift height range 5 to 6.99 inches
Front suspension Leaf springs and U-bolts
Steering correction Steering arm
Rear lift Block and U-bolt kit with add-a-leafs
Shocks ES3000, front and rear (shock boots not included)
Fitment Direct fit

Vehicle fitment

The kit fits the 1979-1986 Chevrolet K10, the 1979-1986 Chevrolet K10 Suburban, the 1979-1986 Chevrolet K5 Blazer, the 1979-1986 GMC Jimmy, the 1979-1986 GMC K1500 and the 1979-1986 GMC K1500 Suburban.

Trucks from 1977 and 1978 and from 1987 on are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The steering arm and leaf spring front end change alignment, so have the front alignment checked after the kit is in.

What’s included

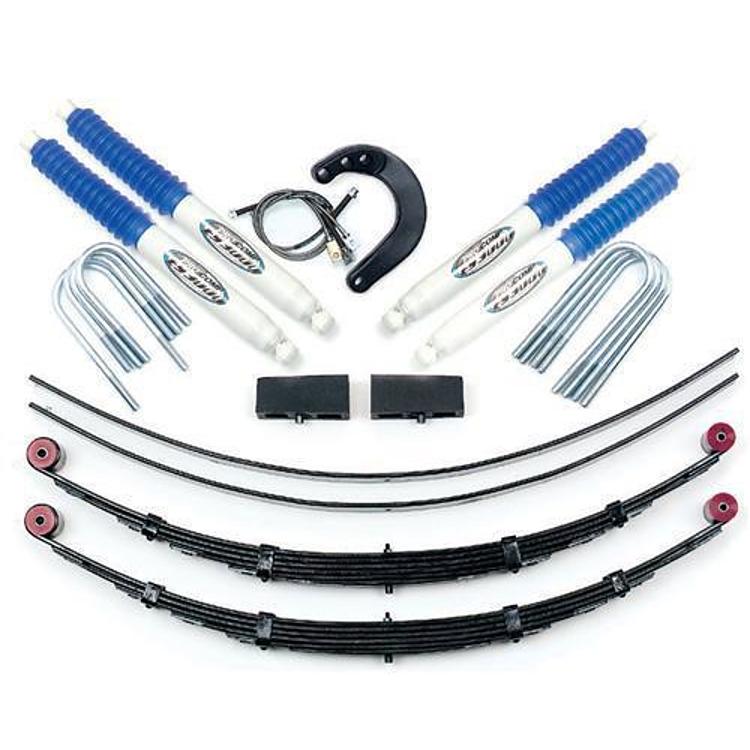

The kit includes front leaf springs and U-bolts, a steering arm, a rear block and U-bolt kit with add-a-leaf springs, ES3000 shocks, and extended-length brake lines.

SKU: EXPK1013 Category:

Specification

Shipping weight 190.83 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Chevrolet K101979–1986Cheyenne, Custom, Custom Deluxe, Deluxe, Scottsdale, Silverado
Chevrolet K10 Suburban1979–1986Custom, Custom Deluxe, Deluxe, Scottsdale, Silverado
Chevrolet K5 Blazer1979–1986Cheyenne, Custom, Custom Deluxe, Deluxe, Scottsdale, Silverado
GMC Jimmy1979–1986Base, High Sierra, Sierra Classic, Sierra Grande
GMC K15001979–1986Base, High Sierra, Sierra Classic, Sierra Grande
GMC K1500 Suburban1979–1986Base, High Sierra, Sierra Classic, Sierra Grande

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the K1013 fit a 1984 GMC Jimmy?

Yes. The kit fits the 1979-1986 GMC Jimmy, and a 1984 model falls within that range. The Jimmy fit covers the Base, High Sierra, Sierra Classic and Sierra Grande versions.

Does the K1013 include extended brake lines?

Yes. The kit includes extended-length brake lines, which suit the 6-inch height. Check that the new lines route cleanly through the frame and steering components after installation.

What is the lift height of the K1013?

It is a 6-inch stage I lift with a lift height range of 5 to 6.99 inches. The front uses leaf springs and U-bolts, and the rear uses a block kit with add-a-leafs, so the change is at both ends.

How often should U-bolts be inspected on a leaf spring lift?

Inspect them after the first few drives and at each oil change. Leaf spring U-bolts can loosen as the springs settle, which allows the axle to shift. Retighten them to the torque your vehicle requires, and check the nuts for thread damage.
