Overview
The K4203B is a 6-inch Stage 1 coil spring lift kit with ES9000 front and rear shocks for the 2017–2018 Ford F-250 and F-350 Super Duty. It is made for 4WD diesel models and is designed to clear tire sizes up to 37 inches.
The completely redesigned system uses precision laser cut radius arm drop brackets to correct the steering geometry while keeping the ride comfortable. A rear lift with blocks and U-bolts completes the package, and the spec table gives the lift height range as 5 to 6.99 inches.
Key features
- 6-inch lift height from a Stage 1 kit
- ES9000 front and rear shocks
- Precision laser cut radius arm drop brackets
- Steering geometry correction
- Designed to clear tires up to 37 inches
- Rear lift with blocks and U-bolts
Choosing tires and clearance
Tire clearance is shaped by more than the listed maximum size. Wheel offset, backspacing and the tire’s actual sidewall height all change how much room is left at full steering lock and over bumps. Before buying tires, measure the space in the wheel wells and test the steering with the chosen set in place, then plan on rechecking after the first few hundred miles of use.
Larger tires increase the load on the hubs, bearings and steering components, so inspect those parts more often after the upgrade. Rotate tires on schedule to keep wear even, and watch for rubbing on the inner fender liners, which can point to a clearance problem. Drop brackets and the rear block lift also affect how the tire sits in the wheel well, so the setup should be checked as a whole.
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4203B |
| UPC | 70000792323 |
| Lift height | 6 inch (lift height range 5 to 6.99 inches) |
| Lift kit stage | Stage 1 |
| Suspension type | Coil spring kit |
| Rear lift | Lift blocks and U-bolts |
| Front shocks | ES9000 |
| Maximum tire size | Designed to clear up to 37 inch tires |
| Applies to | 4WD diesel models |
Vehicle fitment
Fitment covers the 2017–2018 F-250 Super Duty and F-350 Super Duty in the King Ranch, Lariat, Limited, Platinum, XL and XLT versions.
The listed years are 2017 and 2018 only, so earlier Super Duty trucks and the 2019 and newer generation are not included. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Tire clearance depends on wheel offset and the rest of the build, so check the 37-inch clearance once installed and have the alignment checked after the lift.

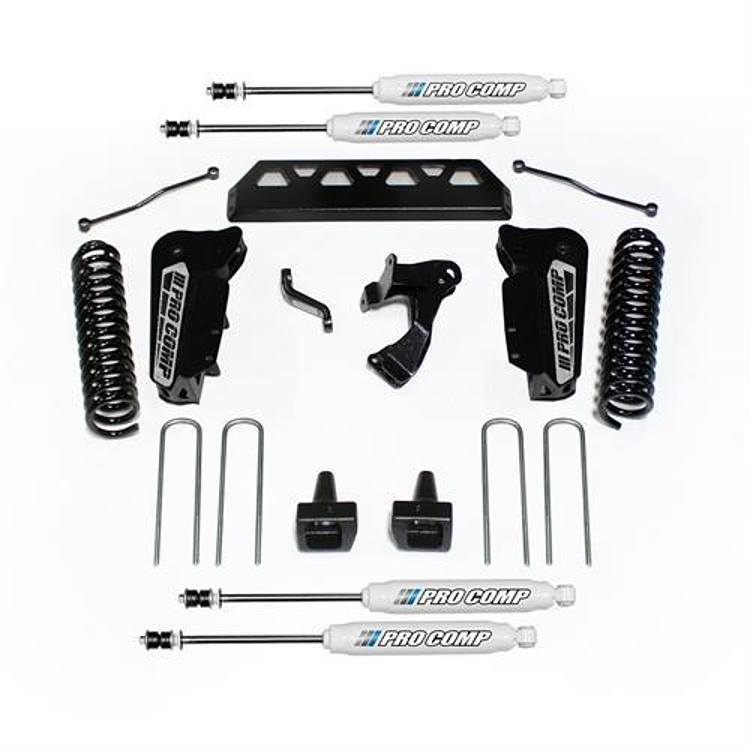

What’s included
The kit includes the coil spring components, radius arm drop brackets, the block and U-bolt rear lift, and ES9000 front and rear shocks.
