Overview
The Power Stop Z36-1775 is a set of rear Z36 Truck & Tow ceramic brake pads with hardware for the 2015–2019 Ford Transit-150, Transit-250, Transit-350 and Transit-350 HD vans.
Carbon fiber is mixed into the low-dust ceramic for strength. The pads are an upgrade over stock brakes for people who tow and haul and for off-road use. They reduce dust and noise and provide severe-duty stopping power for trucks and vans.
Key features
- Rear brake pads, supplied as a pair
- Low-dust ceramic formula infused with carbon fiber
- Thermal-scorched surface
- Chamfered and slotted like OE
- Powder coated backing plate
- Noise-insulating shims
- Stainless-steel hardware and ceramic lubricant included
Towing with a Transit van
A Transit used for hauling tools, equipment or a trailer puts steady load on the brakes, so the rear pads see more heat than in a lightly loaded van. Heat from repeated stops can make a pad fade, so use lower gears on long downhill stretches and avoid resting a foot on the pedal.
Changing rear pads is a good time to look at the drum or rotor, the caliper and the hardware. Replace worn clips and check that the pads move freely in the caliper bracket. Bedding in new pads with a series of moderate stops helps the friction layer settle before a heavy load is added.
- Use lower gears on long downhill runs
- Check the caliper bracket for free movement
- Bed in new pads before towing
Specifications
| Brand | Power Stop |
|---|---|
| Part number | Z36-1775 |
| Series | Z36 Extreme Severe Duty Truck & Tow |
| Axle position | Rear |
| Fit type | Direct fit |
| Pad formula | Ceramic infused with carbon fiber |
| Backing plate | Powder coated |
| Quantity | 1 pair |
Vehicle fitment
It fits the 2015–2019 Ford Transit-150, Transit-250, Transit-350 and Transit-350 HD vans, all within one year range.
Transit vans built after 2019 are not on this list, and the entry is for the rear axle only, so front pads are a separate part number for the van. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Hardware and ceramic lubricant are in the box, which Power Stop says makes the rear brake job easier to complete.
What’s included

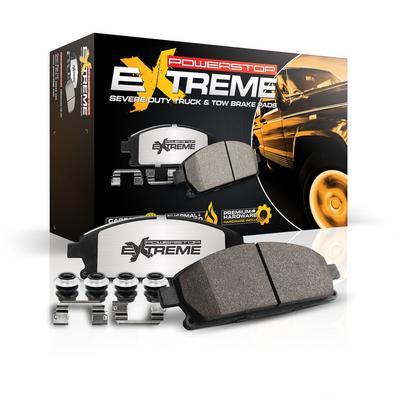

- Rear Z36 ceramic brake pads (pair)
- Stainless-steel hardware
- Ceramic brake lubricant
Not included: Rotors and front pads.
