Overview

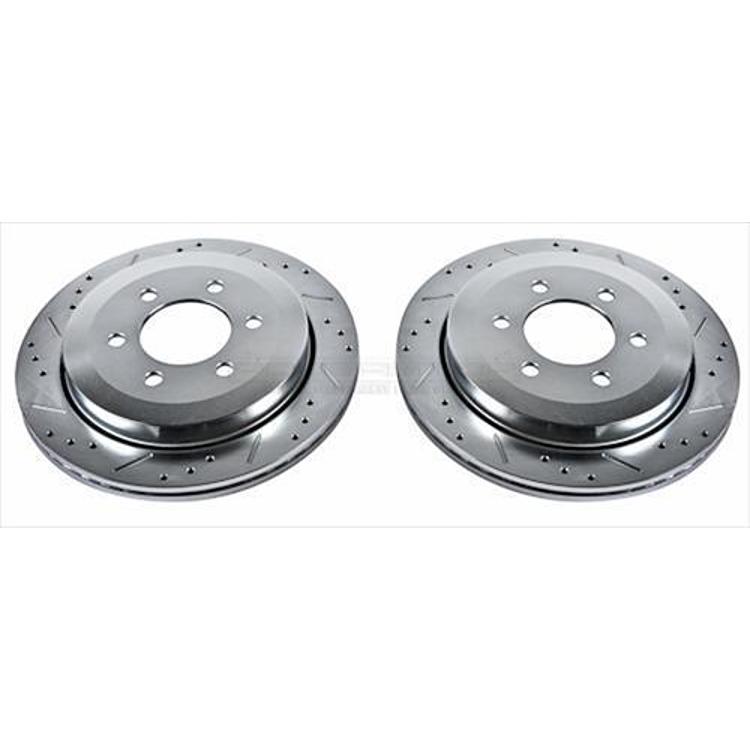

The Power Stop AR85124XPR is a rear slotted and cross-drilled brake rotor for the 2007–2014 and 2017 Ford Expedition and Expedition EL and the 2007–2017 Lincoln Navigator and Navigator L.
Slotted for pad degassing and cross-drilled for cooling, the Evolution rotor is built for owners who want both features on one disc. Power Stop claims cross-drilled holes keep the rotor up to 180°F cooler.
Key features
- Power Stop credits the cross-drilled holes with rotor temperatures up to 180°F lower
- Slots keep a clear contact patch between the pad and the rotor
- Tru-Cast technology with precision machining
- Runout specification of 0.0015 and DTV specification of 0.005
- Balanced by milling, as with all Evolution rotors
- Zinc plated finish in silver for corrosion resistance
- G3000 grade casting
- Aimed at reducing fade
- Styled to look right behind factory or aftermarket wheels.
Brake heat and heavier loads
Full-size SUVs carry more weight than most passenger cars, and that weight raises the heat a rear brake system must absorb on long descents and while towing. Rotor material and cooling design both matter here, so a rotor with cooling holes and a clear pad contact area helps the braking surface shed heat more evenly during repeated stops.
Heat is the main cause of fade, which is the loss of stopping power after repeated hard braking. Let the brakes cool between long descents, use a lower gear to limit how often the pedal is needed, and avoid resting a foot on the brake pedal, which keeps the pads pressed against a hot rotor.
- Check rear pads after towing trips
- Watch for a soft or spongy pedal on long descents
- Replace the rotor if it shows heat checks or blue discoloration
Specifications
| Brand | Power Stop |
|---|---|
| Part number | AR85124XPR |
| UPC | 792088917447 |
| Product line | Power Stop Evolution |
| Position | Rear |
| Rotor type | Slotted and cross drilled |
| Material | G3000 grade cast |
| Finish | Silver zinc plated |
| Runout | Within 0.0015 |
| DTV tolerance | Within 0.005 |
| Balance | Mill balanced |
| Coating | Coated |
| Cooling holes | Beveled, precision-drilled cross holes; Power Stop says they keep rotors up to 180°F cooler |
| Slots | Rounded slots that sweep a clear contact patch between pad and rotor |
| Manufacturing | Tru-Cast technology, precision machined |
| Fade | The rotor is built to reduce brake fade. |
| Appearance | The drilled and slotted face suits both custom and factory wheels. |
| Plating note | All drilled and slotted rotors except hub and rotor assemblies are silver zinc plated |
| Fit | Direct fit |
Vehicle fitment
The AR85124XPR is a rear rotor for the 2007–2014 and 2017 Ford Expedition and Expedition EL and the 2007–2017 Lincoln Navigator and Navigator L. The 2015–2016 Expedition and the 2018 Navigator are not covered, so check your year, model and trim against this rotor before buying.
Listed vehicles:
- 2007–2014, 2017 Ford Expedition (Eddie Bauer, Funkmaster Flex Edition, King Ranch, Limited, Platinum, SSV, XL, XLT)
- 2007–2014, 2017 Ford Expedition EL (Eddie Bauer, King Ranch, Limited, Platinum, SSV, XL, XLT)
- 2007–2017 Lincoln Navigator (Base, Luxury, Reserve, Select, Ultimate)
- 2007–2017 Lincoln Navigator L (Luxury, Reserve, Select, Ultimate)
The 2015–2016 Expedition and the 2018 Navigator are not in this list. Confirm your vehicle’s year, model and trim before ordering.
