Overview

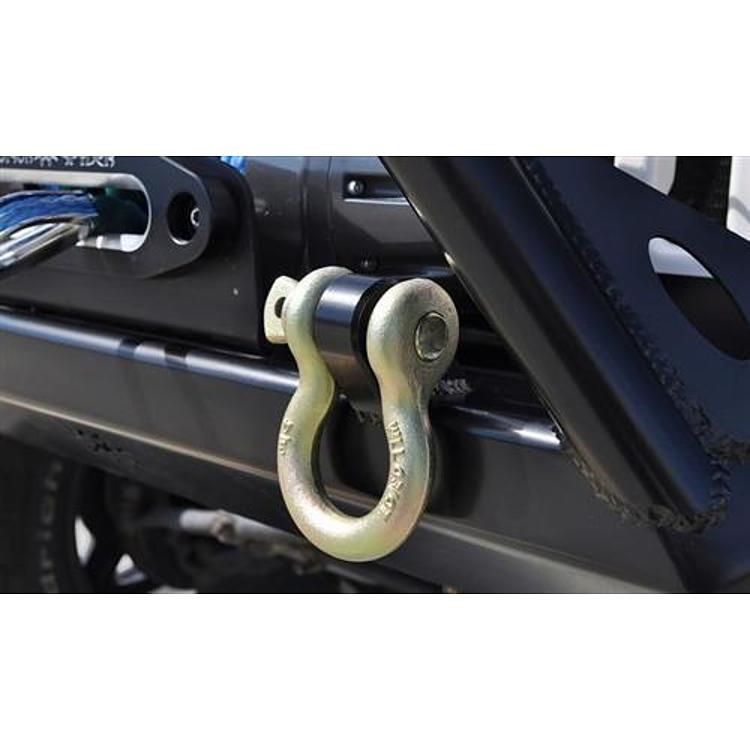

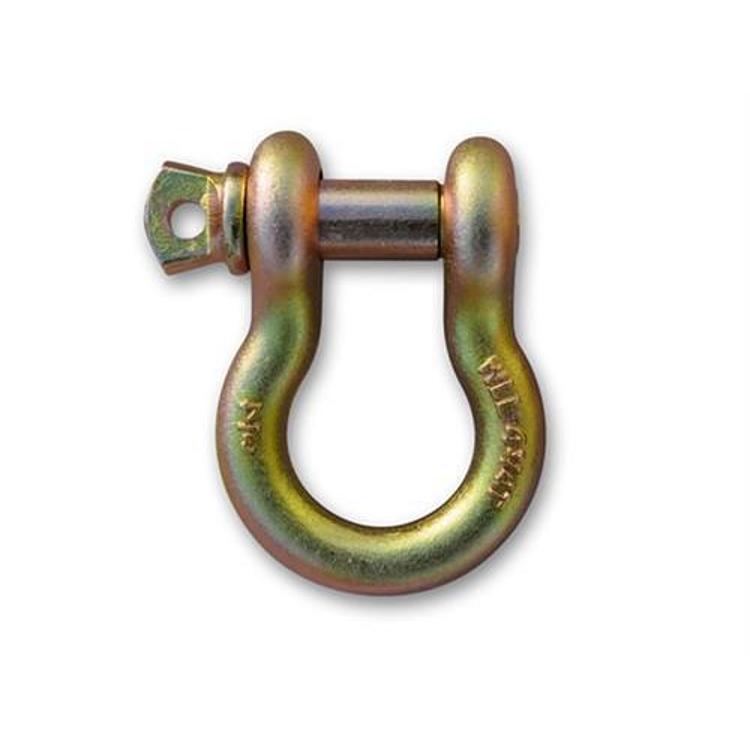

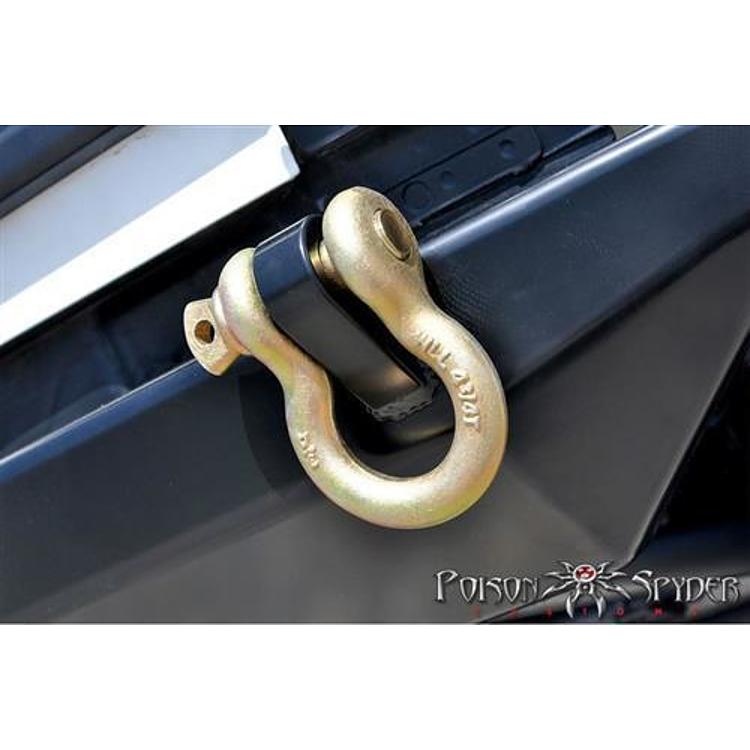

The Poison Spyder Customs 3/4 Inch Recovery Shackle in zinc coating, part number 56-16-010, is a D-ring shackle rated for a working load limit of 4-3/4 tons. It is made of steel with a yellow zinc plating for corrosion resistance and is used for rigging recovery straps and winch cables.
The heavy-duty D-ring and 7/8-inch threaded pin are built for quick, safe rigging. The shackle is universal fit, so it is not built for a specific vehicle.
Key features
- Working load limit of 4-3/4 tons
- Heavy-duty D-ring
- 7/8-inch threaded pin
- Yellow zinc plated steel for corrosion resistance
Choosing rigging hardware
A shackle is only as strong as the weakest part of the rigging, so the load rating should cover the full setup rather than the shackle alone. Straps, winch cables and rope rings all have their own limits, and the lowest rating in the chain sets the safe working load. Match the shackle to the heaviest pull you expect, not the lightest.
Inspect the shackle before each use. Look for bent pins, cracked welds, deep gouges and galling on the threads, since any of these can reduce capacity. Keep the pin fully seated and tightened, and avoid side loading the shackle, which is weaker than a straight pull. Store it dry so the zinc coating keeps resisting corrosion.
- Confirm the lowest rating in the rigging chain
- Inspect pin threads before each use
- Avoid side loading the shackle
Specifications
| Brand | Poison Spyder Customs |
|---|---|
| Part number | 56-16-010 |
| UPC | 614901732023 |
| Shackle size | 3/4 inch |
| Working load limit | 4-3/4 tons |
| Pin diameter | 7/8 inch, threaded |
| Finish | Yellow zinc plated |
| Material | Steel |
| Quantity | Each |
Vehicle fitment
It is universal fit and is not vehicle-specific. Match the working load limit to the recovery straps and winch cables you use.
Installation notes
Use the shackle with recovery straps and winch cables rated for the same load. Do not exceed the 4-3/4 ton working load limit.
