Overview

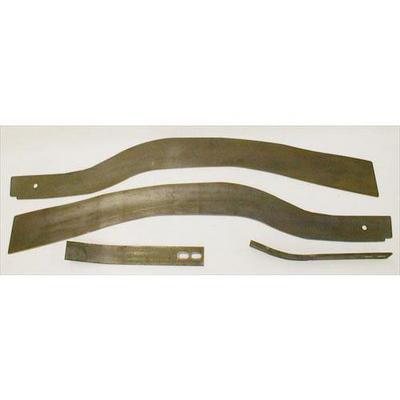

The Mountain Off Road Enterprises Rear Frame Reinforcing Plates, part FP200, are a four-piece set for the rear frame of the 1984-2001 Jeep Cherokee (XJ).
The main plates are 3-1/2 feet long. They start at the rear body mount outrigger, run up over the rear axle and end at the rear crossmember. A pair of lower plates reinforces the shackle hanger area of the frame.
The plates reinforce the length of the rear frame along the main rails. Inspect the frame for cracks and rust near the plate locations before fitting.
Key features
- Main plates 3-1/2 feet long
- Runs from the rear body mount outrigger to the rear crossmember
- Goes over the rear axle
- Two lower plates for the shackle hanger area
- Four pieces per set
Frame reinforcement on older Jeeps
Older Jeeps see stress at the rear frame, especially where the axle and shackles load the rails. Reinforcing plates spread that load along a longer section of the frame, so the stress is not concentrated at one point. Before installing, clean the frame surfaces and look for cracks, sagging or previous repairs that need attention first.
Plan the installation before starting, including how the plates will be secured and where the axle and brake lines sit. Check that the shackle hangers and body mounts still have full travel once the plates are in place. After the first few drives off road, inspect the frame welds and surrounding metal for cracks, and recheck fasteners.
- Check the frame for cracks before fitting
- Confirm clearance around the axle and brake lines
- Inspect welds and fasteners after the first drives
Specifications
| Brand | Mountain Off Road Enterprises |
|---|---|
| Part number | FP200 |
| Position | Rear frame |
| Length of main plates | 3-1/2 feet |
| Pieces per set | 4 |
Vehicle fitment
The set fits the 1984-2001 Jeep Cherokee XJ in Base, Briarwood, Chief, Classic, Country, Laredo, Limited, Pioneer, SE and Sport trims.
Grand Cherokee ZJ and WJ models and the Liberty KJ fall outside this set’s coverage. Match the year, model and trim to your vehicle before ordering.
What’s included
Four pieces: the rear frame plates and the two lower shackle hanger plates.
