Trail Gear Frame Plate/IFS Box Mount Kit – 130093-1-KIT

Trail Gear

Shop Toyota Tacoma Frame Stiffener on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Frame plate and IFS box mount kit for 1995-2004 Toyota Tacoma
  • 3/16 inch steel brace from the VIN stamp to the body mount
  • Built-in IFS steering box mount for an ’86-’95 1/2 Hilux steering box
  • For solid axle conversions
  • Part number 130093-1-KIT from Trail Gear

Description

Overview

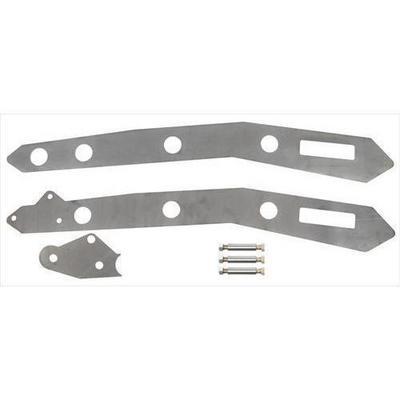

The Trail Gear Frame Plate and IFS Box Mount Kit, part 130093-1-KIT, is a frame bracing kit for the 1995-2004 Toyota Tacoma. It is intended for early model Tacomas from 1995 1/2 to 2004 that have had or will have a solid axle conversion.

The kit adds a 3/16 inch steel brace from the VIN stamp to the body mount. The brace makes the frame stronger than stock and gives a solid place to weld shock hoops. It includes an IFS box mount that accepts an IFS steering box from an ’86-’95 1/2 Hilux Toyota.

The brace runs from the VIN stamp to the body mount. Measure the frame before ordering to confirm the length needed.

Key features

  • 3/16 inch steel brace from the VIN stamp to the body mount
  • Built-in IFS steering box mount
  • Accepts an IFS steering box from an ’86-’95 1/2 Hilux Toyota
  • Makes the frame stronger than stock
  • Gives a solid place to weld shock hoops

Solid axle conversions

A solid axle conversion changes the front steering and frame layout, so the frame brace often becomes the main point of structural change. Bracing near the VIN stamp and body mount can help the frame handle the new axle loads, but it does not replace the rest of the conversion work.

Plan the steering, shock and brake changes together with the brace. Check that the steering box mount lines up with the linkage, and make sure any welded shock hoops sit square before finishing the weld. Inspect welds after the first few trail runs, since early loads often show where a joint needs more attention.

  • Verify steering linkage alignment before final welds
  • Confirm shock hoop placement and clearance
  • Inspect welds for cracks after early use
  • Plan brake line routing around the new axle

Specifications

Brand Trail Gear
Part number 130093-1-KIT
Position Frame, VIN stamp to body mount
Thickness 3/16 inch steel
Mount IFS steering box mount for ’86-’95 1/2 Hilux steering box

Vehicle fitment

It fits the 1995-2004 Toyota Tacoma, including Base, DLX, Limited, Pre Runner, S-Runner and SR5 trims.

It does not fit Tacoma generations before 1995 or after 2004. Confirm fit for your vehicle’s year, model and trim before ordering.

Installation notes

The kit is for vehicles with a solid axle conversion. The brace is steel with the box mount built in. Plan the full installation steps before starting, and use the brace as a solid place to weld shock hoops.

What’s included

This is the frame plate and IFS box mount kit.

Not included: the IFS steering box and the solid axle conversion parts.

Fitment

VehicleYearsTrims
Toyota Tacoma1995–2004Base, DLX, Limited, Pre Runner, S-Runner, SR5

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does 130093-1-KIT fit a 2001 Toyota Tacoma?

Yes. The kit fits the 1995-2004 Toyota Tacoma, which includes 2001 models in Base, DLX, Limited, Pre Runner, S-Runner and SR5 trims. Confirm your trim before ordering.

What steering box does the mount take?

The IFS box mount accepts an IFS steering box from an '86-'95 1/2 Hilux Toyota. Use an IFS steering box from that Hilux range with this mount.

Is the kit only for solid axle conversions?

Yes. The kit is intended for vehicles that have had or will have a solid axle conversion on an early model Tacoma. Its brace and box mount are designed for that use.

What should be checked on the frame before a solid axle conversion?

Check the frame for rust, cracks and sagging near the body mount and VIN stamp area before adding any brace. Sound metal gives the brace a better place to hold, and any weak sections should be addressed before welding.
