Overview

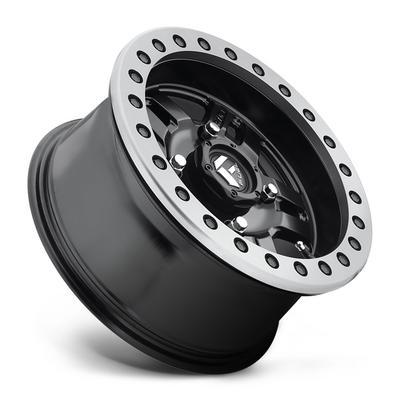

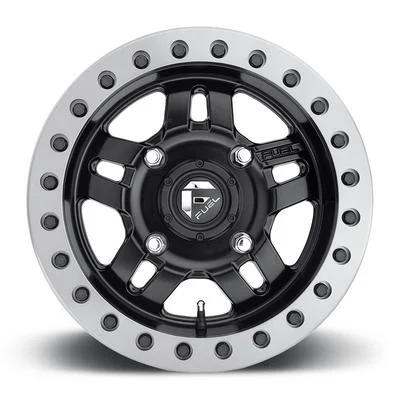

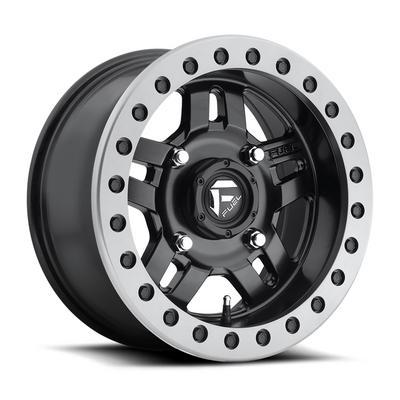

The FUEL Off-Road Anza D917 Beadlock Wheel (part number MHTD9171470A643) is a 14×7 aluminum UTV wheel with a 4 on 136 bolt pattern, a 4.35 backspace and a matte black finish. The wheel has an anthracite beadlock ring. The 14×7 size, 4 on 136 bolt pattern and 4.35 backspace are the three figures that decide whether it will mount on a given machine.
A beadlock wheel uses a separate ring to clamp the tire bead to the rim, which keeps the tire seated when run at low pressure. This wheel is aluminum, with a matte black finish and an anthracite beadlock ring.
Key features
- 14×7 aluminum wheel for UTVs
- Beadlock design with an anthracite beadlock ring
- Matte black finish
- 4 on 136 bolt pattern
- 4.35 backspace
Beadlock rings and tire changes
Beadlock rings change how a tire is mounted and removed. The ring bolts to the wheel and clamps the bead, so the tire has to be seated with the ring in place and the bolts tightened evenly. Mounting a tire on a beadlock wheel takes more time than on a standard wheel and calls for a bead breaker and an air compressor.
Beadlock rings add weight and need periodic checks. Inspect the ring bolts and seal after the first few runs and before each long trip, because loose bolts or a damaged seal can let air escape. Keep spare bolts of the correct size on hand.
- Tighten ring bolts in a cross pattern
- Inspect the ring seal before each mount
- Check ring bolts after the first few trail runs
- Keep a bead breaker available for mounting
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD9171470A643 |
| Wheel size | 14×7 |
| Bolt pattern | 4 on 136 |
| Backspace | 4.35 |
| Beadlock | Yes |
| Beadlock ring color | Anthracite |
| Finish | Matte black |
| Wheel type | UTV |
| Style | D917 Anza |
| Material | Aluminum |
Vehicle fitment
Confirm fit for your UTV’s year, model and trim before ordering, and match the 4 on 136 bolt pattern, 14×7 size and 4.35 backspace to your machine’s hub and clearance.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Backspace is the distance from the wheel’s mounting surface to its inner edge. Check that the backspace and bolt pattern match your axle and hub before mounting, since a wheel that sits too far in or out can rub.
What’s included
One wheel with its anthracite beadlock ring.
Not included: tires.
