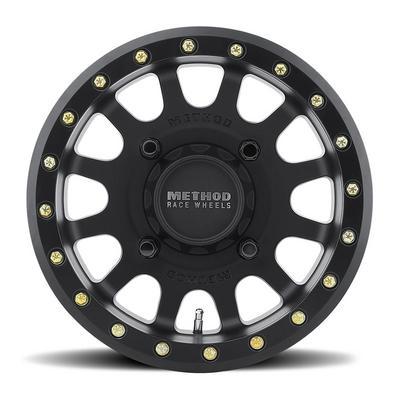

Method Race Wheels UTV Series 401 Beadlock, 14x7 with 4 on 136 Bolt Pattern – Black – MR40147047543B

Method Race Wheels

$320.50In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 12:40 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Method Race Wheels 401 UTV Beadlock, 14×7, black
  • Forged 6061 beadlock ring with Grade 8 zinc plated hardware
  • 4 on 136 bolt pattern, backspace 4+3
  • Load rating of 1600 lbs, part MR40147047543B

Description

Overview

The Method Race Wheels UTV Series 401 Beadlock in 14×7 and black, part MR40147047543B, has a 4 on 136 bolt pattern and a 4+3 backspace. It includes a forged 6061 beadlock ring and carries a 1600 lb load rating.

The 401 is built for serious racers and enthusiasts. The matte black wheel and ring belong to a line available from 12 to 15 inches, so the wheel can be matched to a range of UTV setups.

Method describes its wheels as designed and developed for race and street applications, with a focus on performance. The beadlock design uses the ring to clamp the tire bead to the wheel.

Key features

  • Forged 6061 beadlock ring
  • Grade 8 zinc plated mounting hardware
  • Matte black finish on the wheel and ring
  • 4 on 136 bolt pattern in a 14×7 size
  • Load rating of 1600 lbs
  • Backspace of 4+3

Beadlock rings and UTV use

A beadlock ring clamps the tire bead to the wheel, which lets the tire run at low pressure without slipping off the rim. That matters on sand, rock and mud, where lower pressure gives more grip and a softer ride. The ring and its hardware take the clamping load, so they must be sound before every run.

Beadlock setups need regular attention. Hardware can settle during the first few runs as the tire seats, so re-check the fasteners and retighten them to the correct torque. Look for gaps between the ring and the wheel, bent ring edges or worn bead seats. Keep spare hardware on hand, and replace any fastener that shows thread damage.

  • Inspect the ring for cracks or bends
  • Check bead seats for wear or pitting
  • Re-torque hardware after the first runs
  • Keep a tire repair kit and pump in the vehicle

Specifications

Brand Method Race Wheels
Part number MR40147047543B
Style 401 Beadlock
Wheel size 14×7
Diameter 14 inches
Backspace 4+3
Beadlock Yes
Beadlock ring Forged 6061
Mounting hardware Grade 8 zinc plated
Finish Matte black
Bolt pattern 4 on 136
Load rating 1600 lbs
Wheel type UTV
Fit type Universal fit

Vehicle fitment

Fit depends on the 4 on 136 bolt pattern and the 4+3 backspace matching your UTV’s hub and clearance. Confirm fit for your vehicle’s year, model and trim before ordering.

Installation notes

Fasten the beadlock ring and its hardware in the order the beadlock design requires before running the wheel.

What’s included

A forged 6061 beadlock ring and Grade 8 zinc plated mounting hardware.

SKU: MRWMR40147047543B Categories: , ,

Questions & Answers

What load rating does the Method 401 14x7 beadlock wheel have?

The 14x7 wheel has a 1600 lb load rating. The 401 UTV Beadlock is also made in 12 to 15 inch sizes, so the rating here applies to this 14x7 model.

Does the wheel come with the beadlock ring and hardware?

Yes. The wheel comes with a forged 6061 beadlock ring and Grade 8 zinc plated mounting hardware, so the ring and fasteners arrive with the wheel.

Is the 14x7 401 wheel a beadlock design?

Yes. This 14x7 401 is a beadlock design in the 401 UTV Beadlock style, with a 4 on 136 bolt pattern and a 4+3 backspace. Check those figures against your UTV before ordering.

How often should beadlock hardware be checked?

Check it before the first trail run and after every few outings, since beadlock hardware can loosen as the tire seats and the ring settles. Look for gaps, bent ring edges or worn bead seats, and retighten to the correct torque.
