Method Race Wheels UTV Series 403 Mesh, 14x7 with 4 on 156 Bolt Pattern – Black – MR40347046552

Method Race Wheels

Shop Method Race Wheels UTV Wheels 14x7 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Method Race Wheels UTV Series 403 Mesh, black, 14×7
  • Non-beadlock mesh design
  • Replaceable stainless steel decorative bolts on the outer lip
  • Screw-on hub cover
  • Bolt pattern 4 on 156, backspace 5+2

Description

Overview

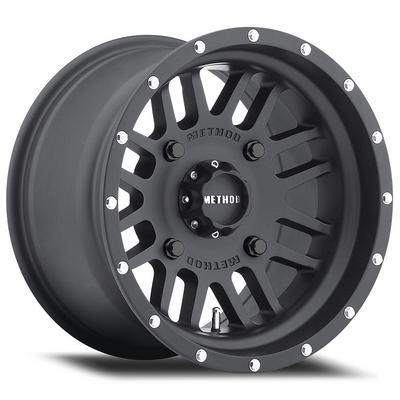

The Method Race Wheels UTV Series 403 Mesh is a non-beadlock 14×7 UTV wheel in black with a 4 on 156 bolt pattern and a 5+2 backspace. Method says its mesh face is styled like the 406 UTV Beadlock, but the 403 is a non-beadlock wheel.

The face has replaceable stainless steel decorative bolts around the outer lip and a screw-on hub cover. Method says applications range from 12 inch to 14 inch, with widths and offsets chosen for the fitment and vehicle setup you need.

Key features

  • Non-beadlock mesh design
  • Styling similar to the 406 UTV Beadlock
  • Replaceable stainless steel decorative bolts
  • Screw-on hub cover
  • Black finish

Mounting a non-beadlock wheel

A non-beadlock wheel holds the tire bead through tire pressure and the seat on the rim rather than a locking ring. Before mounting, clean the bead seat, lubricate the bead with a tire-safe product and inflate slowly so the bead seats evenly on both sides. Check the valve stem and rim edge for burrs, since a small defect can leak air at low pressure.

After the first runs, look at the decorative bolts and hub cover for looseness, and inspect the wheel face for cracks near the lug holes. Mesh faces collect mud and grass, so rinse them after off-road use to keep the openings clear for inspection.

  • Check the bead seat after every tire change
  • Recheck lug nuts after the first trail runs
  • Rinse the mesh face to spot cracks early

Specifications

Brand Method Race Wheels
Part number MRWMR40347046552
Style 403 Mesh
Wheel type UTV
Wheel size 14×7
Backspace 5+2
Bolt pattern 4 on 156
Finish Black (matte)
Beadlock No
Decorative bolts Stainless steel, replaceable
Hub cover Screw-on
Application range 12 inch to 14 inch

Vehicle fitment

It is a universal fit wheel with a 12 inch to 14 inch application range. Match the 14×7 size, 5+2 backspace and 4 on 156 bolt pattern to your UTV before mounting. Confirm fit for your vehicle’s year, model and trim before ordering.

Confirm your vehicle’s year, model and trim before ordering.

What’s included

The decorative bolts and screw-on hub cover are features of the wheel. Check the package contents against your installation before starting.

Not included: tires.

SKU: MRWMR40347046552 Categories: , ,

Questions & Answers

Is the Method 403 Mesh a beadlock wheel?

No. The 403 Mesh is a non-beadlock UTV wheel. Its mesh styling resembles the 406 UTV Beadlock, but the two are different wheels.

What bolt pattern does the 403 Mesh 14x7 use?

It uses a 4 on 156 bolt pattern. The wheel is 14x7 with a 5+2 backspace, and Method lists its part number as MRWMR40347046552.

What size range does the 403 Mesh cover?

Method says applications range from 12 inch to 14 inch, with varying widths and offsets. Confirm the 14x7 size and backspace against your UTV before mounting the wheel.

Can a non-beadlock wheel run at low tire pressure?

Yes, at lower pressures, but the tire bead depends on a good seat and correct pressure. Check the bead after each air-down and reinflate carefully. Stop and inspect if the tire pulls away from the rim or air escapes at the bead.
