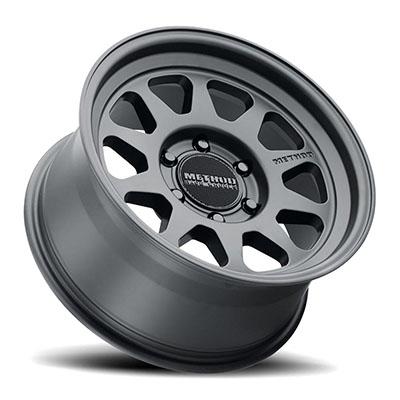

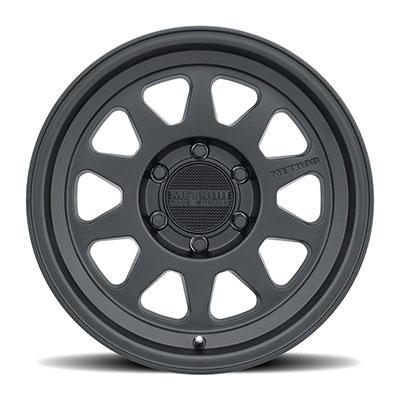

Method Race Wheels MR316, 18x9 with 6 on 135 Bolt Pattern – Matte Black – MR31689016518

Method Race Wheels

$345.00Usually ships within 6 to 7 days
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 19, 2026 3:40 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Method Race Wheels MR316 spoke wheel, 18×9 inches, Matte Black finish
  • Bolt pattern 6 on 135, center bore 87, offset 18, backspacing 5.7
  • Aluminum construction, part number MRWMR31689016518
  • Universal fit, so check clearance before mounting

Description

Overview

The Method Race Wheels MR316 18×9 in Matte Black, part number MRWMR31689016518, is a spoke wheel in aluminum with a 6 on 135 bolt pattern. It is listed with offset 18 and backspacing 5.7.

Method Race Wheels designs its wheels for off-road racing. Each MR316 is developed with finite element analysis and field testing. This 18-inch version has an 87 center bore.

Key features

  • 18-inch diameter and 9-inch width spoke wheel
  • Offset 18 and backspacing 5.7
  • Matte Black finish with aluminum construction
  • 6 on 135 bolt pattern and 87 center bore

Choosing offset and backspacing

Wheel offset sets how far the mounting face sits from the centerline of the wheel. A lower offset pushes the wheel outward, which can change how close the tire comes to the fender, control arms and brake calipers. Backspacing measures from the mounting face to the inner rim edge, so it shows how much room the wheel has behind the face. Both numbers matter together, so compare them as a pair rather than one at a time.

When a wheel is wider than stock, the tire sidewall moves toward suspension parts during turns and at full compression. Off-road tires with taller sidewalls often need more room than street tires of the same size. A test fit with the tire mounted, turned to full lock and cycled through suspension travel shows contact points before any trail use.

  • Measure fender clearance with the tire installed
  • Check brake caliper clearance through the spokes
  • Re-check clearance after any tire size or lift change

Specifications

Brand Method Race Wheels
Part number MRWMR31689016518
Series MR316
Style Spoke
Finish Matte Black
Construction Aluminum
Wheel diameter 18 inches
Wheel width 9 inches
Bolt pattern 6 on 135
Center bore 87
Offset 18
Backspacing 5.7

Vehicle fitment

The wheel is universal fit, so no particular vehicle is tied to it. Offset 18 and backspacing 5.7 change how the wheel sits relative to the hub, so check clearance for your own vehicle before mounting.

It does not confirm fit for any particular vehicle. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because the wheel is 9 inches wide, check tire and fender clearance on a test fit before driving.

What’s included

The wheel is the item described, and no accessories are named.

Not included: Tires, lug nuts and center caps are not included with the wheel.

SKU: MRWMR31689016518 Categories: ,

Questions & Answers

What offset and backspacing does MRWMR31689016518 have?

Offset is 18 and backspacing is 5.7. Compare both with your hub and clearance, because the offset decides how far the wheel sits in the fender.

What size is this 18-inch MR316?

It is 18 inches in diameter and 9 inches wide, with a 6 on 135 bolt pattern and a center bore of 87. The finish is Matte Black.

Does this wheel fit my vehicle?

The wheel is universal fit, so no specific vehicle is tied to it. Confirm the bolt pattern, center bore, offset and backspacing for your vehicle before mounting.

Do I need to recheck clearance after changing tires?

Yes. A different tire width, sidewall height or diameter changes how close the tire sits to the fender and suspension, so recheck clearance with the new tire mounted before driving on it.
