Overview

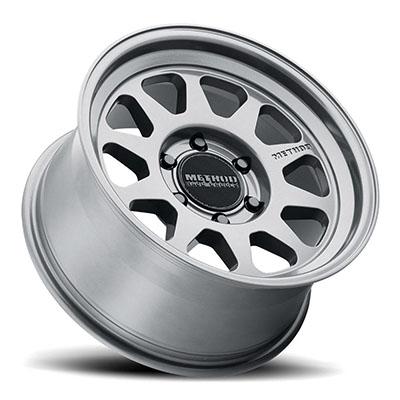

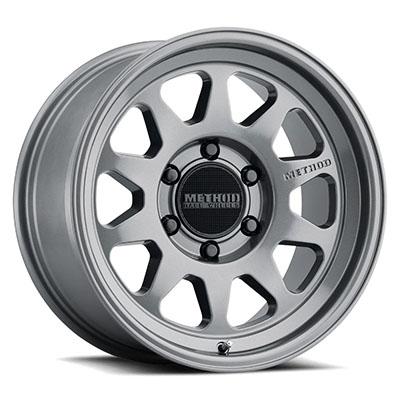

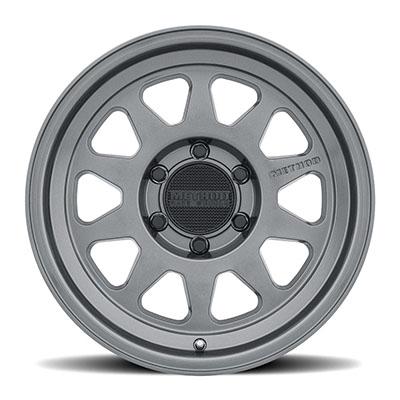

The Method Race Wheels MR316 18×9 in titanium is an aluminum spoke wheel with a 6 on 135 bolt pattern and part number MRWMR31689016818. Its figures include an 18-inch diameter, 9-inch width, 87 center bore, offset 18 and backspacing 5.7.
Method Race Wheels builds its line for off-road racing. Finite element analysis and field testing shaped the MR316 in this size, with the goal of a wheel that is light and strong.
Key features
- Titanium finish on an 18-inch spoke wheel
- 9-inch width with aluminum construction
- 6 on 135 bolt pattern and 87 center bore
- Offset 18 and backspacing 5.7
- Development included Finite Element Analysis and field testing
- MR316 series
Caring for a titanium finish
A titanium finish on an alloy wheel is a coated surface, so it responds to the same gentle care as other custom finishes. Road grime, mud and brake dust collect in spoke recesses and around the lip. Rinse off trail mud soon after a run, then wash with a mild soap and a soft brush. Avoid abrasive pads and strong solvents, which can dull the coating and leave hazy patches over time.
Inspect the wheel at the start of each season. Look at the rim lip, the spoke edges and the bead seat for scrapes, cracks or bent areas. Check lug nut torque after the first few drives on a new wheel and again after any tire service. Any crack, bulge or runout in the rim calls for replacement rather than repair, since a damaged wheel can fail under load.
- Clean mud from the back of the spokes
- Check lug nut torque after the first trail runs
- Inspect bead seats after every tire change
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR31689016818 |
| Series | MR316 |
| Style | Spoke |
| Finish | Titanium |
| Construction | Aluminum |
| Wheel diameter | 18 inches |
| Wheel width | 9 inches |
| Bolt pattern | 6 on 135 |
| Center bore | 87 |
| Offset | 18 |
| Backspacing | 5.7 |
| Fitment | Universal Fit |
Vehicle fitment
No make, model, year or chassis code is named for this 18×9 wheel, and it is labelled universal fit. Compare the offset, backspacing and bolt pattern with your vehicle’s manufacturer specifications before choosing it.
No vehicle is confirmed for this wheel. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the offset of 18 and backspacing of 5.7 against your vehicle’s clearance before mounting the titanium wheel.
What’s included
No accessories come with the wheel.
Not included: Tires are not part of the wheel and must be sourced separately.
