Overview
The Kleinn Train Horns Complete Bolt-On Onboard Air System, part number RZR1000-KIT, is a heavy-duty air system for Polaris RZR 1000 models. It powers a dual air horn and also inflates tires. It fits 2014–2021 RZR XP 1000 and XP 4 1000 models, 2016–2021 RZR S 1000 models and 2019–2020 RZR S4 1000 models.
The kit uses a Model 6350RC waterproof air compressor, a 1-gallon air tank made in USA and a Model 102-1 dual air horn. The compressor and tank handle 37-inch truck tires as well as UTV tires, so the system can also inflate tires at the end of the day.
Key features

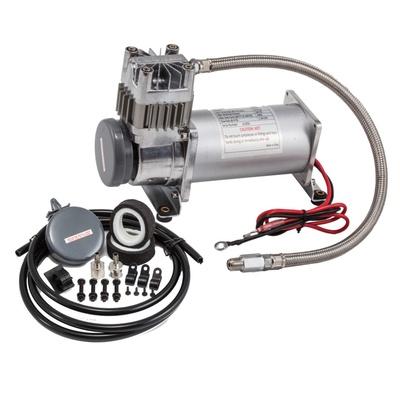

- Waterproof 150 PSI air compressor
- 1-gallon air tank, made in USA

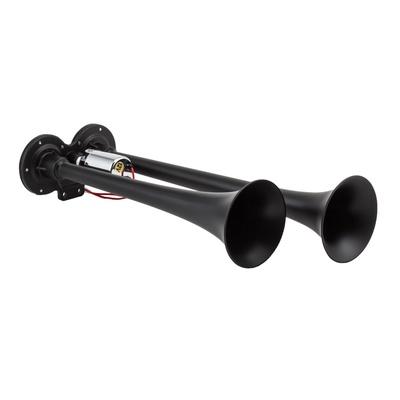

- Dual air horn

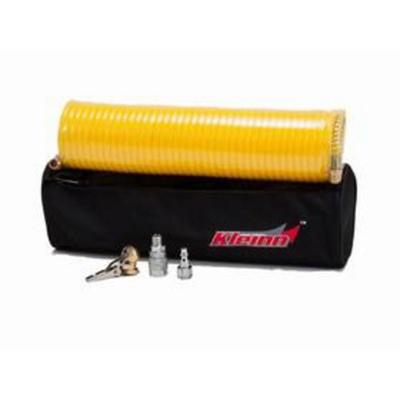

- Quick connect tire inflator with storage bag
- Steel powder coated mounting brackets
Trail and garage use
An onboard air system is useful when a tire goes low far from a shop. A compressor and tank let you refill tires after a trail day, and a dual air horn gives a louder signal on the trail than a stock horn. Because the compressor draws power from the vehicle, it is worth checking that the wiring route and fuse suit the installation plan before you start, and that the compressor has room to breathe where it is mounted.
Running an air compressor regularly puts heat and moisture into the tank, so drain the tank after use and keep the inflator hose and storage bag clean and dry. Check the mounting brackets and hose connections after the first few trail runs, since vibration loosens fittings on any UTV, and dust or mud left on the compressor can shorten its service life.
- Check hose fittings for leaks after rough trails
- Drain moisture from the tank periodically
- Keep the inflator hose out of mud and dust
- Re-check bracket bolts after the first runs
Specifications
| Brand | Kleinn Train Horns |
|---|---|
| Part number | RZR1000-KIT |
| Compressor | Model 6350RC, waterproof, 150 PSI |
| Air tank | 1 gallon, made in USA |
| Air horn | Model 102-1, dual |
| Tire inflator | Quick connect, with storage bag |
| Brackets | Steel, powder coated |
| Largest tire described | 37-inch truck tires |
Vehicle fitment
It fits 2014–2021 RZR XP 1000 and XP 4 1000 models, 2016–2021 RZR S 1000 models, and 2019–2020 RZR S4 1000 models.
The list does not cover RZR models from 2022 on, or RZR 1000 models outside those years. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The kit is 100% bolt-on and installs with common hand tools. It needs no drilling, cutting or welding, and it includes everything needed for installation.
What’s included
The Model 6350RC waterproof compressor, 1-gallon air tank, Model 102-1 dual air horn, steel powder coated brackets, quick connect tire inflator with storage bag, and everything needed for installation.
