Overview

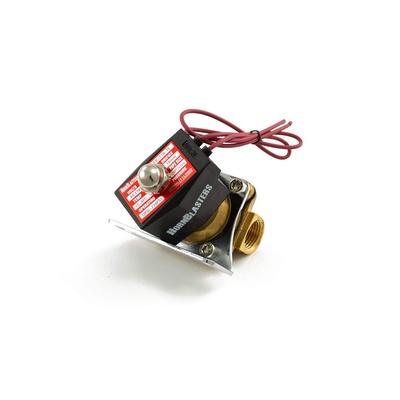

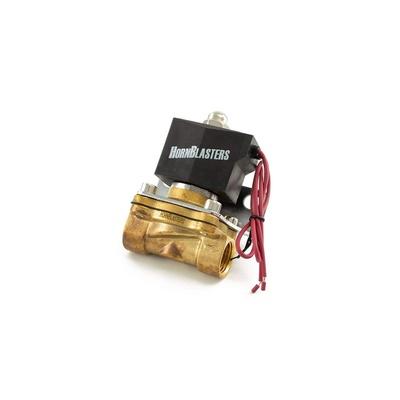

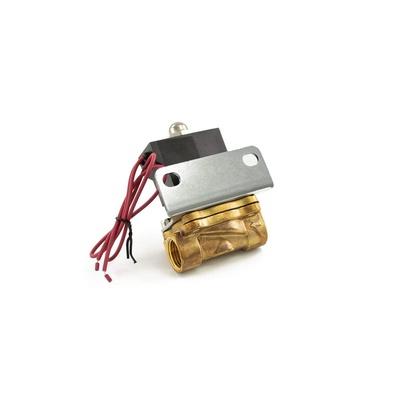

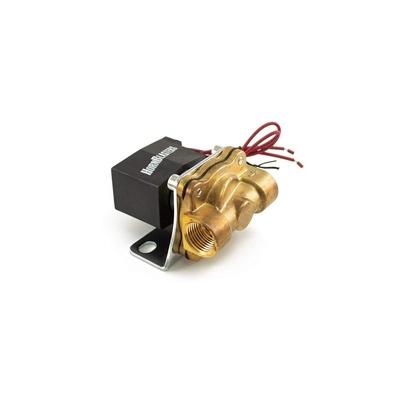

The HornBlasters Brass 1/2 inch 110 Volt Electric Air Valve, part number H/BVA-8H-110, is a solenoid valve for train horns and other pneumatic accessories. It is a high-flow electric valve with a 16mm orifice for more air volume to horns.
The valve is forged from solid brass with all-metal components and is wired to a 110 volt electrical system. It is a universal fit across horn air systems.
Key features
- Solid brass, forged construction with all-metal components
- 16mm orifice for high flow
- 1/2 inch size
- 110 volt electric valve
- Suitable for train horns and other pneumatic accessories, per HornBlasters
Wiring and air supply basics
A 110 volt solenoid valve is a switch for air, so the electrical side and the air side both need attention. The coil must receive the correct voltage, and the wiring should use connections rated for the load. Loose terminals can overheat and fail at the coil, while a clogged inlet can keep the valve from opening fully even when it is energized.
On the air side, use a clean, dry supply and keep debris out of the inlet. Moisture is the most common reason brass valves stop sealing. Keep pipe thread sealant out of the valve body. When a valve is replaced, check that the new one matches the flow direction marked on the body and that all fittings are tight before testing.
- Confirm coil voltage before wiring
- Use a moisture trap upstream
- Keep thread sealant out of the body
- Test the valve after installation
Specifications
| Brand | HornBlasters |
|---|---|
| Part number | H/BVA-8H-110 |
| Material | Solid brass, forged |
| Orifice | 16mm |
| Size | 1/2 inch |
| Voltage | 110 volt |
| Fitting type | Electric valve |
| Fitment | Universal |
Vehicle fitment
It is a component valve rather than a vehicle-specific part, so check your air system’s connections and valve size before installing.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Wire this 110 volt valve only to a 110 volt electrical system. HornBlasters warns that wiring it to any other system will cause serious damage and void the warranty.
What’s included
One brass 1/2 inch 110 volt electric air valve.
Not included: train horns and the air supply are needed separately.
