Overview

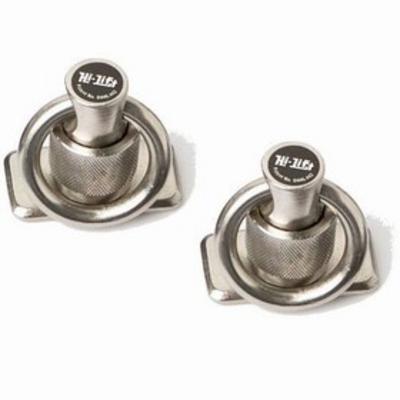

The Hi-Lift Jack Stainless Steel Sliding Tie-Points, model SS-2 and part number H/LSS-2, are tie-down points from the Slide-N-Lock Tie-Down System. They are used to anchor a payload at whatever position it needs.
Pulling the spring-loaded locking pin frees the tie point so it slides to the locating hole you need. Self-locating holes sit every 5 inches, so the anchor moves in small steps.
The system is designed to secure heavy loads. Installation uses pre-drilled holes and 1/4 inch diameter bolts.
Key features
- Stainless steel construction
- Spring-loaded locking pin for repositioning the tie point
- Self-locating holes every 5 inches
- Rated by the manufacturer for extremely heavy loads
- Installs with 1/4 inch bolts in pre-drilled holes
Choosing a mounting surface
A sliding tie point is only as strong as the surface it bolts to, so the mounting area matters as much as the hardware. Look for a solid floor or a reinforced panel that is free of rust and rot. Backing plates spread the load across a wider area, which helps when the tie points carry heavy cargo or are pulled hard during a sudden stop.
Stainless steel resists corrosion well, but it can still corrode where it touches dissimilar metals, so use bolts and washers that match the hardware and keep a barrier between metals where possible. After the first trips, check that the bolts are still tight and that the locking pin seats fully in its hole. Re-check any tie point that feels loose before loading it again.
- Inspect the mounting surface for rust or cracks
- Use backing plates on thin panels
- Re-check bolt tightness after the first trips
Specifications
| Brand | Hi-Lift Jack |
|---|---|
| Part number | H/LSS-2 |
| Model | SS-2 |
| Product type | Sliding tie down point |
| System | Slide-N-Lock Tie-Down System |
| Material | Stainless steel |
| Hole spacing | Self-locating holes every 5 inches |
| Mounting bolts | 1/4 inch diameter, spread approximately every 10 inches in pre-drilled holes |
| Length | N/A |
Vehicle fitment
This is a mounting hardware item, not a vehicle-specific part, and no vehicle is named. Confirm your mounting area suits the pre-drilled bolt pattern before using the tie-down points.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Slide-N-Lock installs in minutes using 1/4 inch diameter bolts spread approximately every 10 inches in pre-drilled holes. Confirm the mounting surface is solid and the holes match that pattern before loading anything heavy.
What’s included
Confirm fit for your vehicle’s year, model and trim before ordering.
