Overview
The Hi-Lift Jack SWR22S is a 22 inch Slide-n-Lock tie down system for securing payloads on a vehicle. Its sliding tie down points lock into self-locating holes, so each anchor point can be moved to where a strap or cable is needed. It is universal fit and is not tied to a specific year, make or model.
Slide-n-Lock suits any type of payload. Pull the spring-loaded locking pin, slide the tie point along the rail and release the pin into the next hole to set the position.
Key features
- Self-locating holes placed every 5 inches along the rail
- Spring-loaded locking pins hold each tie point in place
- Two anodized aluminum rails with stainless steel locking pins
- Predrilled mounting holes and mounting hardware for installation
- Available in 22 inch and 7 inch lengths, Black and Silver finishes
Mounting and positioning

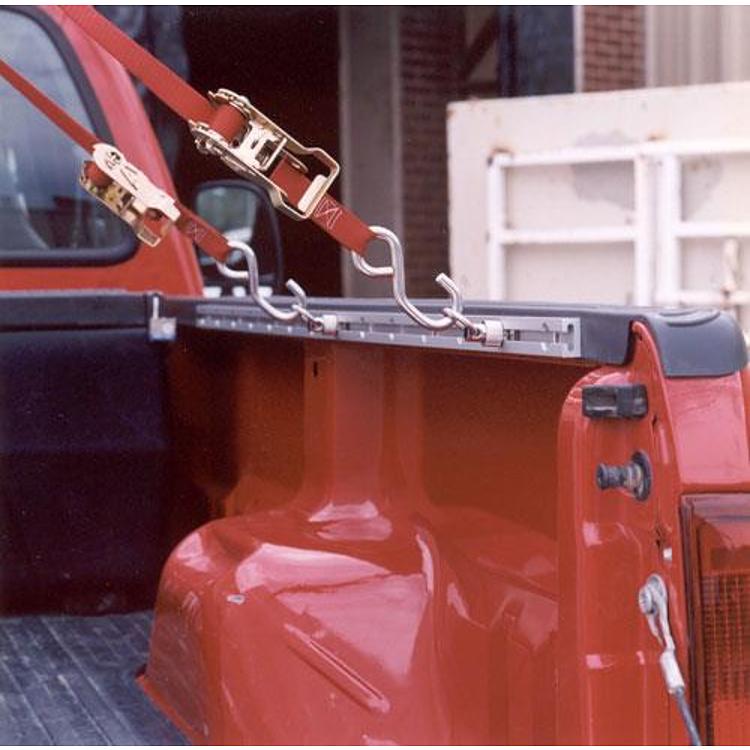

A sliding tie down system gives you a tie point you can move without re-drilling, which is useful when cargo changes shape or size from trip to trip. Plan the position of each tie point before you tighten the fasteners, so straps can run straight from the cargo to the anchor. Spring-loaded pins should be fully seated in a hole before you load the rail, since a partly seated pin can let a point shift under vibration.
Over time, inspect the rail for loose mounting hardware, bent pins or dirt packed into the holes. Clean the rail with mild soap and water and dry it before storing it, which helps keep the anodized finish in good condition. If a locking pin does not seat cleanly, do not use the system to hold a load until the pin and hole are checked.
- Confirm each pin is fully seated
- Tighten mounting hardware after the first trips
- Keep holes clear of mud and grit
Specifications
| Brand | Hi-Lift Jack |
|---|---|
| Part number | SWR22S |
| UPC | 52767227909 |
| Type | Sliding tie down point |
| Length | 22 inches |
| Rail material | Anodized aluminum |
| Locking pins | Stainless steel, spring-loaded |
| Hole spacing | Every 5 inches |
| Finishes offered | Black and Silver |
Vehicle fitment
It is universal fit and not vehicle-specific. Confirm that the 22 inch length suits your mounting area before installing.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The rails use predrilled mounting holes and the included mounting hardware. Test-fit the rails against your mounting surface before fastening them.

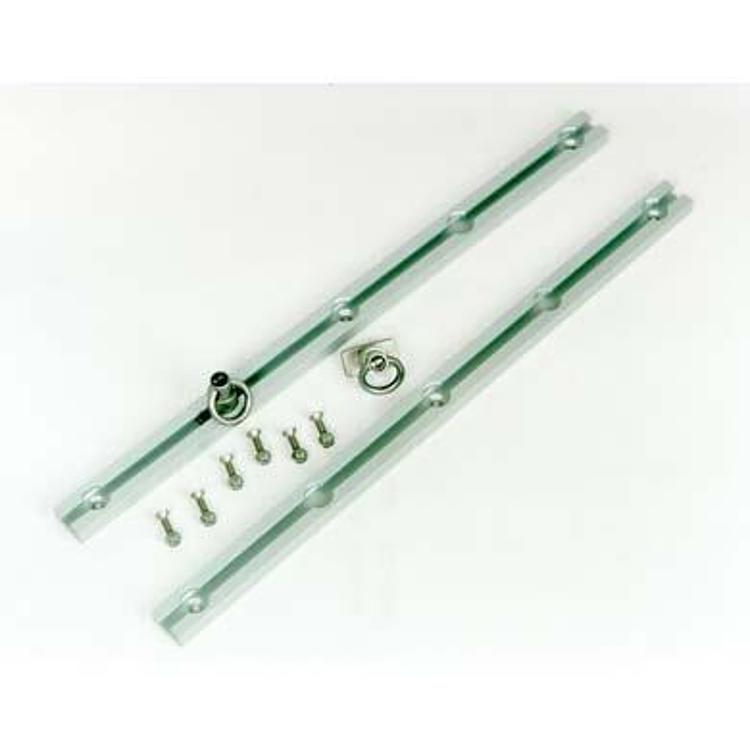

What’s included
Two anodized aluminum rails, stainless steel locking pins and mounting hardware.
