Overview

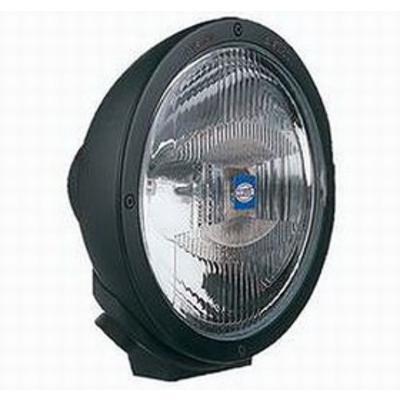

The Hella Rallye 4000 Black Fog Lamp (part H12560001) is a single round halogen lamp in matte black. It is designed for off-road use and has a clear structured glass lens and a durable metal housing. Hella also offers the Rallye 4000 in chrome, while this part is the matte black version.
The heavy duty mounting base has knurled knobs for fast adjustment. Each lamp includes an H1 55W bulb, a protective stone shield and mounting hardware. Hella also offers the 4000 in chrome, and this part is the matte black version.
Key features
- Fog lamp in matte black
- Durable metal housing
- Structured glass lens
- Heavy duty mounting base with knurled knobs
- Round lamp shape
- Protective stone shield included
Mounting and aiming a fog lamp
A fog lamp works best when it is aimed low and level, so the beam lights the road surface just ahead of the vehicle rather than the air above it. Mount the lamp where it is protected from direct stone strikes, and leave room for the knurled knobs to turn freely. Round halogen lamps run hot, so keep the bulb area clear of mud and debris that could trap heat against the housing.
Before installation, decide where the feed will be fused and how the wire will be routed away from moving suspension parts and heat sources. Halogen bulbs are sensitive to oil from bare fingers, so handle them by the base. Recheck the aim and the mounting knobs after the first few drives, since rough roads can loosen adjustments that were set on a flat surface.
- Aim low and level for road lighting
- Keep bulb area clear of mud and debris
- Recheck knobs after the first drives
Specifications
| Brand | Hella |
|---|---|
| Part number | H12560001 |
| Light type | Halogen, round |
| Bulb | H1 55W |
| Lens | Clear, structured glass |
| Mounting | Bracket |
| Finish | Matte black |
| Sold as | Single lamp |
Vehicle fitment
The Rallye 4000 fog lamp is a universal lamp, not built for one vehicle. Check the mounting location and clearance on your vehicle before drilling.
Installation notes
The lamp adjusts with the knurled knobs on its mounting base. Fuse the feed for the H1 55W bulb, and check local rules before using fog lamps on public roads.
What’s included
One lamp with an H1 55W bulb, a protective stone shield and mounting hardware.
