Overview
The G2 Axle and Gear 4-XJ2-488 is a front and rear ring and pinion kit with 4.88 gears for the 1984 to 2001 Jeep Cherokee XJ. It uses a Dana 30 reverse front and a Dana 35 rear axle, and its specifications match the 4-XJ-488 under a different part number.
Matched master installation kits for both axles are included, and the set covers what is needed for a gear swap. It carries a limited lifetime warranty.
Key features
- 4.88 gear sets for both axles
- Dana 30 reverse front, Dana 35 rear
- Front and rear master installation kits
- Fits 1984 to 2001 XJ Cherokee
- Double lapped and double shot peened
Matching the set to your build
A gear set is the core of the swap, but the surrounding parts decide how well it runs. Bearings, pinion seals, axle seals and the carrier shims are all touched during a rebuild. Choose a set that matches the axle layout, and confirm that the carriers are the right size for the gears before buying tools or starting work. Paying attention to these details early avoids repeat work.
How the Cherokee is used changes what matters. A vehicle driven mostly on pavement can run a different setup than one that carries heavy loads or spends time on trails. Think about how the vehicle will be driven before settling on the final setup, and plan for periodic inspection of the gear mesh, backlash and fluid as the miles add up.
- Replace worn bearings during the rebuild
- Verify carrier size before starting
- Consider how the vehicle will be used
- Inspect gear mesh after the first trips
Specifications
| Brand | G2 Axle and Gear |
|---|---|
| Part number | 4-XJ2-488 |
| UPC | 700007521761 |
| Product type | Front and rear ring and pinion sets with master installation kits |
| Gear ratio | 4.88 |
| Front axle gears | Dana 30 Reverse 4.88 |
| Front carrier | 3.73 and up |
| Rear axle gears | Dana 35 4.88 |
| Rear carrier | 3.54 and up |
| Installation kits | Front and rear matched master installation kits |
| Material | Computer heat treated 8620 steel |
| Manufacturing | Manufactured to O.E. specs, double shot peened, double lapped |
| Warranty | Limited lifetime warranty |
Vehicle fitment
It fits the 1984 to 2001 Jeep Cherokee XJ with a Dana 30 reverse front and Dana 35 rear axle combination.
The 4-XJ2-488 does not cover other Jeeps or an XJ with different axles. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
When installing the 4-XJ2-488, set pinion depth, preload and backlash on both axles with the master installation kits and verify the 3.73 and up front and 3.54 and up rear carriers. A trained installer is the usual choice.

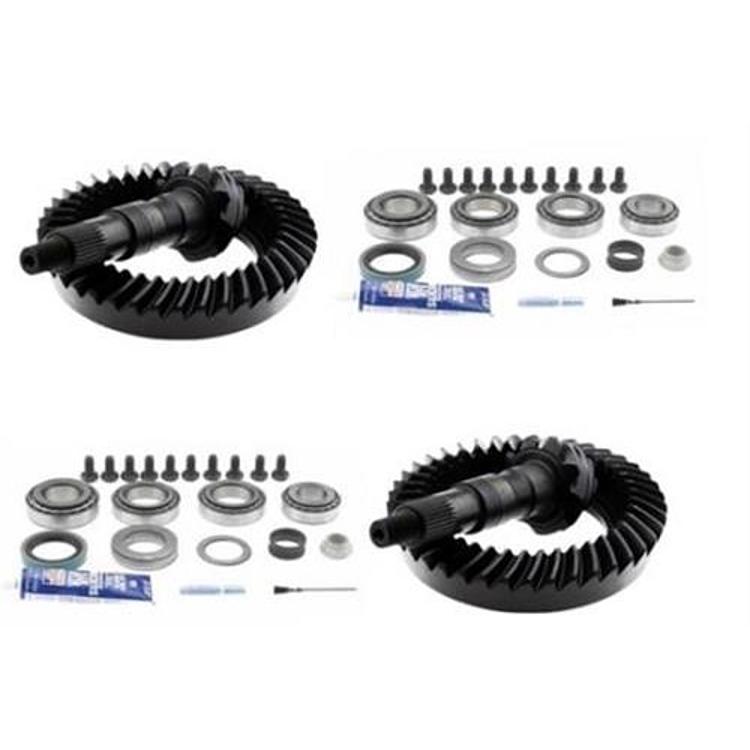

What’s included
- Front ring and pinion gear set
- Rear ring and pinion gear set
- Front matched master installation kit
- Rear matched master installation kit
Not included: carriers and parts beyond the two master installation kits.
