G2 Toyota Birfield CV Style Big Spline Chromoly Inner Axle Shaft – 97-2044-005

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Big Spline passenger-side long inner axle shaft, 30 splines
  • Chromoly shaft for the Toyota 9.5 inch front axle
  • Requires an aftermarket CV joint
  • Fits the 1975–1990 Toyota Land Cruiser (FJ40 and FJ60)

Description

Overview

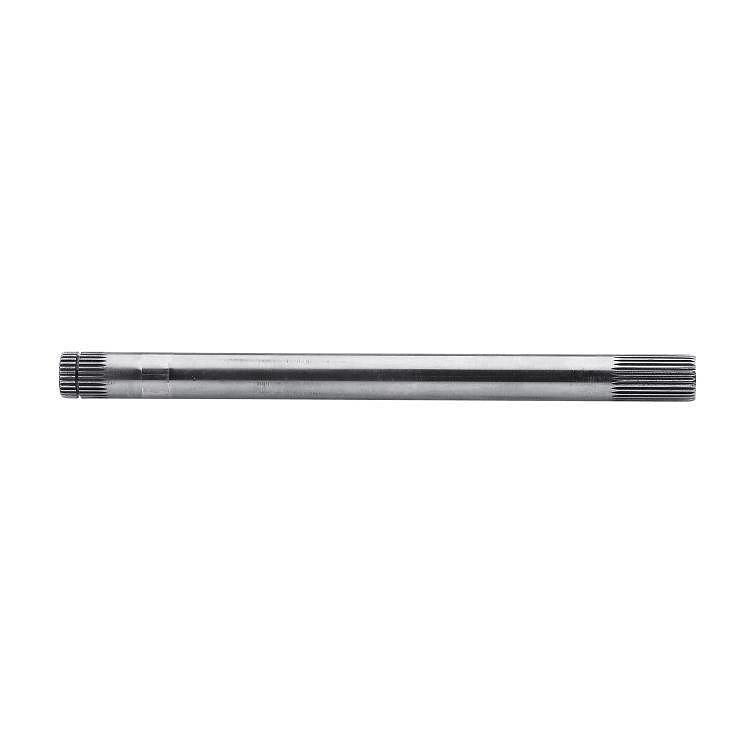

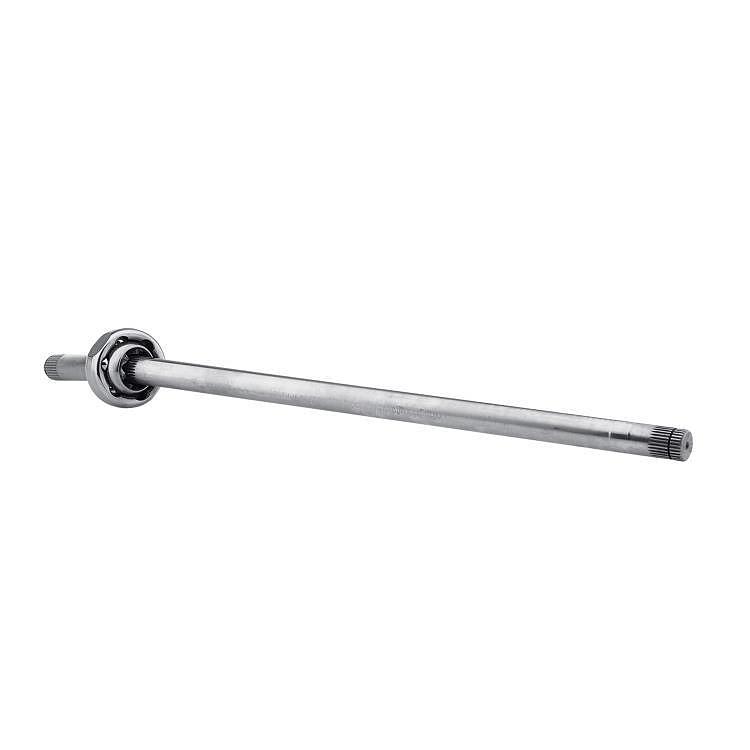

The G2 Axle and Gear 97-2044-005 is a Big Spline chromoly Birfield CV style inner axle shaft with 30 splines for the passenger side of the front axle on 1975–1990 Toyota Land Cruiser models, including the FJ40 and FJ60.

This long passenger-side shaft is the 30 spline partner for FJ40 and FJ60 Land Cruiser owners who are upgrading the front driveline. It fits the Toyota 9.5 inch axle and needs an aftermarket CV joint. It is chromoly and built for owners who run larger tires.

On an FJ40 or FJ60 front axle, the passenger side is where the second long shaft goes. Anyone upgrading to Big Spline shafts normally does both sides at the same time so the joints and shafts stay matched. The driver-side Big Spline shaft in this family is a different part number, so a full pair means two separate purchases.

Key features

  • Big Spline chromoly inner shaft, 30 splines
  • Passenger-side long shaft, front right inner position
  • Made for the Toyota 9.5 inch front axle
  • Needs an aftermarket CV joint
  • Covers FJ40 and FJ60 Land Cruisers
  • Shaft only

Matching both driveline sides

A passenger-side shaft works best as part of a matched pair. The stock joints, the Big Spline shaft on the other side and the axle housings all share the load, so mixing a 30 spline shaft with a stock joint can leave one side weaker than the other. Confirming the joint count before buying saves a return trip.

Larger tires place extra torque on the shafts, and the spline area is where a shaft is most likely to twist or break under heavy loads. Check the splines and the boot each time the front end is opened, and look for play at the wheel when the vehicle is lifted. Keeping the hubs and bearings in good order helps the new shaft last.

  • Verify both sides use matched spline counts
  • Check joint boots for splits before assembly
  • Torque fasteners to the vehicle’s service specification

Specifications

Brand G2 Axle and Gear
Part number 97-2044-005
UPC 631410107586
Part type Big Spline inner axle shaft, Birfield CV style
Material Chromoly
Axle location Front
Shaft position Passenger side, front right inner
Axle type Toyota 9.5 inches
Spline count 30 splines
Shaft length Long axle
Requirement Aftermarket CV joint

Vehicle fitment

It fits the 1975–1990 Toyota Land Cruiser, covering the FJ40 and the FJ60.

Land Cruisers outside 1975–1990 and all Toyota Pickups are not covered. A driver-side Big Spline shaft is a different part number. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Pair the shaft with a 30 spline aftermarket CV joint, since the joint is required. Have a professional shop confirm the driveline stack before assembly.

What’s included

Not included: The aftermarket CV joint this shaft requires.

SKU: G/297-2044-005 Category:

Specification

Shipping weight 6.00 lbs
Package dimensions 37.00 × 7.50 × 7.30 in
brands

Fitment

VehicleYearsTrims
Toyota Land Cruiser1975–1990Base

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What vehicles does the G2 97-2044-005 fit?

It fits the 1975–1990 Toyota Land Cruiser, with the 75-84 FJ40 and the 8/80-1/90 FJ60 both covered. Its application covers both generations, so the shaft works on either model within those years. Confirm your vehicle's year, model and trim before ordering.

Can the 97-2044-005 use the stock CV joint?

No. The shaft needs an aftermarket CV joint, so the factory joint does not match it. With 30 splines, the joint has to be made for a 30 spline count.

Is the 97-2044-005 the passenger side shaft?

Yes. It is the long passenger-side axle in the front right inner position, made for the Toyota 9.5 inch axle and with 30 splines.

Is the 97-2044-005 stronger than a 27 spline shaft?

G2 says Big Spline and better materials help owners run larger tires with less risk of failure, but it gives no test numbers or rating for this part.

What should be checked after the first trail runs?

Check the axle fasteners, joint boots and the feel of the front driveline after the first few trail runs. Look for loose bolts, grease leaks and new vibration. Retightening and inspecting early catches problems before they grow into a broken shaft.
