G2 GM 8.5 Inch 10 Bolt Replacement Axle Shaft – 95-2021-003

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 1988–1991 Chevrolet Blazer (K10 4WD non-IFS)
  • GM 10 bolt 8.5 inch axle, 30 splines
  • 31.31 inch overall length; studs not included

Description

Overview

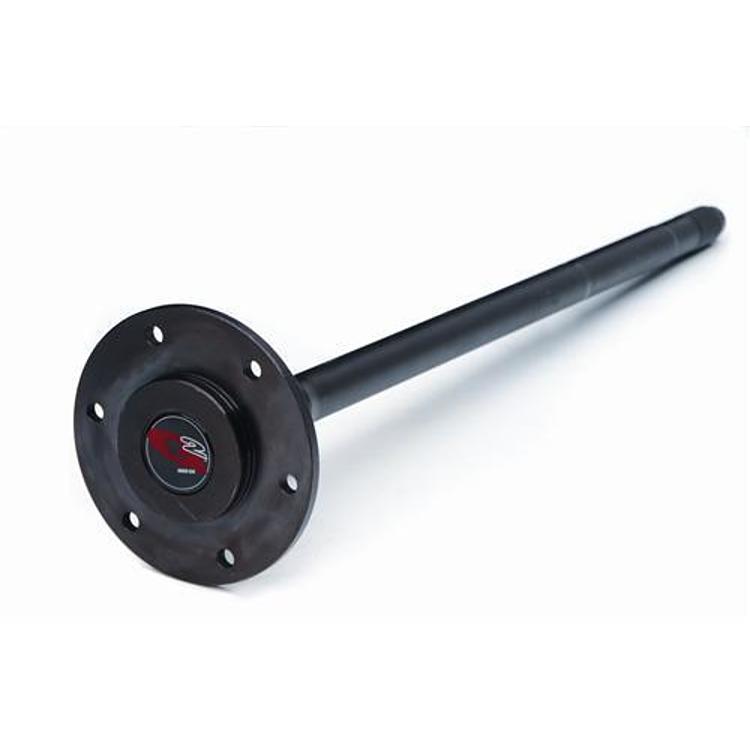

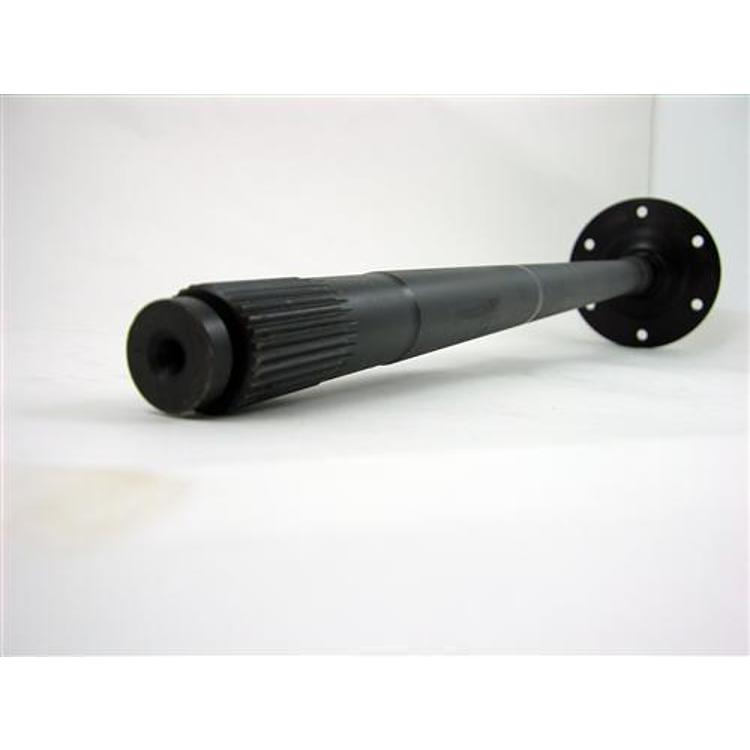

The G2 Axle and Gear 95-2021-003 is a rear replacement axle shaft for the GM 10 bolt 8.5 inch axle, made for the 1988–1991 GM K10 four-wheel-drive truck without independent front suspension. It has 30 splines and a 31.31 inch overall length.

Forged from high grade alloy steel and heat treated beyond OEM specifications, the shaft fits either the driver or passenger side of the rear axle.

This is a non-IFS shaft, built for four-wheel-drive trucks with a solid front axle rather than independent front suspension. Its 30 splines and 31.31 inch overall length make it straightforward to compare against the old shaft during removal. The steel is heat treated for longer service life under load.

Key features

  • 30 splines
  • 31.31 inch overall length
  • Either driver or passenger side
  • Non-IFS 4WD application
  • GM 10 bolt 8.5 inch rear axle
  • Wheel studs not included

Checking the old axle shaft

Before removing the original shaft, look at the axle housing and the seal behind the flange. Oil on the inside of the wheel usually points to a leaking seal, and a leaking seal can contaminate the bearing on a new shaft if it is not addressed during the job. Note whether the old shaft is bent or shows cracked or rounded splines, since that wear often shows up in the drivetrain before it is visible from underneath.

Wheel studs are not supplied, so have them on hand before the job starts. Many people replace the wheel bearing and seal together when the axle is already open, because the labor overlaps and a fresh seal protects the new shaft from dirt and moisture.

  • Clean the flange and check it for damage before fitting
  • Look for grease or oil leaks at the housing

Specifications

Brand G2 Axle and Gear
Part number 95-2021-003
UPC 631410106039
Product type Replacement axle shaft
Axle type GM 10 Bolt 8.5 inch
Axle location Rear
Shaft position Driver Or Passenger
Spline count 30
Overall length 31.31 inches
Wheel studs Not included
Stated application 1988-1991 GM K10 4 WD Non IFS

Vehicle fitment

It fits the 1988–1991 Chevrolet Blazer.

G2’s description specifies non-IFS trucks, meaning those without independent front suspension, and the list names the Blazer only. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

  • Confirm the truck has a solid front axle before fitting this non-IFS shaft.
  • Wheel studs have to be supplied.

What’s included

One rear axle shaft that fits either side (95-2021-003).

Not included: wheel studs for the 95-2021-003.

SKU: G/295-2021-003 Category:

Specification

Shipping weight 22.00 lbs
Package dimensions 37.00 × 7.50 × 7.30 in
brands

Fitment

VehicleYearsTrims
Chevrolet Blazer1988–1991Scottsdale, Silverado

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the G2 95-2021-003 fit a 1990 Chevrolet Blazer?

It fits the 1988–1991 Chevrolet Blazer, including 1990. The 95-2021-003 has 30 splines and a 31.31 inch overall length and fits either side.

What does non-IFS mean for the 95-2021-003?

It is for trucks without independent front suspension, meaning four-wheel-drive models with a solid front axle. Confirm your suspension setup before use. The 95-2021-003 has 30 splines and a 31.31 inch overall length and fits either side.

How long is the 95-2021-003 axle shaft?

It has an overall length of 31.31 inches and 30 splines. The 95-2021-003 has 30 splines and a 31.31 inch overall length and fits either side.

Are studs included with the 95-2021-003?

No. G2 says wheel studs are not included. The 95-2021-003 has 30 splines and a 31.31 inch overall length and fits either side.

How do I tell if an axle shaft is worn?

Common signs include a clicking or popping noise when turning, vibration that changes with speed, and visible grease on the inside of the wheel. Check the splines and the hub end for cracks or rounding before deciding whether the shaft needs replacing.
