G2 Toyota Birfield CV Style Chromoly Outer Axle Shaft – 97-2041-001

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 1979–1985 Toyota Pickup and Land Cruiser, front outer
  • Chromoly birfield CV joint, 27 splines
  • Driver or passenger side

Description

Overview

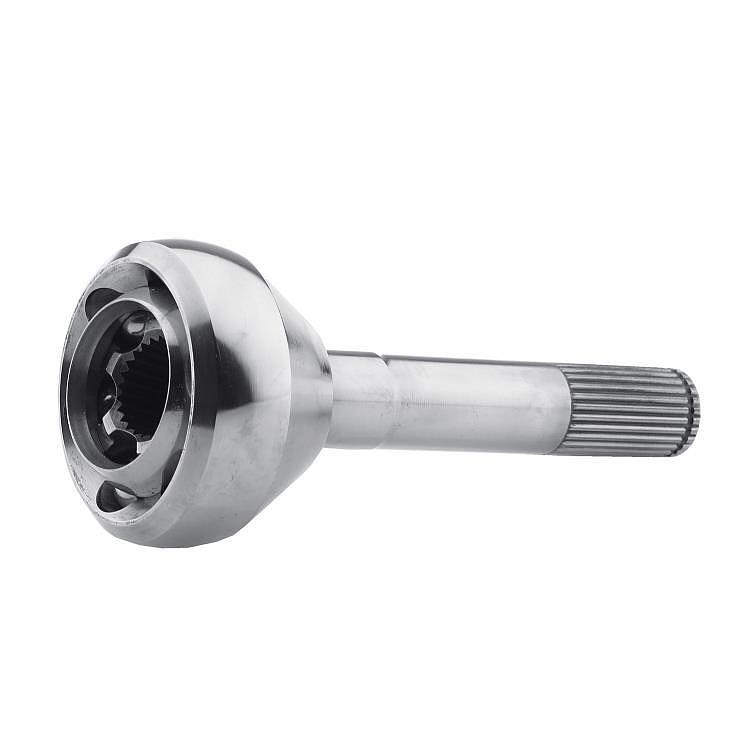

The G2 Axle and Gear 97-2041-001 is a chromoly birfield CV-style outer axle shaft for the front axle of the 1979–1985 Toyota Pickup and Land Cruiser. It has 27 splines and fits the driver or passenger side.

The 97-2041-001 applies to the 79-85 Toyota P/U, the 75-84 FJ40 Land Cruiser and the 8/80-1/90 FJ60 Land Cruiser. It is heat treated to exceed OEM specifications.

The 97-2041-001 is a birfield CV-style outer shaft in chromoly with 27 splines, made for the outer stub of the Toyota 8 inch front axle. It fits either the driver or passenger side. Its forged construction is heat treated beyond OEM specifications.

Key features

  • Chromoly CV (birfield) joint
  • 27 splines
  • Either driver or passenger side
  • Outer stub, front axle
  • Toyota 8 inch axle
  • Heat treated beyond OEM specifications.

Signs the outer shaft is worn

An outer axle shaft connects the CV joint at the wheel end to the hub, so wear usually shows up as clicking on tight turns, vibration, or a boot that has torn and leaked grease. Check the CV boot and joint for play before pulling the shaft, because dirt entering through a torn boot wears the joint quickly. On a Toyota 8 inch front axle, the outer stub and hub bearing are often inspected at the same time.

When choosing an outer shaft, the spline count and joint style must match the hub and inner shaft on your truck. Replacing the outer shaft is also a good time to inspect the hub seal and wheel bearings. Using a fresh snap ring and clean grease keeps the joint running smoothly.

  • Clicking on sharp turns
  • Torn CV boot with grease loss
  • Play at the wheel end
  • Inner shaft must match the spline count

Specifications

Brand G2 Axle and Gear
Part number 97-2041-001
UPC 631410107494
Product type Replacement axle shaft
Axle type Toyota 8 Inch
Axle location Front
Shaft position Outer Stub
Spline count 27
Material Chromoly
Stated application 79-85 Toyota P/U, 75-84 FJ40 Land Cruiser and 8/80-1/90 FJ60 Land Cruiser

Vehicle fitment

It fits the 1979–1985 Toyota Land Cruiser and the 1979–1985 Toyota Pickup. Confirm fit for your vehicle’s year, model and trim before ordering.

G2’s text extends the FJ40 back to 1975 and the FJ60 from August 1980 to January 1990, which is wider than the list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

  • This is an outer shaft, so confirm the inner shaft has matching 27 splines.

What’s included

One outer axle shaft (97-2041-001).

Not included: the inner shaft and wheel studs for the 97-2041-001.

SKU: G/297-2041-001 Category:

Specification

Shipping weight 6.50 lbs
Package dimensions 37.00 × 7.50 × 7.30 in
brands

Fitment

VehicleYearsTrims
Toyota Land Cruiser1979–1985Base
Toyota Pickup1979–1985Base, DLX, DLX Turbo, SR5, SR5 Turbo

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Which vehicles does the G2 97-2041-001 fit?

It fits the 1979–1985 Toyota Pickup and Land Cruiser, and the application also covers the FJ40 and FJ60. The shaft is a chromoly outer with 27 splines for the Toyota 8 inch front axle.

Is the 97-2041-001 an inner or outer shaft?

It is an outer shaft with a chromoly CV joint, on the front axle. The 97-2041-001 is a chromoly outer shaft with 27 splines for the Toyota 8 inch front axle.

How many splines does the 97-2041-001 have?

It has 27 splines. The 97-2041-001 is a chromoly outer shaft for the Toyota 8 inch front axle and must match the inner shaft's spline count.

Which side does the 97-2041-001 fit?

It fits either the driver or passenger side of the front axle. The 97-2041-001 is a chromoly outer shaft with 27 splines for the Toyota 8 inch front axle.

Can I replace only the outer shaft and keep the inner?

Yes, provided the inner shaft is in good condition and has the same 27 spline count. Inspect the inner joint for play and boot damage first. A worn inner joint can make a new outer shaft feel rough.
