G2 GM 14 Bolt 10.5 Inch Open Differential Carrier – 65-2023H

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • G2 Axle and Gear 65-2023H open differential carrier for GM 14 Bolt 10.5 Inch rear axles
  • Direct replacement of the factory differential, per the brand
  • Open differential case only, empty spline
  • UPC 631410096408

Description

Overview

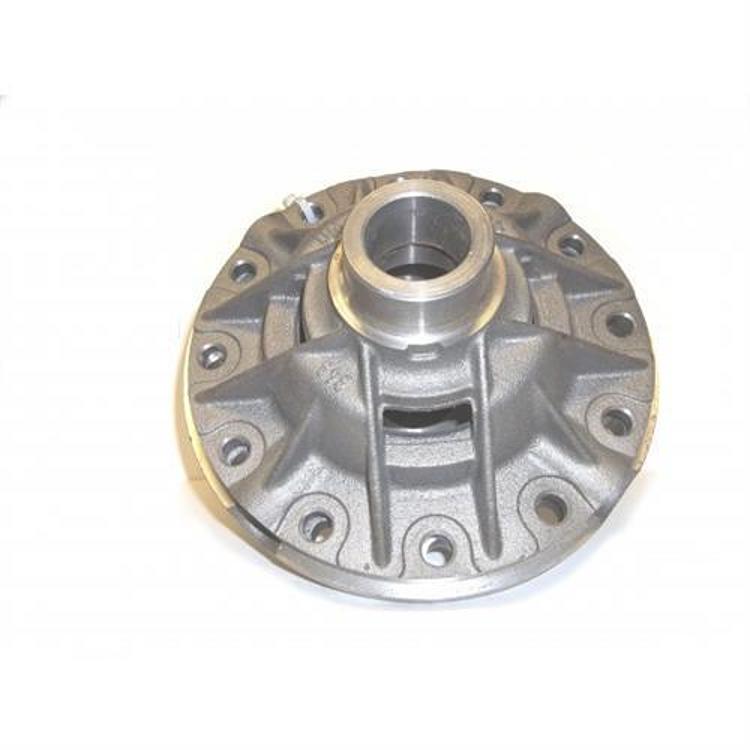

The G2 Axle and Gear 65-2023H is an open differential carrier for GM 14 Bolt 10.5 Inch rear axles. It is a direct replacement for the factory differential, and it suits a case that matches your gear ratio.

G2 Axle and Gear gives the axle location as rear, the axle type as GM 14 Bolt 10.5 Inches, and the differential type as open differential case only with an empty spline.

Key features

  • Direct replacement for the factory differential, per the brand
  • Open differential case only
  • GM 14 Bolt 10.5 Inch rear axle type
  • Empty spline case
  • Suited to repairs

Matching a GM 14 Bolt carrier

The GM 14 Bolt axle has a carrier that bolts into the axle housing, and the ring gear, pinion and bearing setup determine how smooth and quiet it runs. When replacing the case, check the bearing bores, the bolt holes and the pinion location against the housing you already have. A ring gear that fits the new landing and correctly set backlash are both needed before the axle is used.

Gear ratio matters as much as fit. Changing ratio alters how the vehicle accelerates and how the engine turns at speed, so keep the ratio consistent unless the change is intended. Parts often replaced in the same job include the carrier bearings, pinion seal and axle bearings. Work with a professional for gear mesh and preload, and fill with the correct lubricant afterward.

Specifications

Brand G2 Axle and Gear
Part number 65-2023H
UPC 631410096408
Axle type GM 14 Bolt 10.5 Inches
Axle location Rear
Axle spline Empty case
Differential type Open differential case only

Vehicle fitment

This is an axle carrier for the GM 14 Bolt 10.5 Inch axle type and is universal fit. Check your axle type and ring gear landing before fitting.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The open case is empty, so ring gear, pinion and bearing setup is needed, and professional gear set-up is recommended.

What’s included

The open differential carrier case only.

Not included: Ring gear, pinion and bearings are not included.

SKU: G/265-2023H Category:

Specification

Shipping weight 25.00 lbs
Package dimensions 10.00 × 10.00 × 10.00 in
brands

Questions & Answers

Is G2 65-2023H a direct replacement for a factory differential?

It is a direct replacement for the factory differential and works well for repairs. Confirm the axle type and spline count against your vehicle before fitting.

Does it fit a GM 14 Bolt axle?

It is an open differential for GM 14 Bolt 10.5 Inch axle types in the rear location. No vehicle years or models apply, so check your axle type before fitting.

Does this carrier include a ring gear?

No. It is an open differential case only with an empty spline. Ring gear, pinion and bearings are not included with it, so plan to source them before fitting.

How do I know if a GM 14 Bolt carrier needs replacing?

Look for cracks in the case, metal debris in the fluid, whining or clunking under load, or fluid leaking at the carrier. These signs suggest the carrier, gears or bearings need inspection before further driving.

Should the axle bearings be replaced when the carrier is swapped?

Often, yes, especially if they show wear, play or noise. Inspecting them during the swap helps avoid early failure of the new carrier and keeps the gear setup stable.
