Overview
The G2 Axle and Gear Ford 9-inch master installation kit, part G/235-2011D, is built for a 2.96-inch bore Ford 9-inch axle that uses a Daytona pinion.
Use this kit when the new gears call for a Daytona pinion setup. It is an install kit, so the ring and pinion gears are sold separately.
Key features

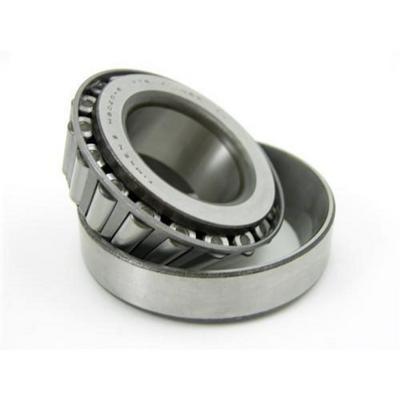

- Master kit with bearings
- Shim kit for setting pinion depth

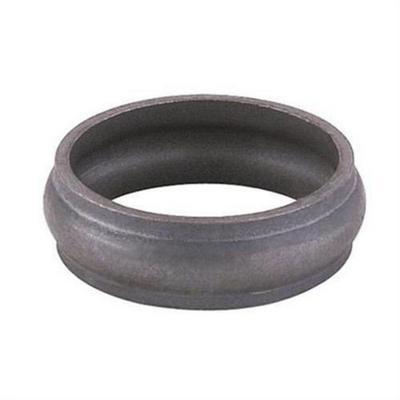

- Pinion seal, pinion nut and crush sleeve
- Ring gear bolts, silicone sealer and Loctite
- Gear marking compound for the contact pattern
Daytona pinion setup basics
A Daytona pinion sits differently from a standard pinion, so the shim stack and bearing preload are set for that specific geometry. The pinion depth is measured first, then the carrier preload, and the ring gear backlash is set last. Each step affects the next, so changing one value usually means rechecking the others.
Gear marking compound is the most useful check. Coat the ring gear teeth, rotate the assembly under light load and read the pattern. The contact should sit near the middle of the tooth, and any pattern near the edge needs a shim change before road use. Clean the housing and check the pinion seal surface before assembly, since a nick can cause leaks. Keep a record of each shim measurement for future service.
- Measure pinion depth before setting preload
- Check the contact pattern with marking compound
- Replace the crush sleeve during the install
Specifications
| Brand | G2 Axle and Gear |
|---|---|
| Part number | G/235-2011D |
| Axle location | Rear |
| Axle type | Ford 9 inches, 2.96-inch bore, Daytona pinion |
| Kit type | Master kit with bearings |
Vehicle fitment
Confirm the year, model and trim of your truck before ordering, so the 2.96-inch bore and Daytona pinion match your axle.
Installation notes
A Daytona pinion setup depends on the correct shim stack, so measure pinion depth carefully and confirm the contact pattern with the marking compound before road use.
What’s included

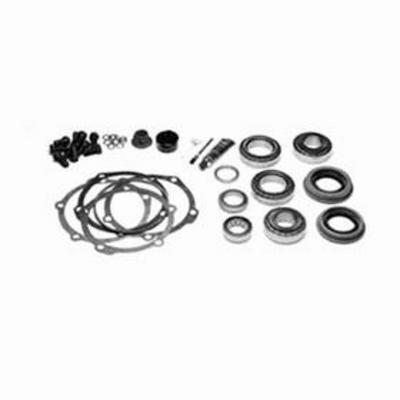

Bearings, shim kit, pinion nut, crush sleeve, pinion seal, ring gear bolts, sealer, Loctite and gear marking compound.
Not included: the ring and pinion gear set and the Daytona pinion gear itself.
