G2 Dana 60 Minor Ring and Pinion Installation Kit – 25-2034

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • For Dana 60 axles, rear and front
  • Minor kit: bearings are not included
  • Shims, crush sleeve, pinion nut and pinion seal
  • Part number 25-2034

Description

Overview

The G2 Axle and Gear 25-2034 is a minor ring and pinion installation kit for the Dana 60 rear and front axle.

Dana 60 axles in either position get the 25-2034 minor kit. G2 supplies a shim kit, pinion nut, crush sleeve, pinion seal, ring gear bolts, silicone sealer, Loctite and gear marking compound, minus bearings.

The 25-2034 is a minor kit for Dana 60 axles in either the rear or front position. It contains a shim kit, pinion nut, crush sleeve and seal, ring gear bolts, silicone sealer, Loctite and gear marking compound. Bearings are not included, so the 35-2034 master kit is the choice for a full parts refresh. Gears and any bearings must be chosen separately.

Key features

  • Minor kit for the Dana 60 axle (rear and front)
  • Meant for jobs that keep the existing bearings
  • Shim kit for setting pinion depth and carrier position
  • Pinion nut, crush sleeve and pinion seal
  • Ring gear bolts and silicone sealer
  • Loctite and gear marking compound

Checking Dana 60 bearings

A Dana 60 is a heavy housing, and its bearings carry significant loads through the gear set. Inspect them before reuse by turning each one slowly and feeling for grit or rough spots. Look at the rollers and races for pitting, color change or heat marks, and replace any that show wear.

Shimming a Dana 60 follows the same steps as a lighter axle: set pinion depth, set the carrier, then check backlash and the contact pattern. Tighten the pinion nut against the crush sleeve in small steps, checking preload as you go, and keep the housing clean so the new seal can seat.

  • Inspect bearings and races before reuse
  • Tighten the pinion nut in small steps
  • Keep the housing clean before resealing

Specifications

Brand G2 Axle and Gear
Part number 25-2034
UPC 631410095074
Kit type Minor kit
Axle location Rear and Front
Axle type Dana 60
Axle manufacturer Dana
Manufacturer part number G/225-2034

Vehicle fitment

This kit is made for Dana 60 axles, rear or front. Confirm fit for your vehicle’s axle type and year before ordering.

Confirm your vehicle’s axle type and year before ordering.

Installation notes

A Dana 60 reuses its bearings here, so check them for roughness. Use the shims for depth, tighten the nut against the crush sleeve and read the pattern.

Before starting the 25-2034 job on the Dana 60 axle, gather a dial indicator, a torque wrench and clean gear oil. Note the old pattern on the teeth, because the shims in the 25-2034 are the means of correcting the new one. The old nut and seal are replaced. Keep races paired with bearings.

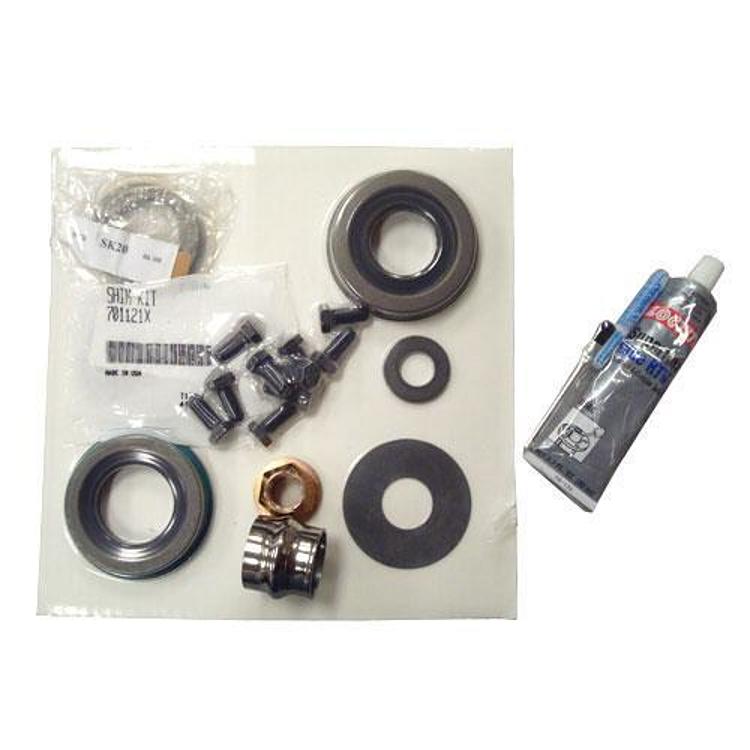

What’s included

  • Proper shim kit
  • Pinion nut
  • Crush sleeve
  • Pinion seal
  • Ring gear bolts
  • Silicone sealer
  • Loctite thread locker
  • Gear marking compound

Not included: bearings and gears; the 25-2034 is a minor kit for the Dana 60 axle.

SKU: G/225-2034 Category:

Specification

Shipping weight 3.00 lbs
Package dimensions 12.90 × 12.80 × 3.10 in
brands

Questions & Answers

What axle does the 25-2034 kit fit?

It is made for Dana 60 axles in the rear or front position. Confirm fit for your vehicle's axle type, year and model before ordering, since the kit is chosen by axle rather than by vehicle.

What is included in the 25-2034 kit?

The kit contains a shim kit, pinion nut, crush sleeve, pinion seal, ring gear bolts, silicone sealer, Loctite and gear marking compound.

Does the 25-2034 include bearings or gears?

No. Bearings are left out of this minor kit. The 35-2034 master kit is the bearing version, and the 25-2034 part number applies to the Dana 60 rear and front axle. Check the package contents against your installation before starting.

Can a Dana 60 use this kit in either position?

The kit is made for Dana 60 axles in either the rear or front position. Confirm the axle location and fit for your vehicle's axle type and year before ordering.

What makes the Dana 60 setup different from a lighter axle?

A heavier housing means the shim stack and preload need careful measurement. Use the same checks as any ring and pinion job, and keep fasteners torqued in small, even steps.
