G2 Dana 44 Minor Ring and Pinion Installation Kit – 25-2033

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Minor ring and pinion installation kit for Dana 44 axles, part number 25-2033
  • Includes pinion nut, pinion seal, crush sleeve, shims and ring gear bolts
  • For use when the existing bearings stay in place
  • Built for Dana 44 front and rear axles; check ring gear size before ordering

Description

Overview

The G2 Axle and Gear 25-2033 is a minor ring and pinion installation kit for Dana 44 axles, covering both front and rear applications. It is meant for an installer working on a vehicle that does not need the bearings changed, so the existing pinion and carrier bearings stay in place.

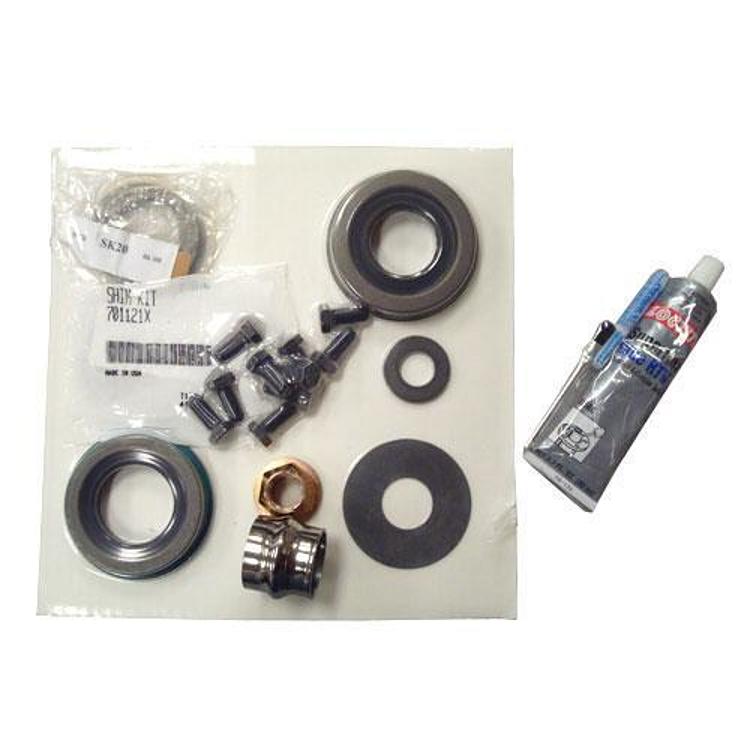

The kit supplies the parts that are often hard to find at parts counters: a shim kit, a replacement pinion nut, a crush sleeve, a pinion seal, ring gear bolts, silicone sealer and gear marking compound.

Key features

  • Minor kit for jobs where the bearings stay in place
  • Replacement pinion nut and crush sleeve
  • Pinion seal and pinion preload shims
  • Pinion and carrier shim sets
  • Ring gear bolts, thread locking compound, gear marking compound and silicone sealer

Setting up gear mesh

Setting ring and pinion mesh is a precision job. The pinion depth and the carrier preload are set with shims, and the tooth contact pattern shows whether the gears are seated correctly. Gear marking compound is spread on the ring gear teeth, the gears are turned under light load, and the pattern is read and adjusted with shims until it sits correctly on the drive side and the coast side.

Because the bearings stay in place in a minor install, their condition decides how well the new gears will hold. Check for roughness, play or pitting before starting. Clean the carrier and housing thoroughly, and use the sealer and thread locking compound as directed by the parts in the kit.

  • Inspect existing bearings for roughness or play
  • Use a fresh crush sleeve rather than reusing an old one
  • Read the tooth pattern before final torque
  • Break in the gears gradually after assembly

Specifications

Brand G2 Axle and Gear
Part number 25-2033
UPC 631410095067
Axle location Front and rear
Axle type Dana 44
Kit type Minor kit, no bearings
Included Pinion nut, pinion seal, crush sleeve, pinion preload shims, pinion shims, carrier shims, ring gear bolts, compounds and sealer

Vehicle fitment

This kit is for Dana 44 front and rear axles. Confirm the ring gear size and bearing setup on your vehicle before ordering.

Because no vehicle is named, confirm the axle type, ring gear size and bearing setup on your own vehicle.

Installation notes

Gear set setup depends on shim thickness and tooth contact, so use the gear marking compound to check the pattern and set the shims. Many installers have ring and pinion work set up by a professional.

What’s included

Pinion nut, pinion seal, crush sleeve, pinion preload shims, pinion shims, carrier shims, ring gear bolts, thread locking compound, gear marking compound and silicone sealer.

Specification

Shipping weight 3.00 lbs
Package dimensions 12.90 × 12.80 × 3.10 in
brands

Questions & Answers

Which vehicles does the G2 25-2033 fit?

The kit is for Dana 44 front and rear axles. Check the axle type, ring gear size and bearing setup on your vehicle before ordering.

Does this kit include bearings?

No. It is a minor kit for a job where the existing bearings stay in place. Master kits with bearings are separate part numbers.

Is a crush sleeve included?

Yes. The kit includes a crush sleeve, along with a pinion nut, pinion seal and ring gear bolts. The bearings are not part of this minor kit, so the existing ones stay in use.

What compounds are in the kit?

It includes thread locking compound, gear marking compound and silicone sealer. The gear marking compound is used to check the tooth pattern while setting the shims.

Can the old crush sleeve be reused?

No. A crush sleeve is designed to compress when the pinion nut is tightened, so it should be replaced. Reusing an old sleeve can change preload and lead to noise or early wear in the gear set.
