G2 Dana 30 Minor Ring and Pinion Installation Kit – 25-2032

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • For the standard Dana 30 front axle
  • Minor kit: bearings are not included
  • Shims, crush sleeve, pinion nut and pinion seal
  • Part number 25-2032

Description

Overview

The G2 Axle and Gear 25-2032 is a minor ring and pinion installation kit for the Dana 30 Standard front axle.

The standard Dana 30 front axle is handled by the 25-2032. In it you will find a shim kit, pinion nut, crush sleeve, pinion seal, ring gear bolts, silicone sealer, Loctite and marking compound, with no bearings.

The 25-2032 serves the standard front Dana 30. It includes a shim kit, pinion nut, crush sleeve and pinion seal, ring gear bolts, silicone sealer, Loctite and gear marking compound, enough to set the gears again without new bearings. The master version, 35-2032, adds Timken bearings for builders who want them. Owners of a Dana 30 TJ front axle should use 25-2031, which is a separate kit for the TJ type.

Key features

  • Minor kit for the Dana 30 Standard axle (front)
  • Meant for jobs that keep the existing bearings
  • Shim kit for setting pinion depth and carrier position
  • Pinion nut, crush sleeve and pinion seal
  • Ring gear bolts and silicone sealer
  • Loctite and gear marking compound

Standard versus TJ housings

The standard Dana 30 front and the TJ type look similar at a glance, but the two housings are set up differently. Confirm the housing type before ordering, since the matching kit is different for each. A quick look at the housing shape and the axle tag usually settles it.

Pinion depth and carrier position are set with shims, so the kit should match the exact housing. Check the tooth pattern with marking compound, then adjust in small steps. Patterns that run toward the toe or heel show which direction the shims need to move.

Front axle work also brings the steering and axle joints into view. Look at the joints, boots and seals while the axle is apart, and replace anything worn before the gears go back in.

Specifications

Brand G2 Axle and Gear
Part number 25-2032
UPC 631410095050
Kit type Minor kit
Axle location Front
Axle type Dana 30 Standard
Axle manufacturer Dana
Manufacturer part number G/225-2032

Vehicle fitment

It is a minor kit for the front standard Dana 30 axle. The TJ type uses 25-2031.

Confirm your vehicle’s axle type and year before ordering.

Installation notes

Check that your housing is the standard type instead of the TJ type. After that, shim for depth and look at the tooth pattern.

Before starting the 25-2032 job on the Dana 30 Standard axle, gather a dial indicator, a torque wrench and clean gear oil. Note the old pattern on the teeth, because the shims in the 25-2032 are the means of correcting the new one. The old nut and seal are replaced. Keep races paired with bearings.

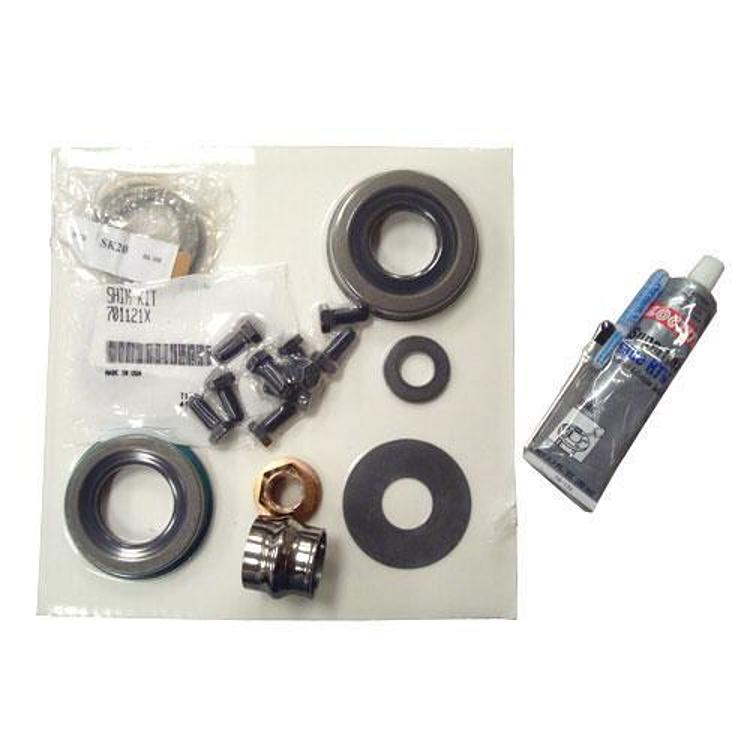

What’s included

  • Proper shim kit
  • Pinion nut
  • Crush sleeve
  • Pinion seal
  • Ring gear bolts
  • Silicone sealer
  • Loctite thread locker
  • Gear marking compound

Not included: bearings and gears; the 25-2032 is a minor kit for the Dana 30 Standard axle.

SKU: G/225-2032 Category:

Specification

Shipping weight 3.00 lbs
Package dimensions 12.90 × 12.80 × 3.10 in
brands

Questions & Answers

What axle does the 25-2032 kit fit?

It fits the front standard Dana 30 axle. The TJ type uses kit 25-2031, so match the 25-2032 to the axle before ordering.

What is included in the 25-2032 kit?

Contents are a proper shim kit, pinion nut, crush sleeve, pinion seal, ring gear bolts, silicone sealer, Loctite and gear marking compound.

Does the 25-2032 include bearings or gears?

No. Bearings are not included in the minor kit. The master version, 35-2032, is the choice for builds that want Timken bearings too.

Can front and rear gear jobs share tools?

Most gear-set tools are the same across axles, but the carrier and shim sizes differ. Keep front and rear parts sorted, and do not mix shim packs between housings.

How do I tell when a pinion seal should be replaced?

Replace the pinion seal any time the pinion nut is removed, since the seal lip rides on the yoke and wears over time. Oil around the pinion flange or a rough yoke surface are signs of leakage.
